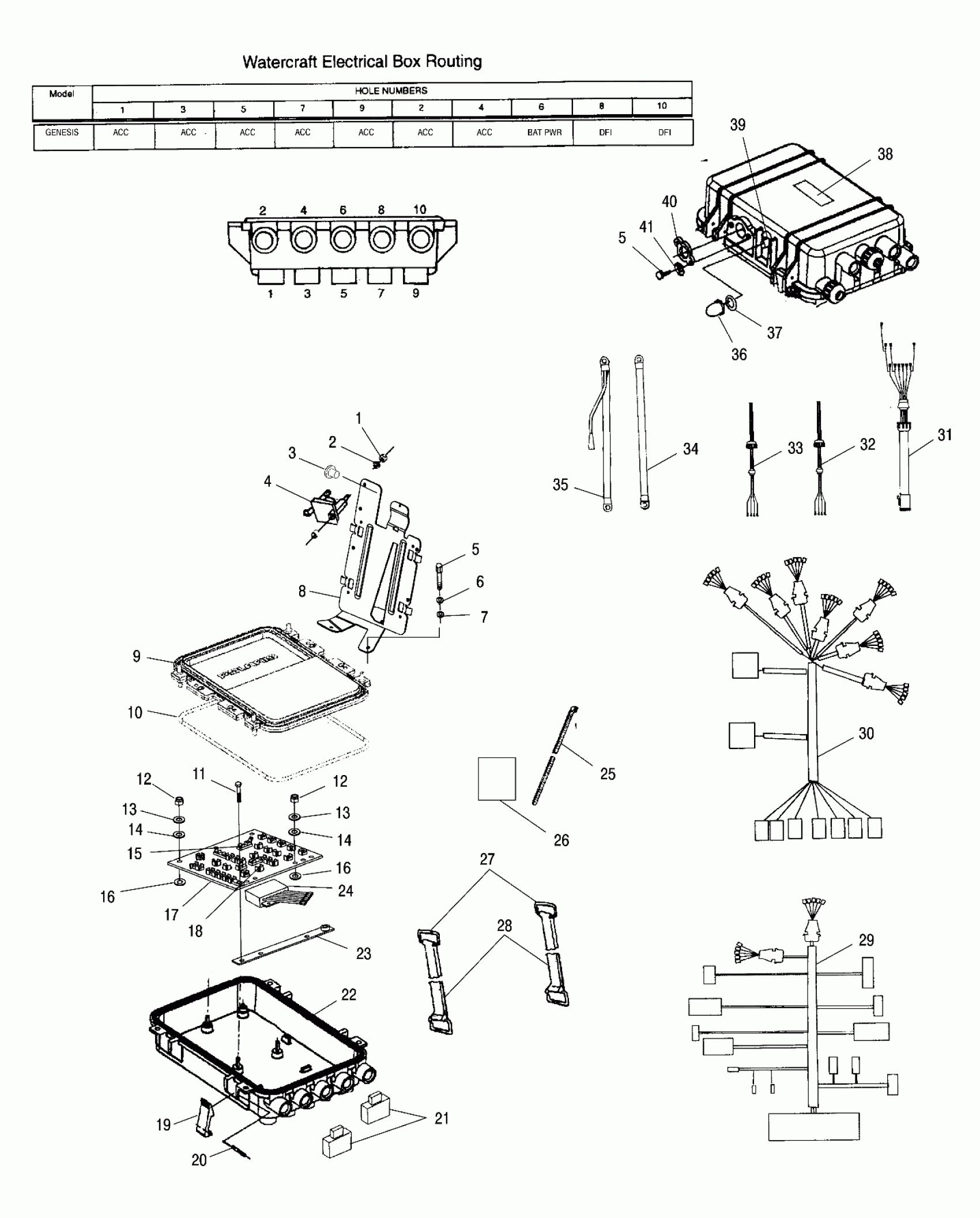

Polaris GENESIS FFI - W005098D ELECTRICAL BOX - W005098D (4955785578B013) Diagram

#

Description
Price

1

Nut

7546705

$4.76

2

Washer

7555882

$2.06

3

Bumper, Rubber

5411821

$1.13

4

Solenoid, Starter

4010858

Unavailable

5

Screw

7517830

$2.70

5

Screw

7517830

$2.70

6

Washer, Lock

7555838

Unavailable

7

Washer, Flat

7555839

Unavailable

8

Mount, Ignition Box

1820749

$83.46

9

Cover, Electrical Box

5433119

Unavailable

10

Seal, Plastic

5432569

Unavailable

11

Screw

7512042

Unavailable

12

Nut

7547036

$1.59

12

Nut

7547036

$1.59

13

Washer, Lock

7552615

Unavailable

13

Washer, Lock

7552615

Unavailable

14

Washer, Flat

7555837

$1.59

14

Washer, Flat

7555837

$1.59

15

Fuse, 1/4 Amp

4060111

Unavailable

16

Washer, Dish, Rubber

7555870

$0.40

16

Washer, Dish, Rubber

7555870

$0.40

17

Asm., Terminal Board

2410155

Unavailable

18

Fuse, 3 Amp

4060161

Unavailable

19

Latch

5432503

$102.38

20

Pin, Latch

5333544

$10.46

21

Breaker, Circuit, 15 Amp

2434011

$20.48

22

Asm., Electrical Box Accessory (Incl. 9,10,19,20)

2631997

$56.99

23

Plate, Bottom

5244372

$11.51

24

Cut-Off, Start/Stop

4010346

Unavailable

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

Anchor, Cable Tie

7080464

Unavailable

27

D-Hook

5224472

Unavailable

28

Strap, Battery Holddown

5411456

Unavailable

29

Asm., Harness

2460844

Unavailable

30

Harness, Wire

2460805

Unavailable

31

Harness, RVS

2460796

Unavailable

32

Wire, Power

2460803

Unavailable

33

Wire, Power

2460804

Unavailable

34

Cable, Solenoid/Starter

4010237

Unavailable

35

Cable, Battery/Solenoid

4010288

$53.17

36

Boot, Threaded

7080461

$13.99

37

O-Ring

5411491

$1.03

38

Decal - High Voltage Warning

7073713

Unavailable

39

Decal - "Reset Electrical System"

7077691

Unavailable

40

Plate, Stator

5432574

$6.59

41

Washer, Flat

7555836

$3.99
