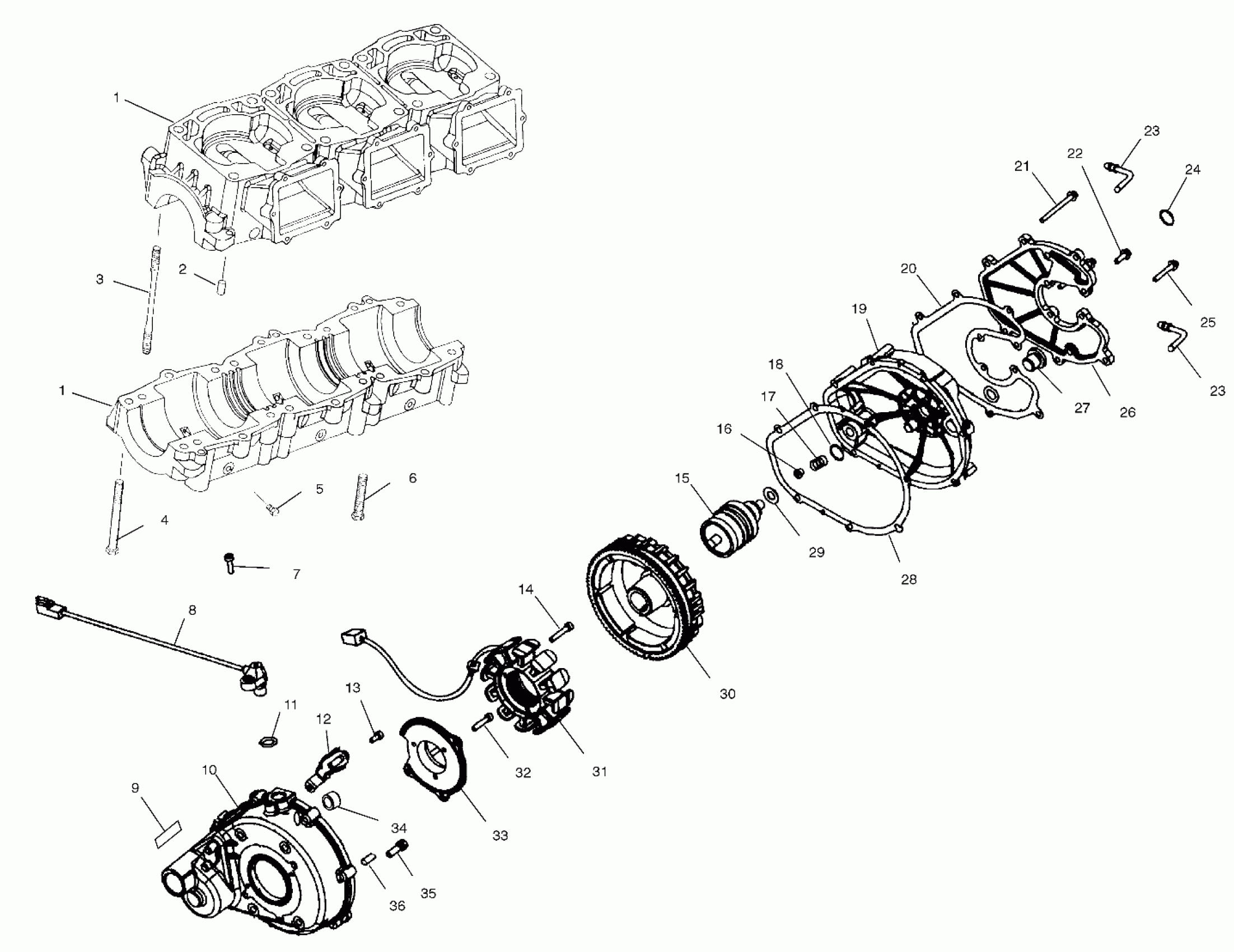

Polaris GENESIS FFI - W005098D CRANKCASE - W005098I (4955785578C003) Diagram

#

Description
Price

1

CRANKCASE 1200 PWC,KIT (Incl. 6-2)

2201562

$1,019.99

1

CRANKCASE 1200 PWC,KIT (Incl. 6-2)

2201562

$1,019.99

2

PIN-DOWEL,M8 X 16 SS

7663001

$11.11

3

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

4

BOLT, S.S

7516913

Unavailable

5

PLUG Substituted by 7052311

7051529

Unavailable

6

SCREW Substituted by 7516720

7517628

Unavailable

7

SCREW,(10)

7517619

$1.75

8

SENSOR-CRANK POSITION,DFI

2410128

Unavailable

9

DESC NOT_AVAILABLE

7078593

Unavailable

10

FLYWHEEL,HOUSING,DFI,MOD (Incl. 34,36)

1202023

Unavailable

11

O-Ring

5411564

$4.03

12

CLAMP-STATOR WIRES

5243231

Unavailable

13

SCREW,(10)

7517431

$5.56

14

Screw

7517602

Unavailable

15

BENDIX

4060119

$292.59

16

BUSHING,PLASTIC

3574214

$5.00

17

Spring

7041457

Unavailable

18

Bushing

3569806

Unavailable

19

COVER,FLYWHEEL,ASM,DFI

1201911

$111.11

20

GASKET,WATER JACKET,COVER

5812011

Unavailable

21

Screw

7517662

Unavailable

22

BOLT(10)

7516809

Unavailable

23

FITTING,1/4"HOSE

7052156

$30.00

23

FITTING,1/4"HOSE

7052156

$30.00

24

O-Ring

5411293

Unavailable

25

BOLT(10)

7516806

Unavailable

26

COVER-WATER JACKET,DFI

5630981

$98.41

27

PLUG-TIMING HOLE,3/4X16,NYLON

5433130

$24.27

28

GASKET,FLYWHEEL COVER

5811550

Unavailable

29

WASHER(10)

7555908

$3.17

30

FLYWHEEL-3 CYL PWC,DFI

4010168

Unavailable

31

STATOR,IGN,DFI

4010320

$464.99

32

SCR,M6X100X25,SOC CP LH Substituted by 7517620

7517788

$2.54

33

PLATE,STATOR MNT,OMC,DFI

5631069

Unavailable

34

Bushing

3569805

$3.17

35

BOLT(10)

7516723

Unavailable

36

Pin, Dowel

7663002

$4.76
