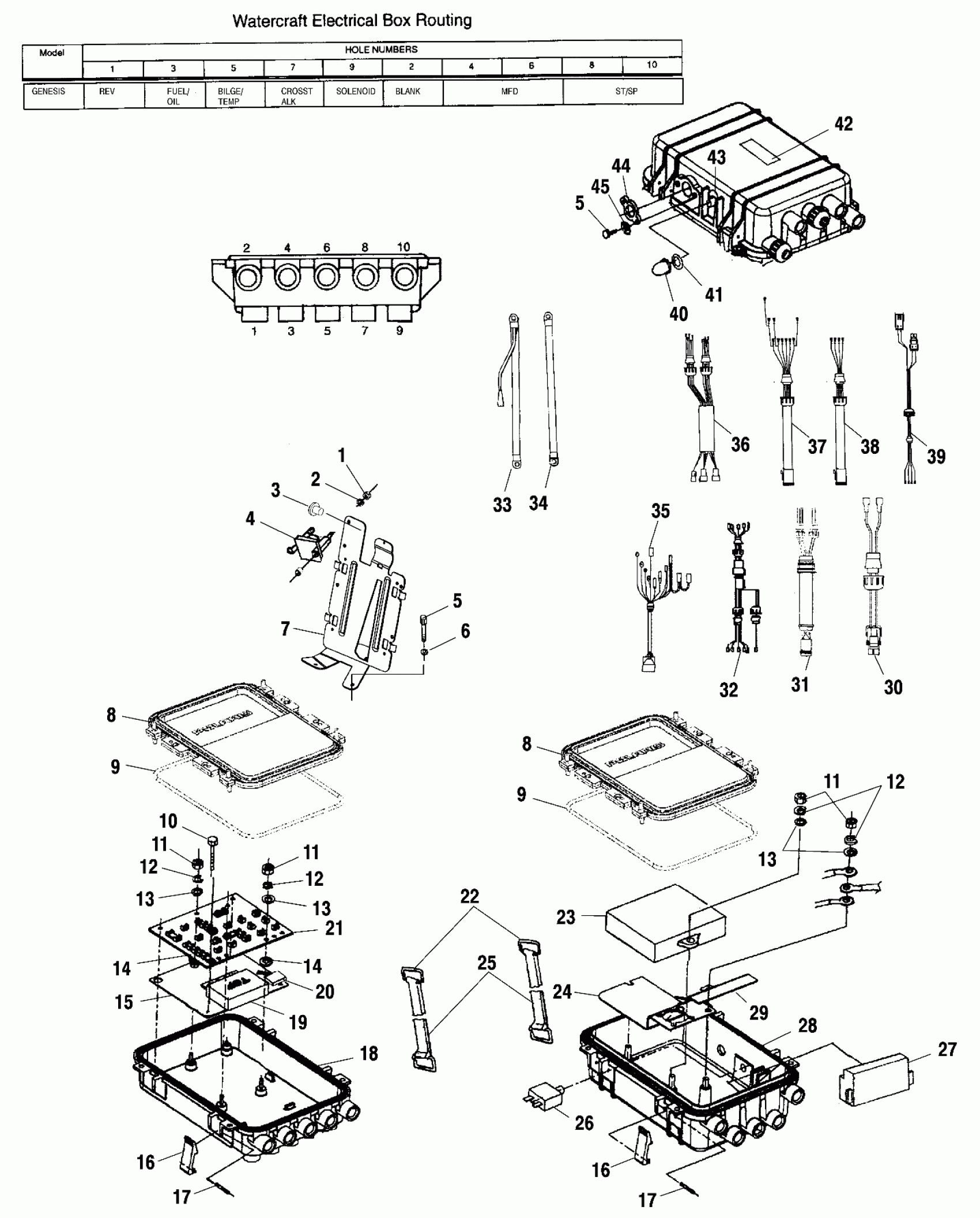

Polaris GENESIS - B995095 ELECTRICAL BOX - I995095 (4951455145B013) Diagram

#

Description
Price

1

NUT, 6 MM.,S.S.(10)

7546705

$4.76

2

WASHER(10)

7555882

$2.06

3

BUMPER-RUBBER LTI 02592

5411821

$1.13

4

Solenoid, Starter (See Magneto Pg. C9, Ref. 15)

----

Unavailable

5

BOLT,SS,(10)

7515113

Unavailable

5

BOLT,SS,(10)

7515113

Unavailable

6

WASHER, LOCK, S.S.(10)

7555838

Unavailable

7

MOUNT,IGNITION BOX/EMM

1820749

$83.46

8

COVER-ELECTRICAL BOX Substituted by 2631998

5433119

Unavailable

8

COVER-ELECTRICAL BOX Substituted by 2631998

5433119

Unavailable

9

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

9

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

10

SCREW,S.S.(10)

7512072

$0.40

11

NUT, SS.(10)

7547036

$1.59

11

NUT, SS.(10)

7547036

$1.59

11

NUT, SS.(10)

7547036

$1.59

12

WASHER, LOCK(10)

7552615

Unavailable

12

WASHER, LOCK(10)

7552615

Unavailable

12

WASHER, LOCK(10)

7552615

Unavailable

13

WASHER, FLAT, S.S.(10)

7555837

$1.59

13

WASHER, FLAT, S.S.(10)

7555837

$1.59

13

WASHER, FLAT, S.S.(10)

7555837

$1.59

14

WASHER,RUBBER(10)

7555870

$0.40

14

WASHER,RUBBER(10)

7555870

$0.40

15

PLATE,BTM,E-BOX

5211761

$9.05

16

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

16

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

17

PIN,LATCH,ELEC.BOX

5333544

$10.46

17

PIN,LATCH,ELEC.BOX

5333544

$10.46

18

ELECTRICAL BOX ACCESSORY (Incl. 8,9,16,17)

2631997

$56.99

19

REGULATOR,START/STOP,LR-502

4010240

$65.87

20

REGULATOR-RECT/CUTOFF-LR31-2

4010302

Unavailable

21

BOARD,TERMINAL MFI

2410148

$31.35

22

HOOK,'D',SST/SS,(10)

5224472

Unavailable

23

Controller (See Magneto Pg. C9, Ref. 13)

----

Unavailable

24

PLATE,TOP,E-BOX

5211760

$8.17

25

STRAP,BATT.HOLD-DOWN

5411456

Unavailable

26

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

27

Coil, Ignition, Triple (See Magneto Pg. C9, Ref. 14)

----

Unavailable

28

ELECTRICAL BOX,IGNITION,ASM. (Incl. 8,9,16,17)

2632137

Unavailable

29

BRKT,COIL/SOLENOID,.078 THK

5243538

Unavailable

30

HARNESS-BILGE PUMP,CONNECTOR

2460753

$20.48

31

HARNESS-WIRE,MFI,10W 12PN

2460765

$69.84

32

HARNESS-CROSS TALK

2460766

$77.78

33

CABLE-BATTERY SOLONOID 50 INCH

4010289

Unavailable

34

CABLE-SOLENOID/STARTER

4010237

Unavailable

35

HARNESS-9 WIRE STATOR,3CYL Substituted by 2460875

2460717

$81.75

36

HARNESS-WIRE,STOP SWITCH

2460697

Unavailable

37

HARNESS-RVS 12IN-6W [No Longer Available]

2460796

Unavailable

38

HARNESS-RVS 53IN-6W [No Longer Available]

2460795

Unavailable

39

HARNESS-WIRE,OIL/FUEL 58 INCH

2460764

$29.52

40

BOOT,THREADED,RED

7080461

$13.99

41

O-Ring

5411491

$1.03

42

DECAL,WARN,HI.VOLT.

7073713

Unavailable

43

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

44

PLATE,STATOR,1 HOLE

5432574

$6.59

45

WASHER(10)

7555836

$3.99
