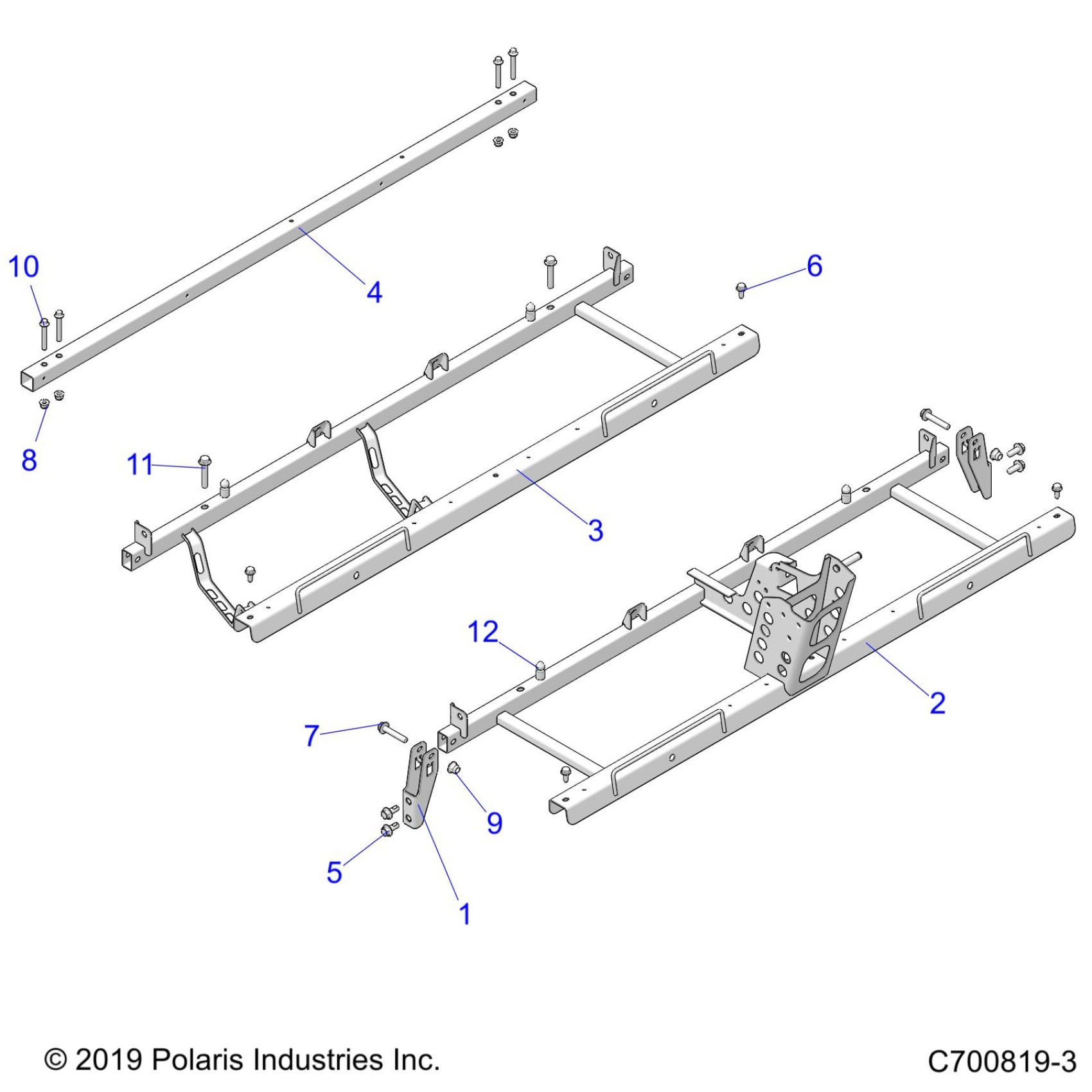

Polaris GENERAL XP4 SPORT 1000 HUNTER (R01) - G22GME99AL/BL CHASSIS, SEAT SUPPORTS - G22GME99AL/BL (C700819-3) Diagram

#

Description

Price

1

BRKT-SEAT SUPPORT,CREW,E-COAT

1026646-329

$43.99

2

WELD-SEAT BASE,FRONT,E-COAT

1022146-329

$311.99

3

WELD-SEAT BASE,REAR.E-COAT

1022147-329

$219.99

3

WELD-SEAT BASE,REAR.E-COAT

1022147-329

$219.99

4

ASM-TUBE,TOP FRAME

1029761

$87.99

5

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

6

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

7

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

11

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

12

LATCH, PLUNGER, SEAT

5632848

$13.59
