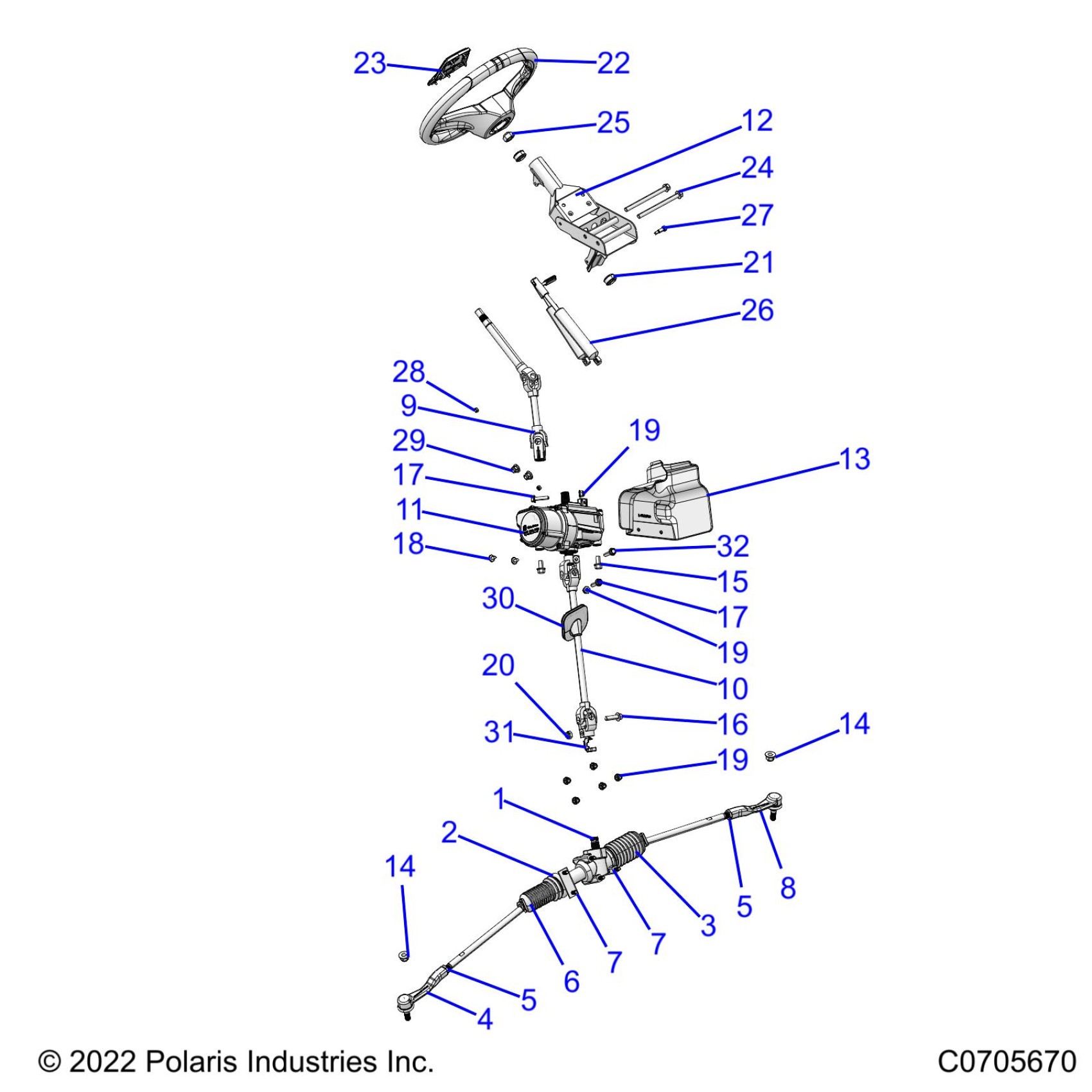

Polaris GENERAL XP4 1000 TRAILHEAD LE (R01) - G22GMK99AP/BP STEERING, STEERING ASM. - G22GMK99AP/BP (C0705670) Diagram

#

Description
Price

1

ASM-GEAR BOX,STEERING,2.0T [INCL. 2-8]

1824924

$588.99

2

BELLOWS KIT [INCL. 6-7]

5417106

$28.32

3

BELLOWS KIT [INCL. 6-7]

5417106

$28.32

4

ROD-END,TAPERED,PROFILED,RH

7061229

$44.51

5

LOCK NUT KIT

2208131

$23.81

5

LOCK NUT KIT

2208131

$23.81

6

BELLOWS CLAMP, SMALL

7082150

$6.46

7

CLAMP, LARGE, BELLOWS

7080979

$5.56

7

CLAMP, LARGE, BELLOWS

7080979

$5.56

8

ROD-END,TAPERED,PROFILED,LH

7061228

$44.51

9

SHAFT-STEERING,UPPER,EPS

1824438

$208.16

10

SHAFT-STEERING LWR,EPS

1824931

$159.75

11

ASM-POWER STEERING,RZR,1.5T

2414874

$2,199.99

12

ASM-TILT,STEERING,RVTD,M10,BLK

1824420-458

$189.99

13

COVER-EPS

5452850

$32.37

14

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

14

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

15

BOLT-M10X1.25X20,HXFLG-OLV D

7518558

$3.97

16

SCR-HXFL-M10X1.5X35 8.8 ZPC

7518644

$4.76

17

SCR-HXFL-M8X1.25X35 8.8 ZODv

7519052

$1.59

17

SCR-HXFL-M8X1.25X35 8.8 ZODv

7519052

$1.59

18

SCR-M6X1X16 TR/TX-M

7518936

$3.97

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

20

NUT-NY INS,M10X1.5,HEX,ZINC,YW

7547385

$1.19

21

BUSHING-STEERING

7556675

$15.19

22

WHEEL, STEERING

1824014

$179.99

23

CAP-STEERING WHEEL,DUSK

5450255-747

$24.27

24

BOLT-M10X1.25X130,HXFLG-OLIVED

7518665

$13.49

25

NUT-HEX-M16X2, 8 ZC NYL

7547506

$4.99

26

ASM-SHOCK,OIL LOCKING,MACH

7044098

$113.99

27

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.14

28

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

29

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

30

GROMMET-STEERING

5415579

$8.73

31

EPS SHAFT ASSEMBLY SLEEVE

5454206

$6.46

32

SCR-M8X1.25X40 10.9 HX/FL ZOD �

7518954

$5.56
