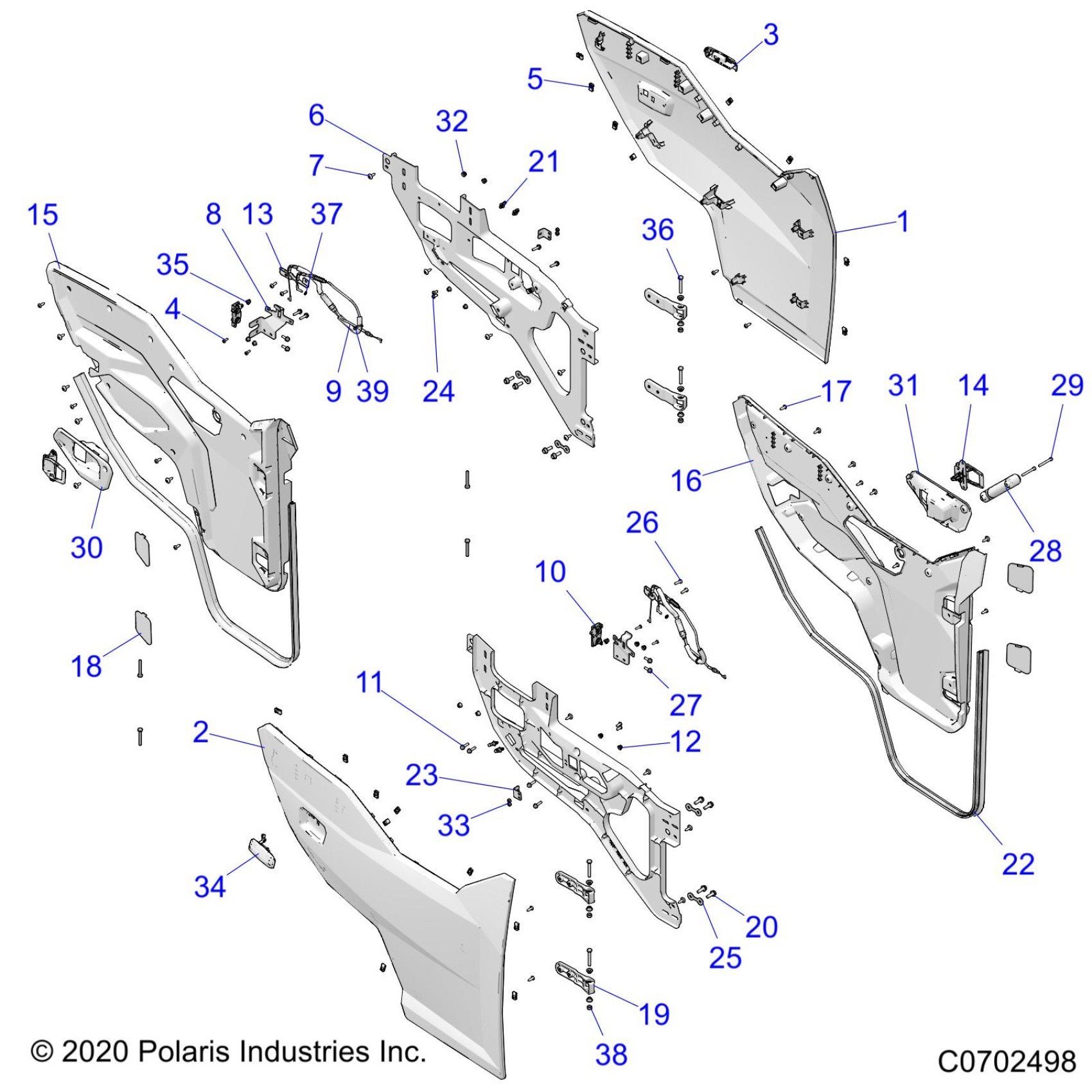

Polaris GENERAL XP4 1000 TRAILHEAD LE (R01) - G22GMK99AP/BP BODY, DOORS, FRONT - G22GMK99AP/BP (C0702498) Diagram

#

Description
Price

1

PANEL-DOOR,OUT,FRT,LH,B.SLTMSK

5454342-826

Unavailable

2

PANEL-DOOR,OUT,FRT,RH,B.SLTMSK

5454343-826

Unavailable

3

ASM-HANDLE,DOOR,ALUM,LH,OUT

7082353

$27.99

4

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

5

CLIP-U SPEED NUT

7081305

$1.99

6

FRAME-DOOR,CAST,LH

5639249

Unavailable

6

FRAME-DOOR,CAST,RH

5639250

Unavailable

7

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

8

BRKT-DOOR HDL,LATCH,MNT,LH,BLK

5264583-458

$27.99

8

BRKT-DOOR HDL,LATCH,MNT,RH,BLK

5264584-458

$27.99

9

CABLE-DOOR,FRONT

7082357

Unavailable

10

ASM-LATCH,RTRY,2 STAGE,LH

7082459

$47.99

10

ASM-LATCH,RTRY,2 STAGE,RH

7082460

$47.99

11

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

12

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

13

ASM-WELD,DUAL CBL RET,LH,ECOAT

1023916-329

Unavailable

13

ASM-WELD,DUAL CBL RET,RH,ECOAT

1023917-329

Unavailable

14

ASM-HANDLE,DOOR INNER

7082216

$39.99

15

PANEL-DOOR,INNER,FRONT,LH,BLK

5454346-070

$131.99

16

PANEL-DOOR,INNER,FRONT,RH,BLK

5454347-070

$131.99

17

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

18

COVER-DOOR HINGE MOUNT

5452517-070

$5.59

19

HINGE-DOOR CAST,BLK

5633642-329

$39.99

20

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

21

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

22

SEAL-DOOR

5455610

$55.99

23

BRKT-CBL RET,90 DEG,ECOAT

5265518-329

$31.99

24

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

25

BRKT-DOOR CLAMP ECOAT

5262743-329

$11.19

26

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

27

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.99

28

DOOR-GRAB HANDLE,RH,BLK

5452904-070

$31.99

29

SCR-SH-M6X1.0X50 8.8 RIE

7520482

$3.99

30

TRIM-DOOR,INNER,LH,BLK

5452290-070

$27.99

31

TRIM-DOOR,INNER,RH,BLK

5452291-070

$27.99

32

NUT-M6 FLANGE,NYLOC

7547274

$1.49

33

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

34

ASM-HANDLE,DOOR,ALUM,RH,OUT

7082354

$27.99

35

CLIP-DOOR LATCH

5454637

$4.99

36

SCR-HH-M8X1.25X55 8.8 ZOD

7519781

$4.79

37

RETAINER-CABLE, STEEL

7710921

$3.19

38

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39

39

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
