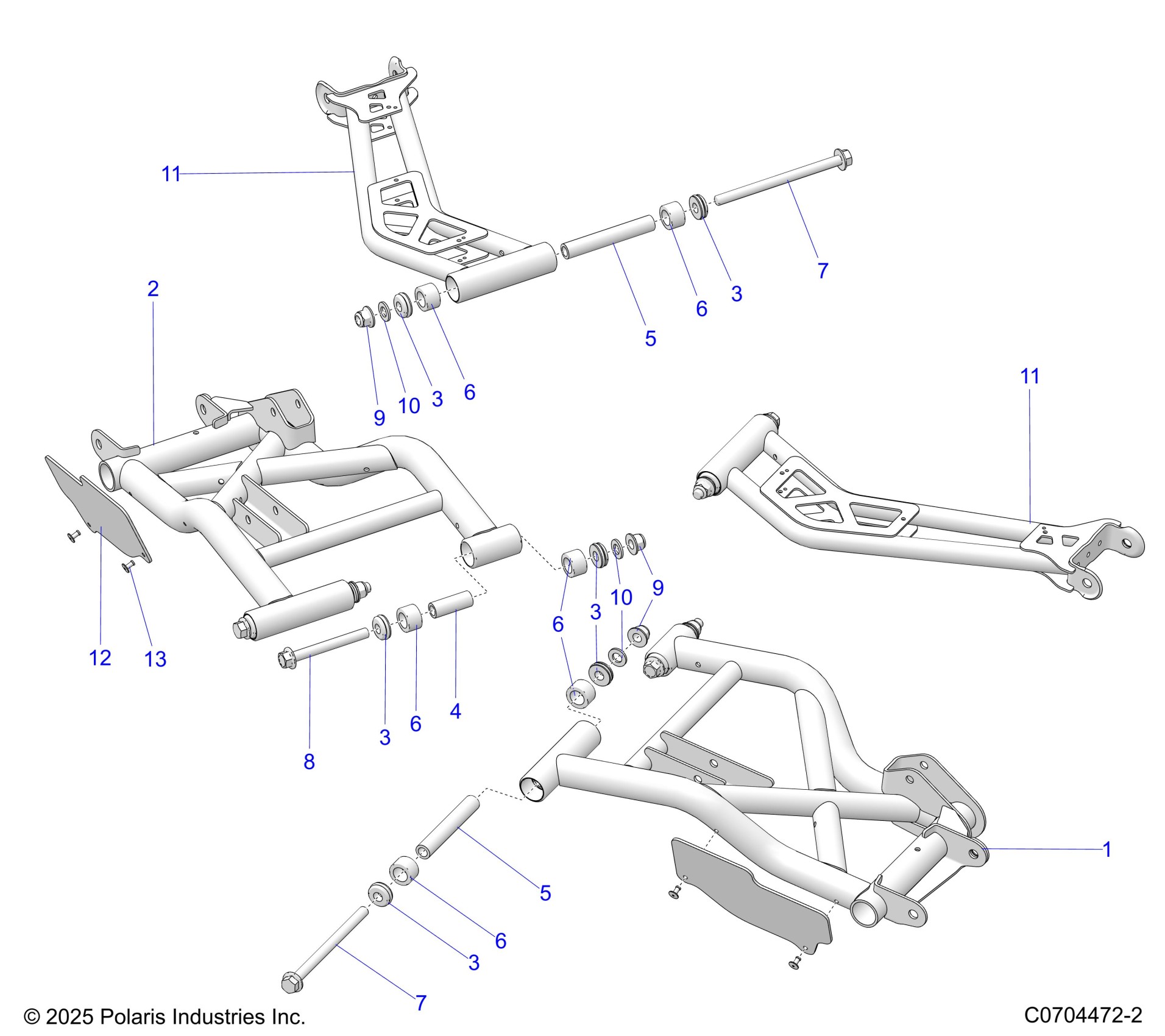

Polaris GENERAL XP4 1000 PREMIUM (R01) - G26GMP99AN/AJ/BN/BJ SUSPENSION, REAR CONTROL ARMS Diagram

#

Description
Price

1

WELD-CNTRL,ARM,RR,LW,LH,64,BLK

1024922-458

$147.99

2

WELD-CNTRL,ARM,RR,LW,RH,64,BLK

1024923-458

$147.99

3

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

3

CAP-PIVOT SEAL,M12

5139992

$3.99

3

O-RING,2-213

5415654

$1.49

3

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

3

CAP-PIVOT SEAL,M12

5139992

$3.99

3

O-RING,2-213

5415654

$1.49

3

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

3

CAP-PIVOT SEAL,M12

5139992

$3.99

3

O-RING,2-213

5415654

$1.49

3

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

3

CAP-PIVOT SEAL,M12

5139992

$3.99

3

O-RING,2-213

5415654

$1.49

3

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

3

CAP-PIVOT SEAL,M12

5139992

$3.99

3

O-RING,2-213

5415654

$1.49

4

SHAFT-PIVOT,SHORT,M12

5140555

$8.79

5

SHAFT-PIVOT, LONG, M12

5139991

$8.79

5

SHAFT-PIVOT, LONG, M12

5139991

$8.79

6

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

6

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

6

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

6

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

6

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

7

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$11.19

7

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$11.19

8

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

9

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

9

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

10

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

10

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

11

WELD-A-ARM,REAR,UPR,64,BLK

1024921-458

$99.99

11

WELD-A-ARM,REAR,UPR,64,BLK

1024921-458

$99.99

12

SHIELD-SHOCK,ROD

5456405

$19.99

13

RIVET-POP 3/16 (.376-.500) AL-LFB

7621460

$1.49
