- GENERAL XP4 1000 PREMIUM (R01) - G26GMP99AN/AJ/BN/BJ
SUSPENSION, REAR CARRIER

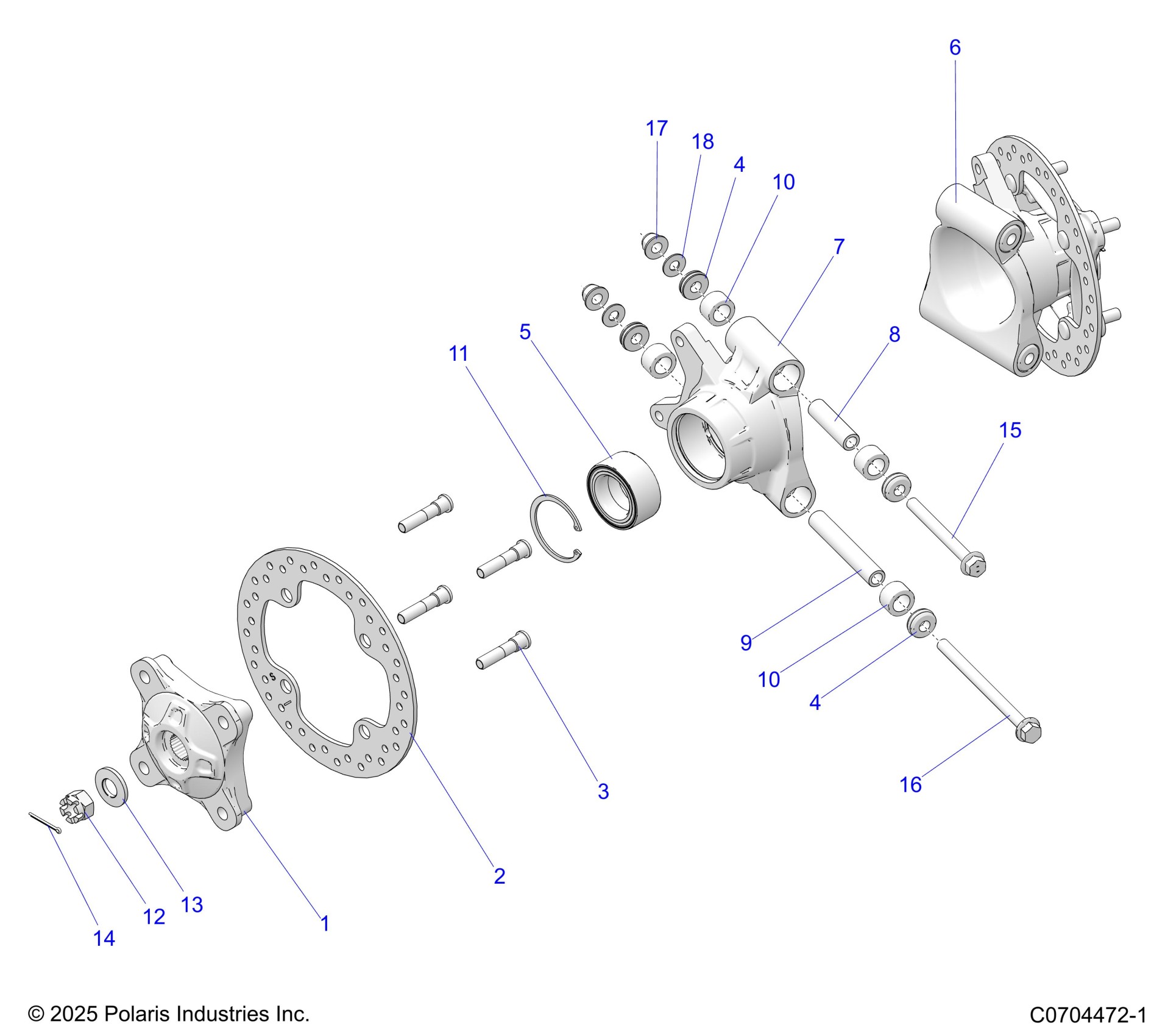

Polaris GENERAL XP4 1000 PREMIUM (R01) - G26GMP99AN/AJ/BN/BJ SUSPENSION, REAR CARRIER Diagram
#
Description
Price
1
HUB-WHEEL,MACH,BLK
5142020-067
$111.99
2
DISC, BRAKE
5257196
$63.99
3
STUD-WHEEL,M12-1.5
7519792
$5.59
4
ASM-PIVOT CAP, SEALED, M12
1543612
$5.59
4
CAP-PIVOT SEAL,M12
5139992
$3.99
4
O-RING,2-213
5415654
$1.49
4
ASM-PIVOT CAP, SEALED, M12
1543612
$5.59
4
CAP-PIVOT SEAL,M12
5139992
$3.99
4
O-RING,2-213
5415654
$1.49
5
BEARING-BALL,SEALED,44X72X33.1
3514924
$39.99
5
BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]
3515090
$63.99
6
CARRIER-BEARING,WHEEL,LH
5142720
$99.99
7
CARRIER-BEARING,WHEEL,RH
5142721
$99.99
8
TUBE-PIVOT,LONG,SEALED,M12
5341799
$27.99
9
SHAFT-PIVOT, LONG, M12
5139991
$8.79
10
BUSHING-STANDARD, SUSP, M12
5452271
$3.19
10
BUSHING-STANDARD, SUSP, M12
5452271
$3.19
11
RING-RETAINING,2.875,INTERNAL
7710440
$10.39
12
NUT-M18X1.5,CASTLE,ZINC/YELLOW
7547337
$1.99
13
WSHR-AXLE,M18,42X4.5
7557134
$7.99
14
PIN-COTTER 1/8X1 1/2-Y
7661404
$4.79
15
SCR-HXFL-M12X1.5X120 10.9 ZFB
7521137
$7.19
16
SCR-HXFL-M12X1.5X170 10.9 ZOD
7520294
$11.19
17
NUT-M12X1.5, FLG, NYLOC-OLIVE D
7547334
$4.79
18
WSHR-13.0X24.0X2.5 ZPC
7556287
$7.19
