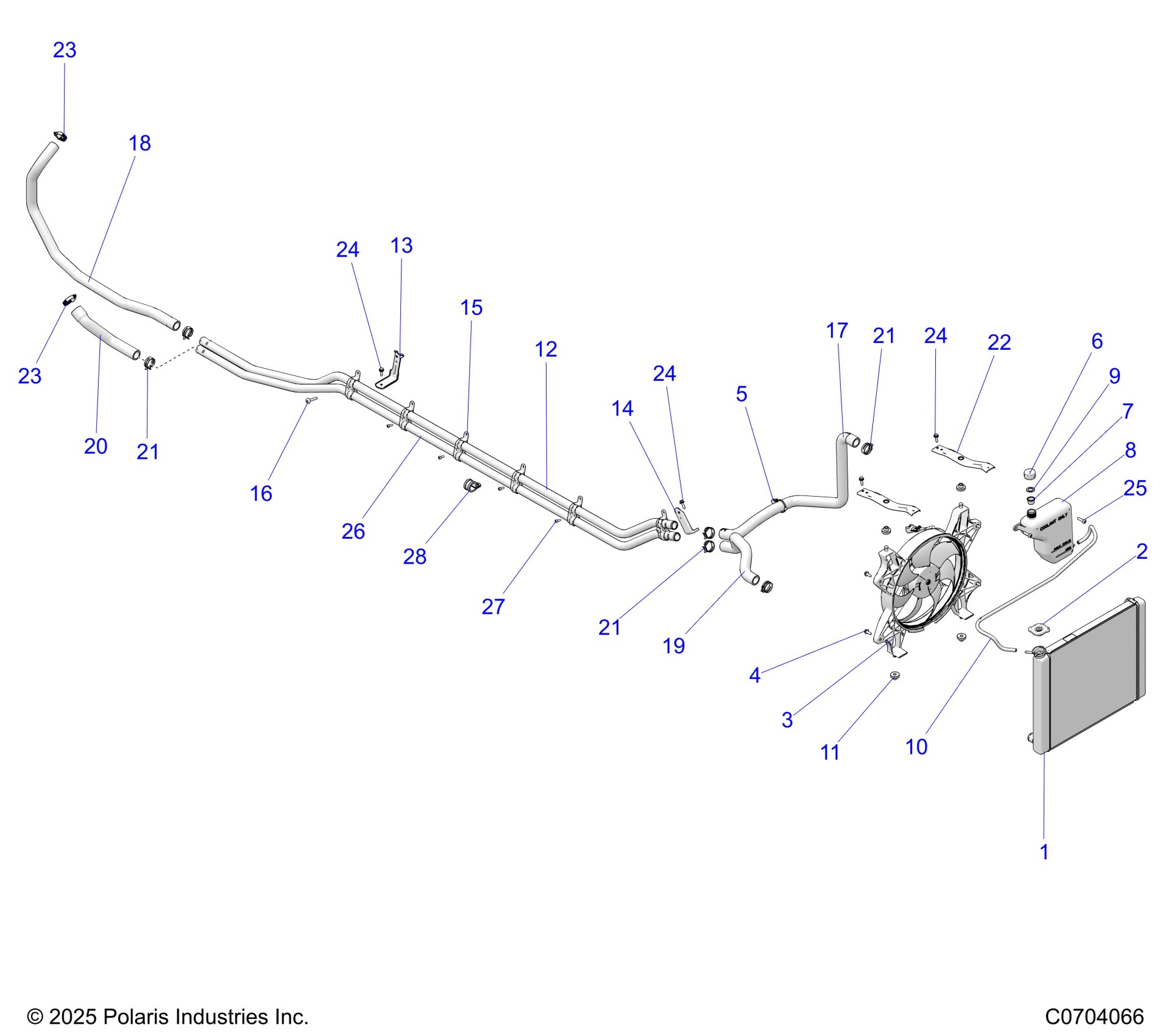

Polaris GENERAL XP4 1000 PREMIUM (R01) - G26GMP99AN/AJ/BN/BJ ENGINE, COOLING SYSTEM Diagram

#

Description
Price

1

ASM., RADIATOR [INCLUDES 1-4]

1241123

Unavailable

1

ASM., RADIATOR, CORE

1241135

$460.19

2

CAP

1240694

$39.99

3

FAN, ASM.

2413044

$315.99

4

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

6

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

TANK-SURGE

5439202

$91.99

9

GASKET-OVERFLOW CAP

5810279

$2.41

10

FUEL LINE-95 CENTIMETERS

8450003-95

Unavailable

11

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

12

TUBE-COOLANT,1"

5141613

$63.99

13

BRACKET, COOLANT TUBE, BLACK

5259433-329

$27.99

14

BRACKET, COOLANT TUBE, BLACK

5260766-329

$27.99

15

BRACKET-COOLANT TUBE

5451221

$8.79

16

SCR-TXTH-M6X1.0X50, 8.8, ZPB

7519001

$3.99

17

HOSE, UPPER, RADIATOR

5417056

$43.99

18

HOSE, ENGINE OUTLET, REAR

5415451

$43.99

19

HOSE, LOWER, RADIATOR, LONG

5414532

$43.99

20

HOSE-ENGINE INLET

5415452

$27.99

21

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

21

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

21

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

22

BRACKET, UPPER RADIATOR MOUNT, BLACK [TO 2/17/2025]

5263390-329

$35.99

22

BRKT-UPR RAD MNT [FROM 2/17/2025]

5276402

$35.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

26

TUBE-COOLANT,1"

5141614

$47.99

27

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

28

CLIP-P,1IN

7082306

$7.99
