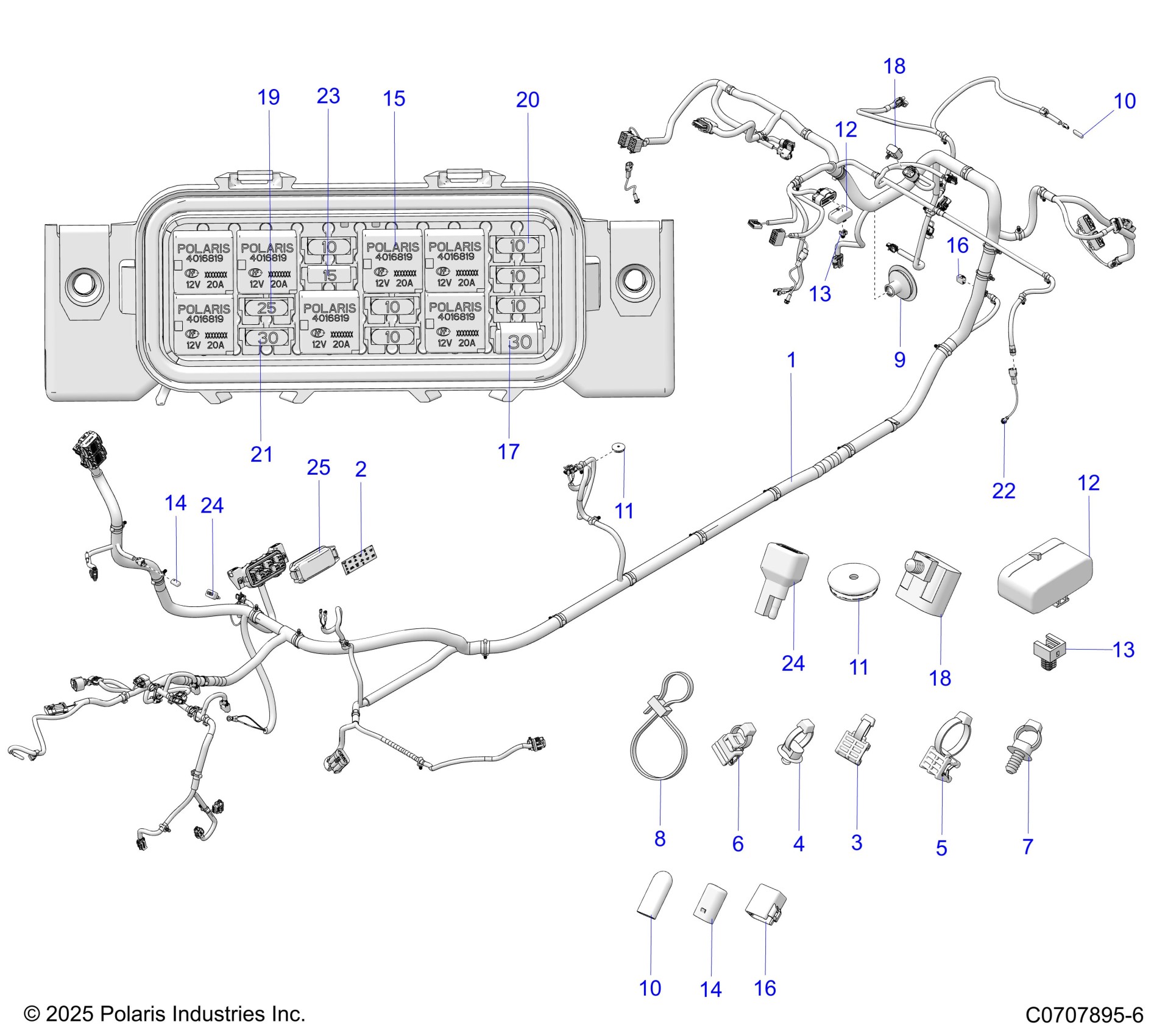

Polaris GENERAL XP4 1000 PREMIUM (R01) - G26GMP99AN/AJ/BN/BJ ELECTRICAL, HARNESS, CHASSIS Diagram

#

Description
Price

1

HARNESS-CHASSIS,CREW [INCLUDES ALL]

2417739

$1,359.59

2

LABEL, FUSE BOX

7190833

Unavailable

3

CLIP-EDGE, 3-6MM THICKNESS

7082404

$9.59

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

5

CLIP, EDGE, SIDE, W/STRAP

7081876

$7.99

6

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

8

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

9

GROMMET - 65 MM, BLK

5813954

$7.19

10

CAP - VINYL, 125X375, BLACK

5438230

$5.59

10

CAP - VINYL, 125X375, BLACK

5438230

$5.59

11

GROMMET - USB, 3 MM, 22 MM DIA

5415308

$3.99

11

GROMMET - USB, 3 MM, 22 MM DIA

5415308

$3.99

12

CAP-EVAP CONNECTOR

4018655

$3.99

12

CAP-EVAP CONNECTOR

4018655

$3.99

13

CLIP-CONNECTOR,GREY

4018311

$3.51

13

CLIP-CONNECTOR,GREY

4018311

$3.51

14

CAP EVAP CONNECTOR

4018066

$3.99

14

CAP EVAP CONNECTOR

4018066

$3.99

15

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

16

CONNECTOR-CAP, WINCH SWITCH

4014890

$8.79

16

CONNECTOR-CAP, WINCH SWITCH

4014890

$8.79

17

BREAKER-CIRCUIT,30A,MINI

4082848-30

$11.99

18

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

18

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

19

FUSE-25A,MINI BLADE

4011653

$7.99

20

FUSE-IGNITION,10 AMP

2434016

$4.79

21

FUSE-MAIN,30 AMP

2434015

$7.19

22

LED-PANEL MNT,12V,BLUE

2416797

$55.99

23

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

24

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

24

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

25

COVER- FUSE BOX, 48 WAY

4015011

$55.99
