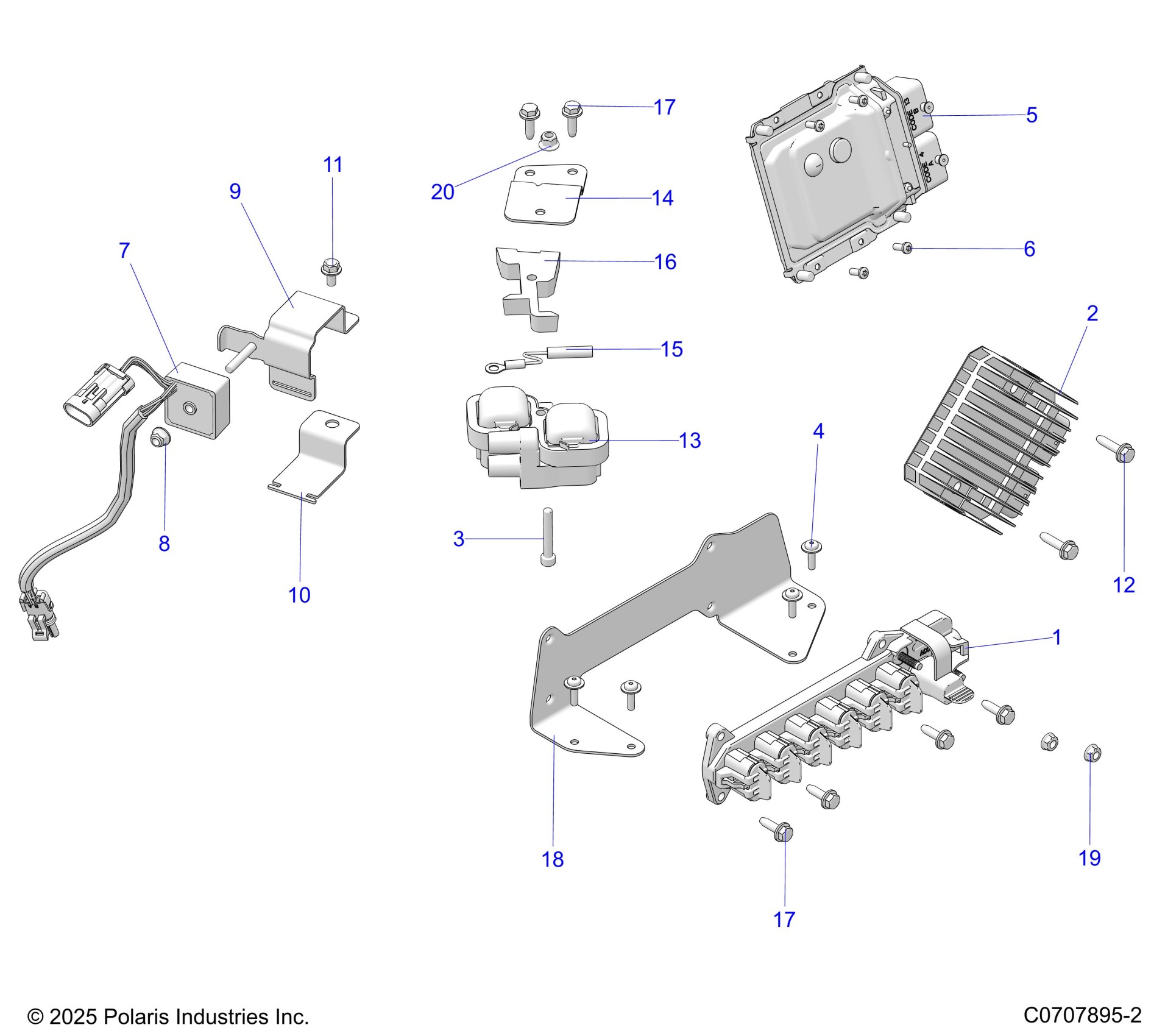

Polaris GENERAL XP4 1000 PREMIUM (R01) - G26GMP99AN/AJ/BN/BJ ELECTRICAL, COMPONENTS AND OPTIONS Diagram

BLOCK-TERMINAL,3 POST,TALL

4016007

$44.99

FUSE-CARTRIDGE,40A

4013891

$31.99

PLUG,ACCY TB

5454283

$39.99

COVER,TB,JCASE

5454284

$27.99

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

ECM-HARD,ME17,2CYL,250K [DEALER INSTALL REQUIRED]

4014125

$694.99

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

RELAY-SOLID STATE,9A

4081742

$71.99

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

BRKT-RELAY,INNER MOUNT,BLK

5267577-458

$27.99

BRKT-RELAY,OUTER MOUNT,BLK

5267578-458

$26.39

SCREW-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.19

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

COIL-EFI

4010425

Unavailable

BRKT-COIL MOUNT

5260553

$14.39

JUMPER, COIL GROUND

4014422

$27.99

SPACER-COIL MOUNT

5436577

$3.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

BRKT-MOUNT,PULSE,BLK

5266257-458

$27.99

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59
