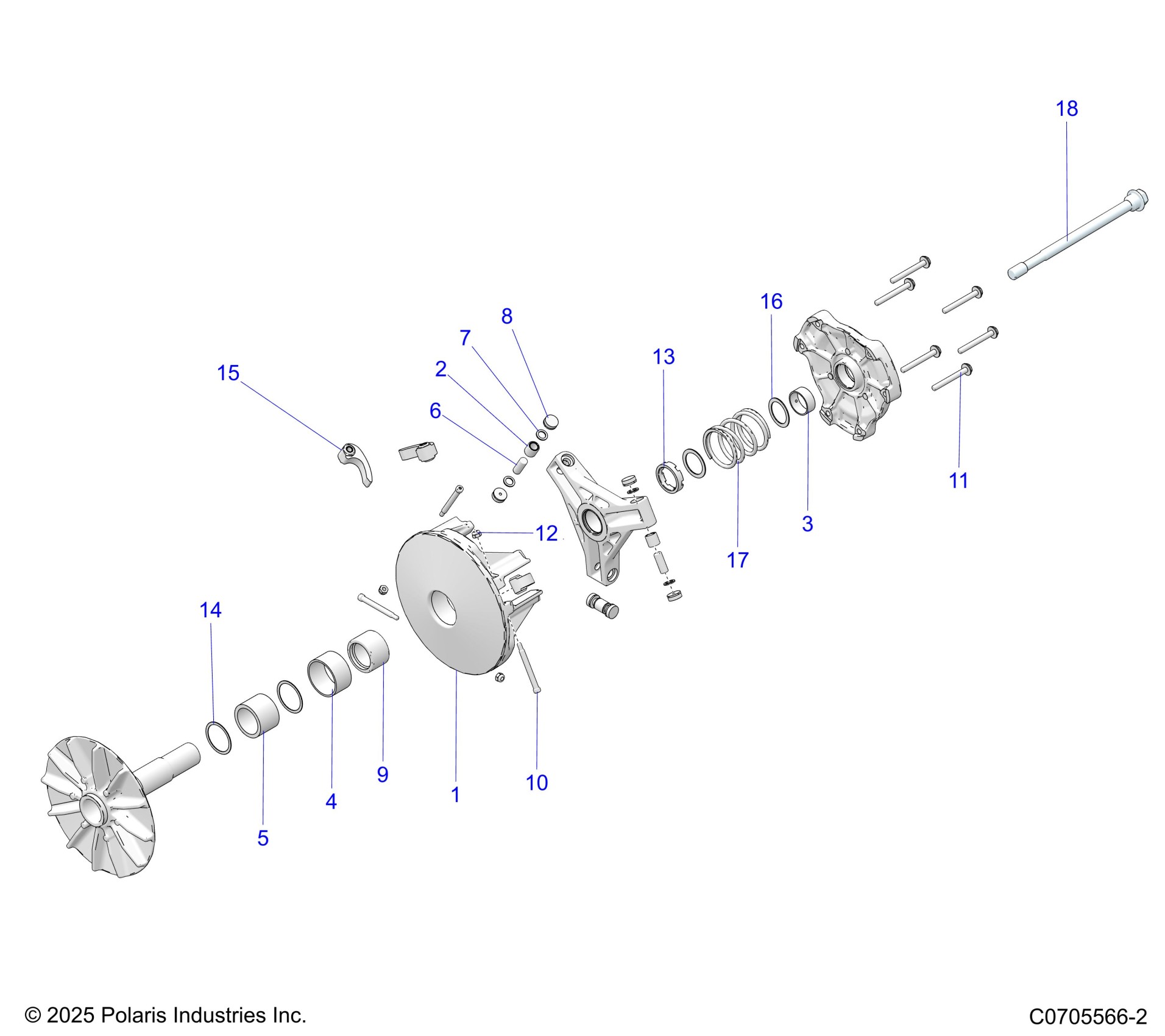

Polaris GENERAL XP4 1000 PREMIUM (R01) - G26GMP99AN/AJ/BN/BJ DRIVE TRAIN, PRIMARY CLUTCH Diagram

#

Description
Price

1

ASM., DRIVE CLUTCH, BASIC, BEARING [INCLUDES 2-14 & SHEAVES]

1323317

$613.07

2

ASM-ROLLER AND BUSHING

1321622

$32.37

3

BEARING, COVER,(10)

3576510

$9.59

4

BEARING-DU,1.75ID

3514492

$31.99

5

BEARING-NEEDLE

3514609

$35.99

6

PIN-ROLLER

5020422

$2.39

7

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

8

BUTTON, CLUTCH, RUBBER BACKED

5450940

$7.99

9

SPACER, CLUTCH, TALL, PM

5632894

$43.99

10

SCR-SH-1/4X2 SAE4037 BLKOX&OIL

7512266

$3.19

11

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$1.49

12

NUT-10-24-FLEX LOC-Z

7541906

$3.19

13

NUT, JAM

7547498

$23.99

14

WASHER-CLUTCH,VESPEL

7556335

$6.39

15

ASM-WEIGHT,SHIFT,35-76

1327101

$27.99

16

SPACER, CLUTCH, LIMITER

5438963

$3.99

17

SPRING-CLUTCH,58-135

7044263

$27.99

18

SCR-HXFL-M14X1.5X215 10.9 SPC

7520918

$13.59
