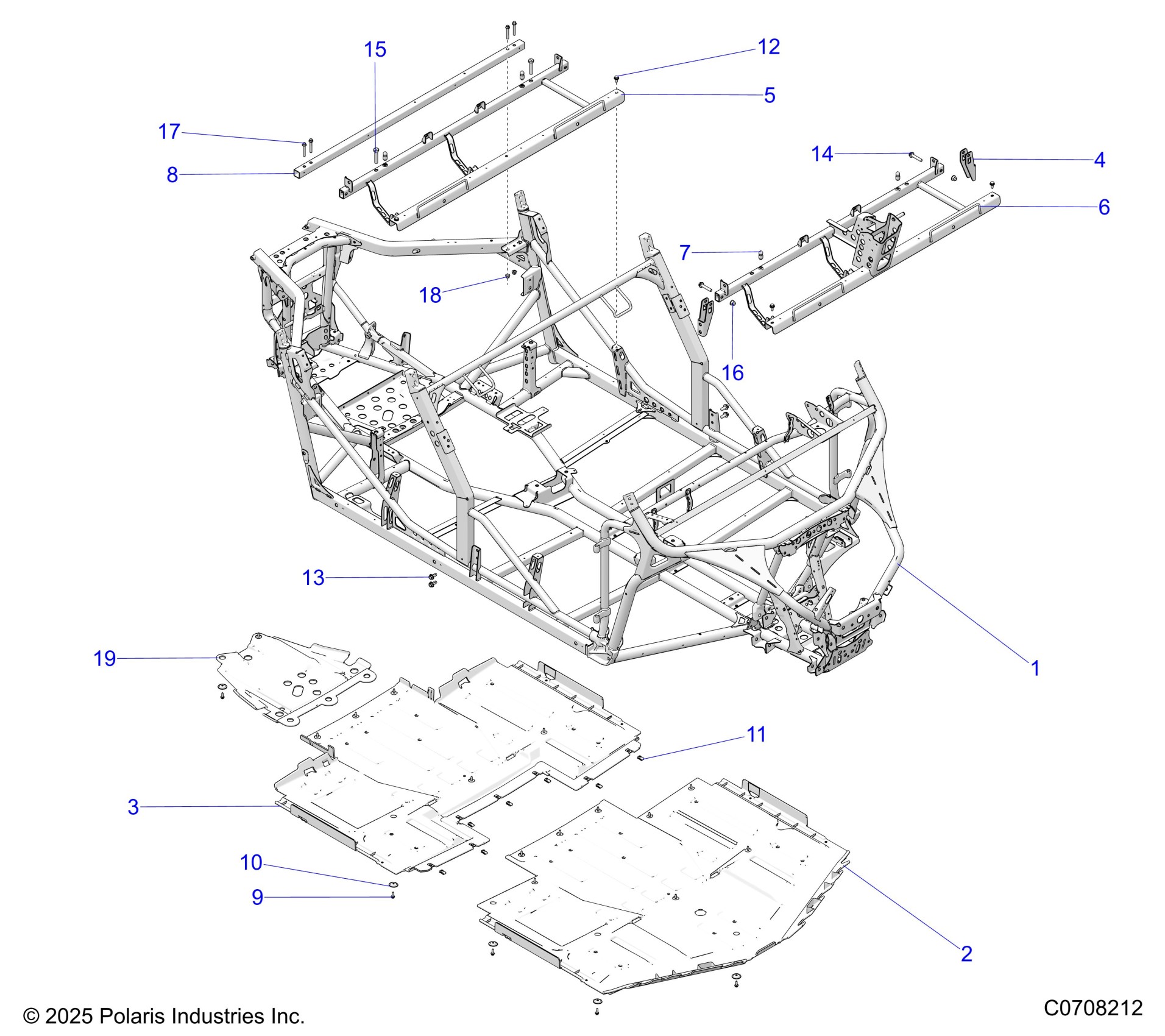

Polaris GENERAL XP4 1000 PREMIUM (R01) - G26GMP99AN/AJ/BN/BJ CHASSIS, MAIN FRAME AND SKID PLATES Diagram

K-FRAME,MAIN,GENERAL CREW,BLK

2213068

Unavailable

PLATE-SKID,GE,CREW,FRT,BLK

5466366-070

$209.99

PLATE-SKID,GE,CREW,REAR,BLK

5466367-070

$169.99

BRKT-SEAT SUPPORT,CREW

1029760

$43.65

WELD-SEAT BASE,REAR.E-COAT

1029793-329

$276.17

WELD-SEAT BASE,E-COAT

1029842-329

$399.98

LATCH, PLUNGER, SEAT

5632848

$13.49

ASM-TUBE,TOP FRAME

1029761

$109.51

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

WASHER-SKID PLATE

7556065

$4.76

CLIP-U SPEED NUT

7081305

$1.98

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.38

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.97

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.38

SCR-HH-M12X1.75X60 10.9 ZTC

7528402

Unavailable

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

PLATE-SKID,REAR,BLK

5456433-070

$182.54
