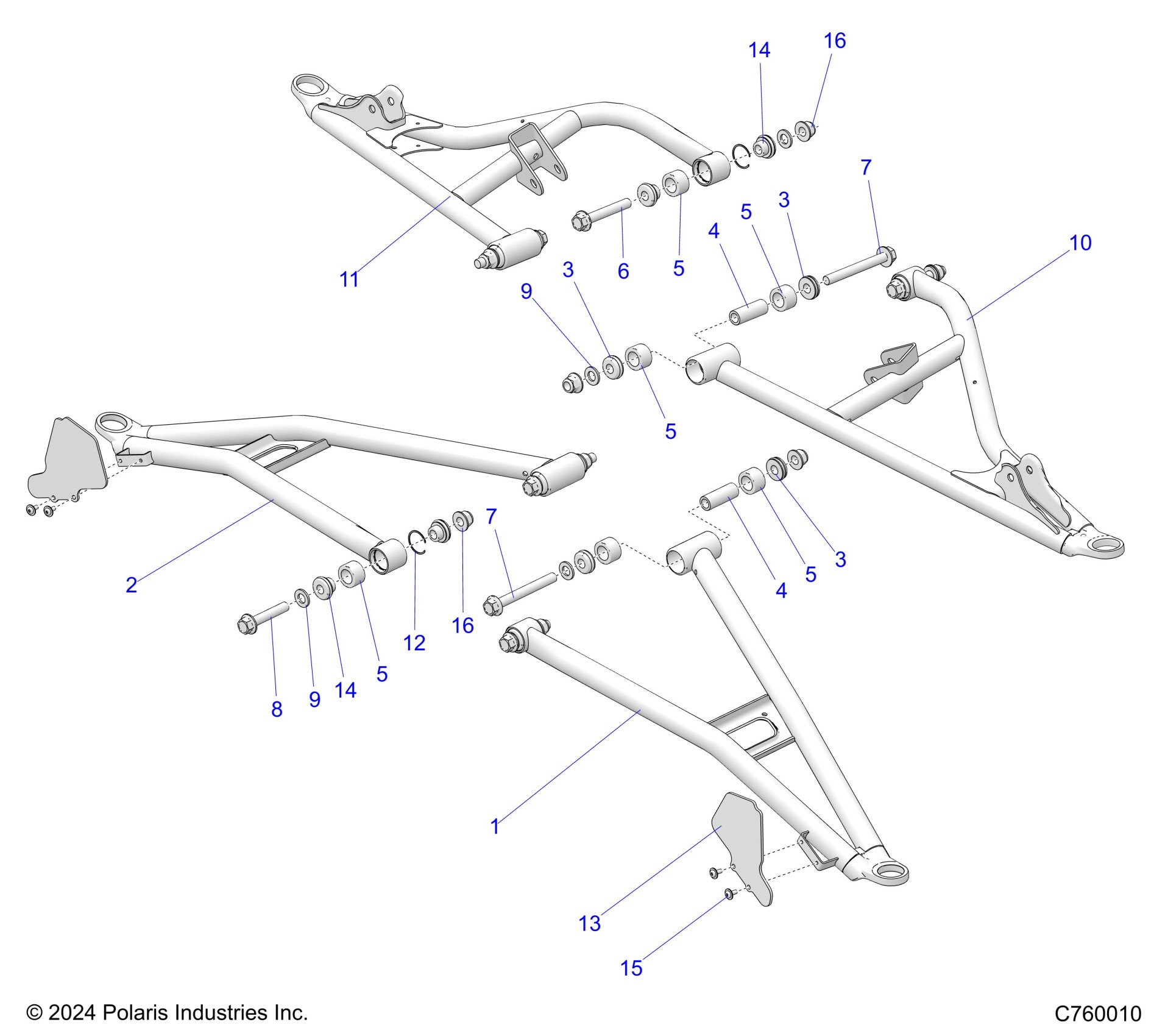

Polaris GENERAL XP4 1000 PREMIUM (R01) - G25GMP99AM/AR/BM/BR SUSPENSION, FRONT CONTROL ARMS - G25GMP99 (C700815-4) Diagram

WELD-CTRLARM,HC LWR,FR,LH,64,B

1025114-458

$127.99

WELD-CTRLARM,HC,LWR,FR,RH,64,B

1025115-458

$119.99

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

SHAFT-PIVOT,SHORT,M12

5140555

$8.79

SHAFT-PIVOT,SHORT,M12

5140555

$8.79

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

SCR-HXFL-M12X1.5X80 10.9 ZOD

7520478

$7.19

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

WELD-CTRL ARM,UPR,FR,LH,64,BLK

1025116-458

$334.39

WELD-CTRL ARM,UPR,FR,RH,64,BLK

1025117-458

$334.39

30MM SPIRAL RING,STEEL

7710869

$3.99

SHIELD, CV, FRONT, BLACK

5438641-070

$3.19

ASM-PIVOT CAP,SEALED,M12,MINI

1543998

$12.79

ASM-PIVOT CAP,SEALED,M12,MINI

1543998

$12.79

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79
