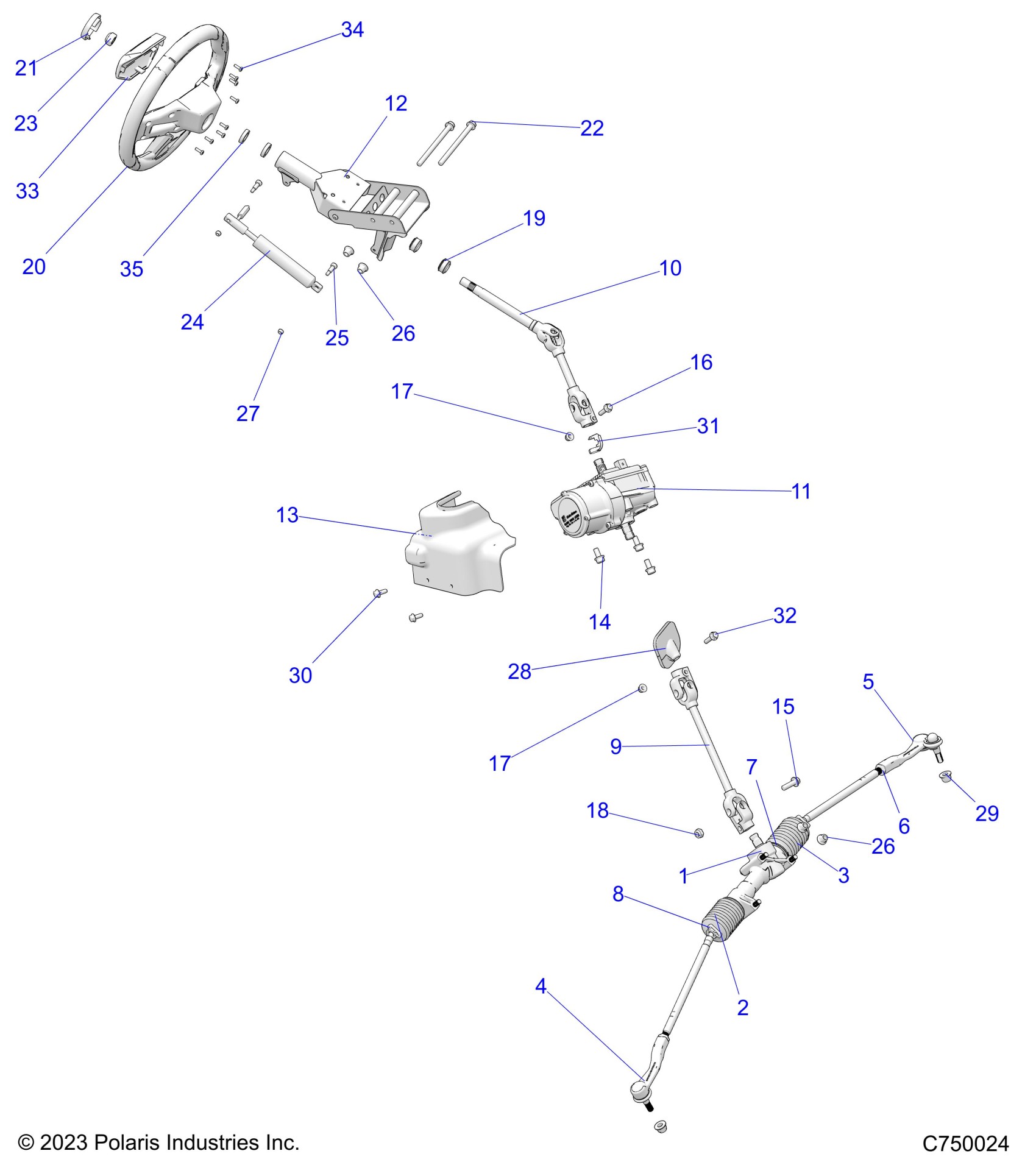

Polaris GENERAL XP4 1000 PREMIUM (R01) - G24GMP99AH/AN/BH/BN STEERING, STEERING ASM. - G24GMP99 (C750024) Diagram

#

Description
Price

1

ASM-GEAR BOX,STEERING,2.0T [INCLUDES 2-8]

1824924

$588.99

2

BELLOWS KIT [INCLUDES 6 & 7]

5417106

$28.32

3

BELLOWS KIT [INCLUDES 6 & 7]

5417106

$28.32

4

ROD-END,TAPERED,PROFILED,RH

7061229

$44.51

5

ROD-END,TAPERED,PROFILED,LH

7061228

$44.51

6

LOCK NUT KIT

2208131

$23.81

7

CLAMP, LARGE, BELLOWS

7080979

$5.56

8

BELLOWS CLAMP, SMALL

7082150

$6.46

9

SHAFT-STEERING LWR,EPS

1824931

$159.75

10

SHAFT-STEERING,UPPER,EPS

1824438

$208.16

11

ASM-POWER STEERING,RZR,1.5T

2414874

$2,199.99

12

ASM-TILT,STEERING,RVTD,M10,BLK [INCLUDES BEARINGS]

1824420-458

$189.99

13

COVER-EPS

5452850

$32.37

14

BOLT-M10X1.25X20,HXFLG-OLV D

7518558

$3.97

15

SCR-HXFL-M10X1.5X35 8.8 ZPC

7518644

$4.76

16

SCR-HXFL-M8X1.25X35 8.8 ZODv

7519052

$1.59

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

18

NUT-NY INS,M10X1.5,HEX,ZINC,YW

7547385

$1.19

19

BUSHING-STEERING

7556675

$15.19

20

WHEEL-STEERING

1824996

$93.08

21

CAP-STEERING WHEEL,BASE,BLK

5456866-070

$13.75

22

BOLT-M10X1.25X130,HXFLG-OLIVED

7518665

$13.49

23

NUT-HEX-M16X2, 8 ZC NYL

7547506

$4.99

24

ASM-SHOCK,OIL LOCKING,MACH

7044098

$113.99

25

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.14

26

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

26

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

27

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

28

GROMMET-STEERING

5415579

$8.73

29

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.76

30

SCR-M6X1X16 TR/TX-M

7518936

$3.97

31

EPS SHAFT ASSEMBLY SLEEVE

5454206

$6.46

32

SCR-M8X1.25X40 10.9 HX/FL ZOD �

7518954

$5.56

33

TRIM-STEERING WHEEL,BLK

5458914-070

$20.22

34

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97

35

BEARING-STEERING

3514686

$9.52
