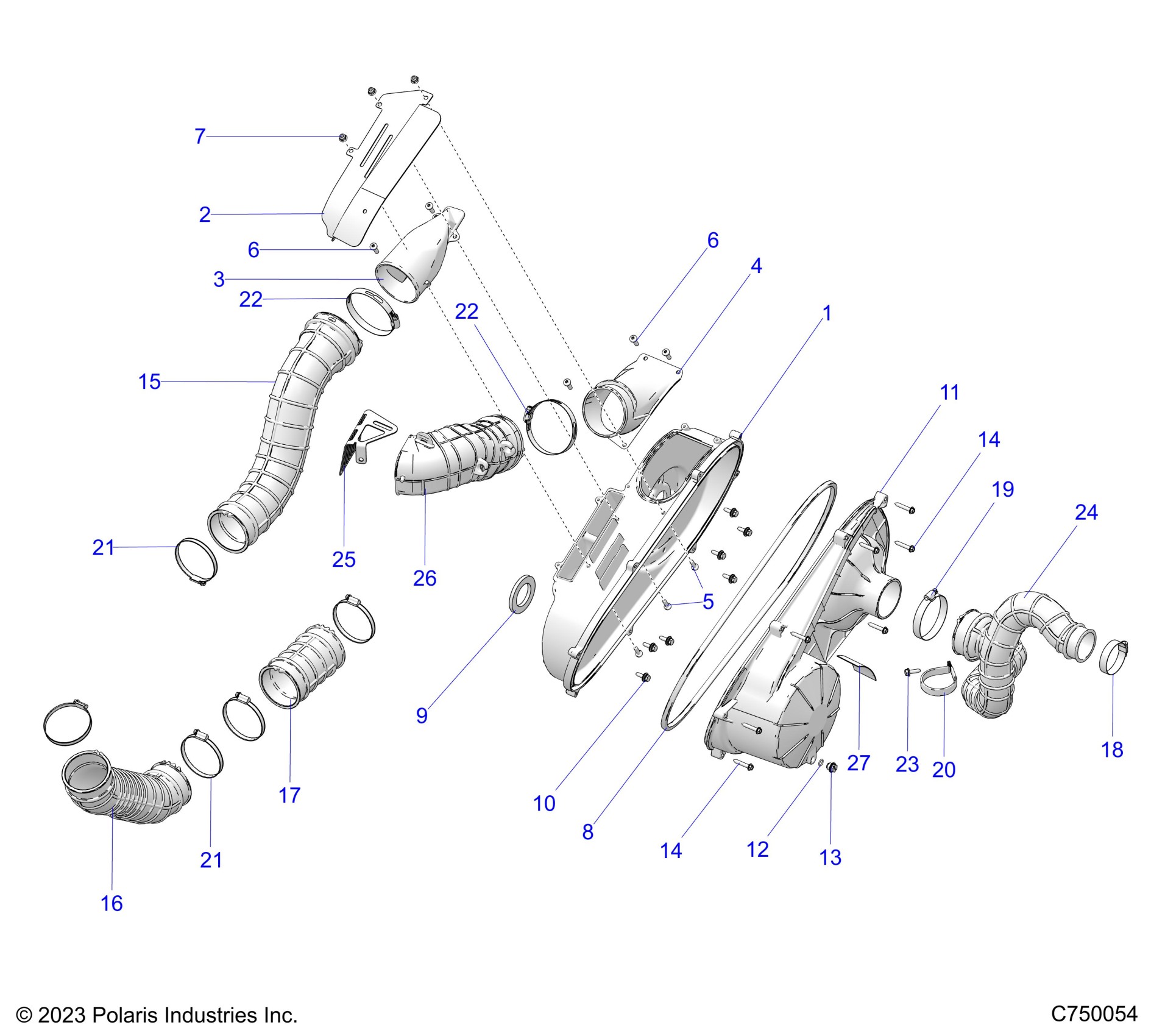

Polaris GENERAL XP4 1000 PREMIUM (R01) - G24GMP99AH/AN/BH/BN DRIVE TRAIN, CLUTCH COVER AND DUCTING - G24GMP99 (C750054 Diagram

#

Description
Price

1

ASM., COVER, CLUTCH, INNER [INCLUDES 1-7]

2637760

$159.99

1

COVER-CLUTCH,INNER,BLK

5454487-070

$143.99

2

BRACKET, GUARD, CLUTCH COVER

5268504

$91.99

3

DUCT-CLUTCH,AIR INLET

5439086

$39.99

4

DUCT, CLUTCH, AIR OUTLET

5450846

$39.99

5

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

6

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

6

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

7

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

8

SEAL-OUTER CLUTCH COVER

5526449

$44.51

9

SEAL-COVER,PTO

5813708

$23.99

10

SCR-TFHFL-M6X1.0X20 S/R ZOD

7519278

$4.79

11

K-CVR,CLUTCH,OTR,GENERAL [INCLUDES 12, 13 & 27]

2207414

$179.99

12

O RING-.364X.504X.07

5410542

Unavailable

13

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

14

SCREW-NXFL-M6X35 ZOD HILO

7519330

$3.99

14

SCREW-NXFL-M6X35 ZOD HILO

7519330

$3.99

15

HOSE-CLUTCH,INLET

5415467

$55.99

16

HOSE-INTAKE,DUCT

5415468

$43.99

17

HOSE-INTAKE,DUCT

5415811

$27.99

18

CLAMP, HOSE, S.S.(10)

7080451

$7.19

19

CLAMP,HOSE,3.75,SS

7080907

$11.19

20

CLAMP-FUEL FILTER

7081129

$4.23

21

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

21

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

22

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

22

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

HOSE-CLUTCH,SCNDRY INTK, RBR

5416058

$91.99

25

BRACKET, SCREEN, BELT

5256732

$11.19

26

HOSE, CLUTCH, AIR OUTLET

5451061

$107.99

27

DECAL-BELT,WARNING/CHECK

7177469

Unavailable
