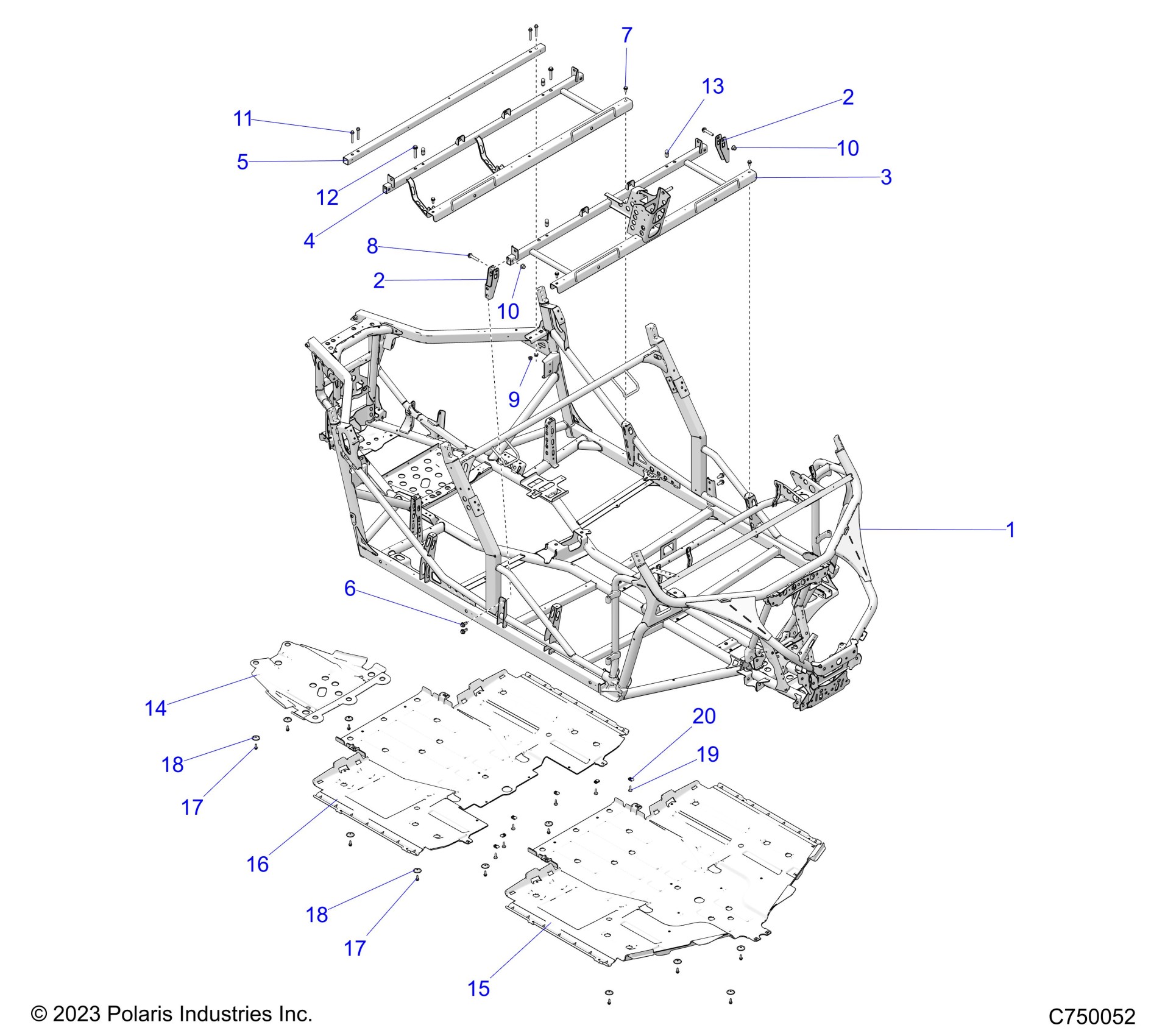

Polaris GENERAL XP4 1000 PREMIUM (R01) - G24GMP99AH/AN/BH/BN CHASSIS, MAIN FRAME - G24GMP99 (C750052) Diagram

K-FRAME,MAIN,GENERAL CREW,BLK [INCLUDES DECAL]

2212015

$4,043.59

BRKT-SEAT SUPPORT,CREW,E-COAT

1026646-329

$43.99

BRKT-SEAT SUPPORT,CREW,E-COAT

1026646-329

$43.99

WELD-SEAT BASE,FRONT,E-COAT

1022146-329

$311.99

WELD-SEAT BASE,REAR.E-COAT

1022147-329

$219.99

ASM-TUBE,TOP FRAME

1029761

$87.99

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

LATCH, PLUNGER, SEAT

5632848

$13.59

PLATE-SKID,REAR,BLK

5456433-070

$175.99

PLATE-SKID,BLK

5452060-070

$131.99

PLATE-SKID,CREW,BLK

5452851-070

$127.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

WASHER-SKID PLATE

7556065

$4.79

WASHER-SKID PLATE

7556065

$4.79

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49
