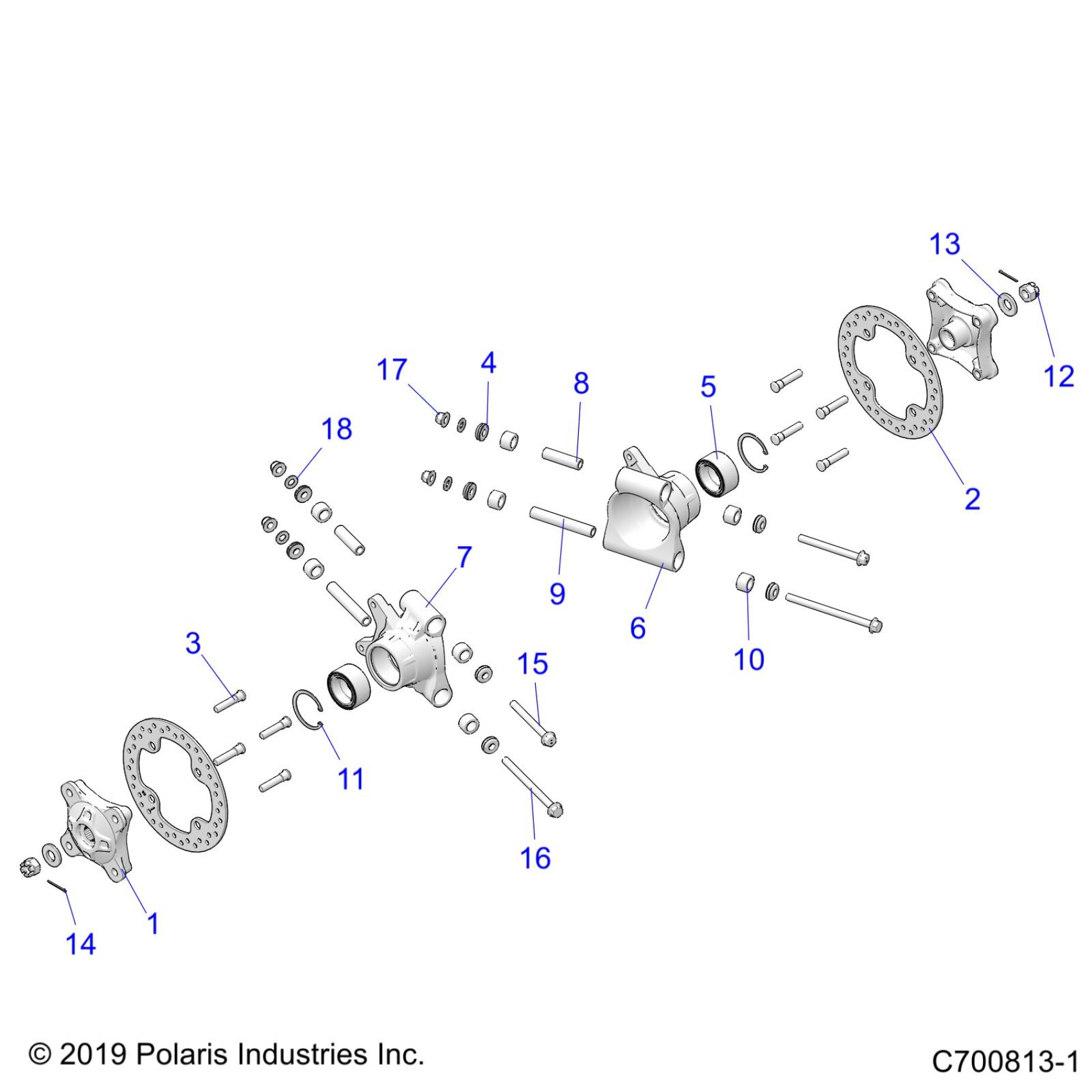

Polaris GENERAL XP4 1000 DELUXE (R02) - G22GMD99AC/AJ/BC/BJ SUSPENSION, REAR CARRIER - G22GMD99AC/AJ/BC/BJ (C700813-1) Diagram

HUB-WHEEL,MACH,BLK

5142020-067

$111.99

HUB-WHEEL,MACH,BLK

5142020-067

$111.99

DISC, BRAKE

5257196

$63.99

STUD-WHEEL,M12-1.5

7519792

$5.59

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

CARRIER-BEARING,WHEEL,LH

5142720

$99.99

CARRIER-BEARING,WHEEL,RH

5142721

$99.99

TUBE-PIVOT,LONG,SEALED,M12

5341799

$27.99

SHAFT-PIVOT, LONG, M12

5139991

$8.79

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

WSHR-AXLE,M18,42X4.5

7557134

$7.99

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

SCR-HXFL-M12X1.5X120 10.9 ZFB

7521137

$7.19

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$11.19

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19
