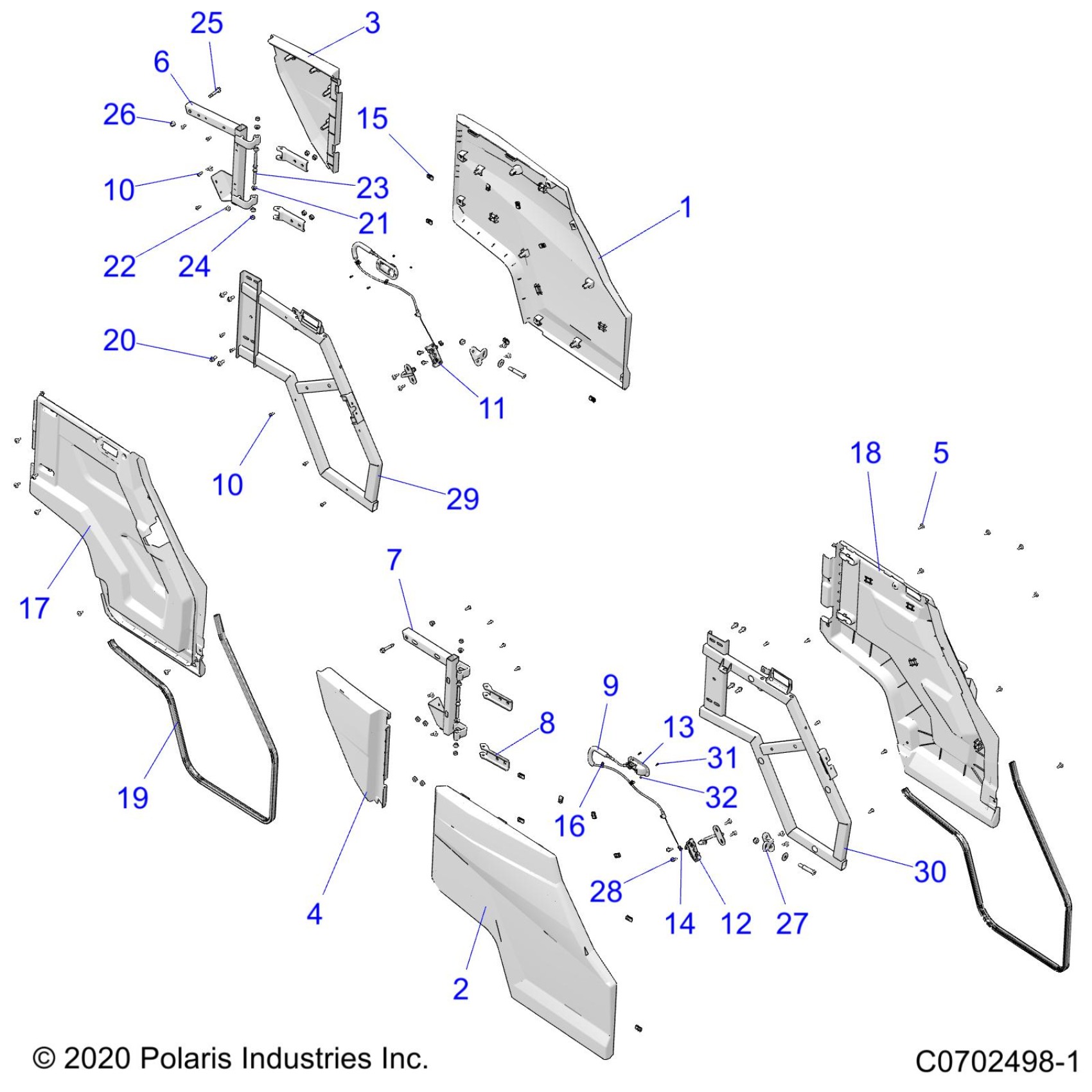

Polaris GENERAL XP4 1000 DELUXE LIMITED LE TROY LEE (R01) - G22GMK99AR/BR BODY, DOORS, REAR - G22GMK99AR/BR (C0702498-1) Diagram

#

Description
Price

1

PNL-DR,OTR,RR,PNT,LH,B.SLT MSK

5454659-866

Unavailable

1

PNL-DR,OTR,RR,PNT,LH,B.SLT MSK

5454659-866

Unavailable

2

PNL-DR,OTR,RR,PNT,RH,B.SLT MSK

5454662-866

Unavailable

3

CVR-BLSTR BAR,PNT,LH,B.SLT MSK

5452953-866

Unavailable

4

CVR-BLSTR BAR,PNT,RH,B.SLT MSK

5452954-866

Unavailable

5

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

Unavailable

6

WELD-BOLSTER,REAR,LH,BLK

1022761-458

$131.99

7

WELD-BOLSTER,REAR,RH,BLK

1022762-458

$131.99

8

BRKT-DOOR REAR HINGE,BLK

5263232-329

$43.99

9

CABLE-ADJUSTABLE REAR DOOR

7082482

$48.56

10

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

10

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

11

ASM-LATCH,RTRY,2 STAGE,LH

7082459

$47.99

12

ASM-LATCH,RTRY,2 STAGE,RH

7082460

$47.99

13

ASM-HANDLE-DOOR,REAR

7082387

$55.99

14

CLIP-DOOR LATCH

5454637

$4.99

15

CLIP-U SPEED NUT

7081305

$1.99

16

CLIP-CABLE

5455529

$3.99

17

PANEL-DOOR,INNER,REAR,LH,BLK

5454348-070

$131.99

18

PANEL-DOOR,INNER,REAR,RH,BLK

5454349-070

$131.99

19

SEAL-DOOR,REAR

5510932

$79.99

20

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$3.99

21

BUSHING, DOOR, PIVOT

5450592

$2.39

22

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

23

SCR-HH-M8X1.25X55 8.8 ZOD

7519781

$4.79

24

NUT-HEX-M8X1.25 8 ZOD NYL

7547480

$2.39

25

SCR-HXFL-M8X1.25X50 8.8 ZODP30

7519077

$3.99

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

27

WELD-STRIKER,REAR,BLK

1023631-458

$48.39

28

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.99

29

WELD-DOOR FRAME,REAR,LH,BLK

1023534-458

$255.99

30

WELD-DOOR FRAME,REAR,RH,BLK

1023535-458

$255.99

31

SCR-TXFH-M3X0.5X12 8.8 ZPB

7520905

$4.39

32

NUT-HEX-M3X0.5 8 ZY3

7547500

$3.99
