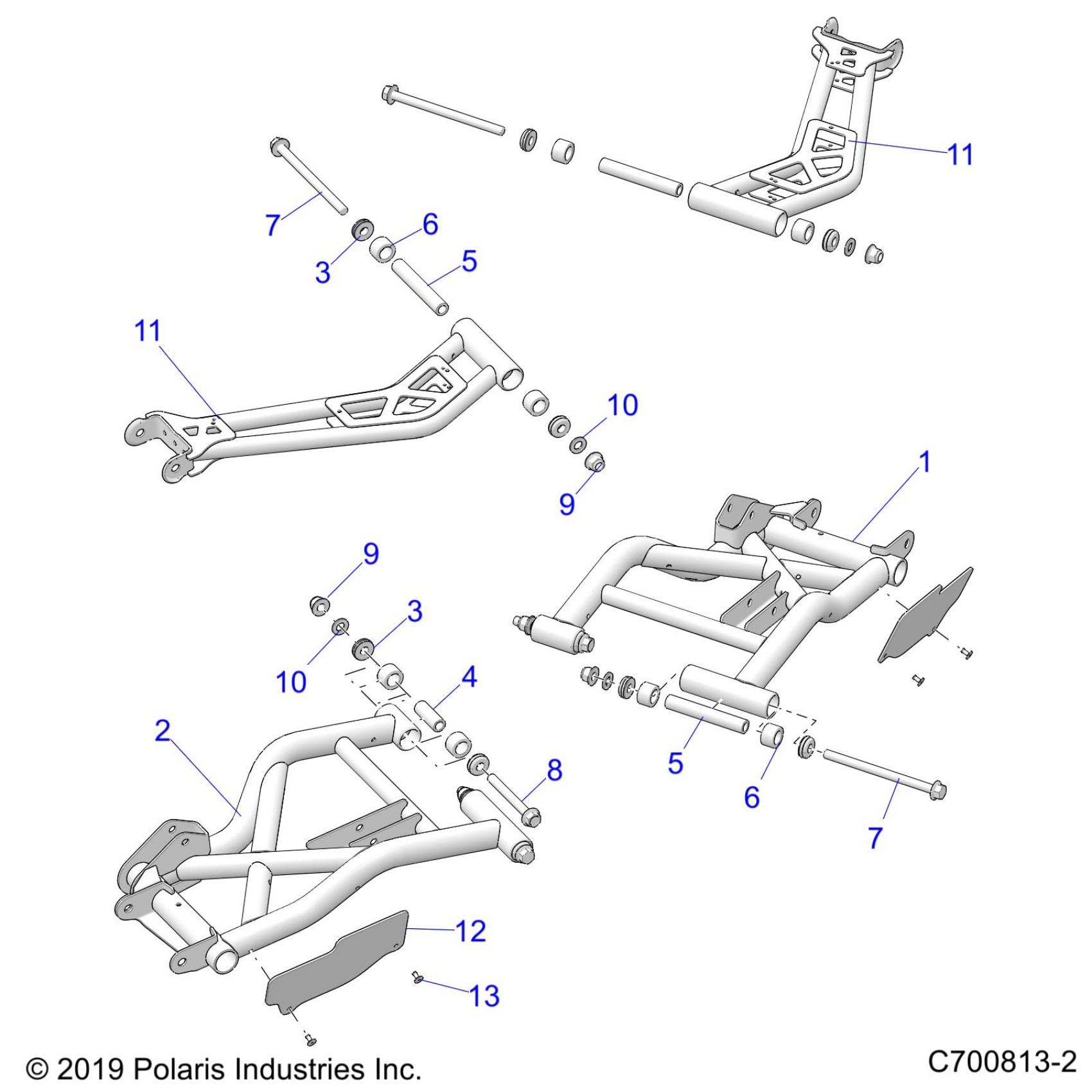

Polaris GENERAL XP 1000 TRAILHEAD LE (R02) - G22GXK99AP/BP SUSPENSION, REAR CONTROL ARMS - G22GXK99AP/BP (C7008713-2) Diagram

WLD-CTRL,ARM,RR,LW,LH,64,O.RST

1024922-750

Unavailable

WLD-CTRL,ARM,RR,LW,RH,64,O.RST

1024923-750

Unavailable

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

SHAFT-PIVOT,SHORT,M12

5140555

$8.79

SHAFT-PIVOT, LONG, M12

5139991

$8.79

SHAFT-PIVOT, LONG, M12

5139991

$8.79

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$11.19

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$11.19

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

WELD-A-ARM,REAR,UPR,64,O.RUST

1024921-750

Unavailable

WELD-A-ARM,REAR,UPR,64,O.RUST

1024921-750

Unavailable

SHIELD-SHOCK,ROD

5456405

$19.99

RIVET-POP 3/16 (.376-.500) AL-LFB

7621460

$1.49
