Description

Price

1

ASM-GEARCASE

1334263

$4,078.79

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.19

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

5

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

6

SCREW, CAP HH M8 X 1.25 X 25

3236169

$9.59

7

SCREW, HEX FLANGE M8 X 50

3235207

$10.39

8

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.19

9

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.99

9

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.99

10

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.99

11

WASHER-CUP

3234091

$9.59

11

WASHER-CUP

3234091

$9.59

12

WASHER-32.3X42X1.5(115288)

3235211

$10.39

12

WASHER-32.3X42X1.5(115288)

3235211

$10.39

12

WASHER-32.3X42X1.5(115288)

3235211

$10.39

13

WASHER-35.6X57X1.5(115289)

3235212

$13.59

14

WASHER, 22.5 X 30 X 1.5

3236410

$8.79

15

PIN, DOWEL 6 X 20

3234330

$7.19

16

PIN, SPRING, SLOTTED 6 X 12

7043746

$7.19

17

PIN, DOWEL 3 X 40

3236286

$13.59

18

PIN, DOWEL 8 X 10

3236295

$12.31

19

RING, RETAINING BASIC EXTERNAL

7710434

$3.99

20

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

21

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

22

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

23

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

24

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

25

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

25

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

26

RING, RETAINING,

3234205

$11.19

26

RING, RETAINING,

3234205

$11.19

27

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

27

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

27

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

28

RING-RETAIN,VSH-237(130298)

3235216

$10.39

29

SHAFT, INPUT 42T/20T/25T

3235754

$215.99

30

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

30

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

31

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

32

SHIM, 1.180 OD X 0.995 ID

3234272

$31.99

33

SHIM, 2.040 OD X 1.63 ID

3234273

$12.79

34

SPACER, 19.4 X 34.0 X 2.0

3235883

$23.99

35

BEARING, NEEDLE

3233014

$43.99

35

BEARING, NEEDLE

3233014

$43.99

36

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

36

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

37

BEARING

3233020

$47.99

38

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

38

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

39

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

39

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

39

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

40

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.99

41

BEARING, BALL, 6012 C3 60 X 95 X 18

3235218

$59.99

42

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

42

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

43

BEARING, BALL 6206RSH2 STD 30 X 62 X 16

3235496

$31.99

44

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

44

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

45

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

45

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

46

SPRING, TORSION, RETURN

3234276

$7.99

47

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$12.79

48

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$12.79

49

SPRING, TORSION

3235885

$19.99

50

WASHER-SPRING,210393

3235327

$9.59

51

TUBE, SNORKEL MACHINED

3234278

$95.99

52

CARRIER, DIFFERENTIAL MACH

3236287

$159.99

53

GEAR, SECTOR, 16T

3233839

$31.99

54

GEAR-SECTOR,31T

3233832

$31.99

55

FORK, PIVOT SHIFT, REAR DIFF

3235455

$87.99

56

PLATE, PARK, 12 FACE

3235456

$35.99

57

STAR, DETENT,

3235982

$31.99

58

SHAFT-IDLER,29T(285803)

3235223

$107.99

59

SHAFT-REVERSE,27T(285878)

3235380

$243.99

60

GEAR, 14T OUTPUT, MACH

3236290

$155.99

61

GEAR, 53T OUTPUT

3236291

$247.99

62

GEAR, 14T OUTPUT DISCONNECT, MACH

3236289

$159.99

63

SHAFT, FRONT OUTPUT

3236439

$131.99

64

BELLCRANK, 92 DEG

3235581

$39.99

65

COLLAR-SHIFT

3234073

$31.99

66

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

67

GEAR-LOW,67T(352856)

3235232

$115.99

68

ENGAGEMENT DOG,6-FACE(352857)

3235233

$119.99

69

GEAR-53T(352858)

3235234

$79.99

70

GEAR-46T,STAGE 3(352872)

3235236

$103.99

71

SHAFT-SHIFT(352973)

3235238

$37.61

72

GEAR, 46T, STAGE 2

3235381

$123.99

73

SHIFT DOG, PARK/LOW (353357)

3235457

$135.99

74

RAIL-SHIFT SHAFT(353622)

3235542

$27.99

75

SPROCKET-48T,6-FACE REVERSE

3235755

$79.99

76

CAM, PARK

3235983

$151.99

77

DRUM, SHIFT MACH,

3235984

$263.99

78

PIN, DIFFERENTIAL

3236292

$99.99

79

GEAR, 13T SNORKEL

3236412

$135.99

80

DOG, ENGAGEMENT

3236293

$127.99

81

WELDMENT REAR MOUNT BRACKET63

3235399

$47.99

82

SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]

3235713

$107.99

83

SUBASM.,SHAFT [INCL. BEARING, RET. RING]

3235336

$355.99

84

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$31.99

85

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

85

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

86

SUBASSEMBLY, RH COVER [INCLUDES ALL HARDWARE]

3235995

$405.59

87

SUBASSEMBLY, PINION GEAR

3236288

$127.99

88

SUBASSEMBLY, DIFFERENTIAL

3236285

$363.99

89

SUBASSEMBLY, LH CASE [INCLUDES ALL HARDWARE]

3236437

$399.99

90

RETAINER-FORK

3234934

$10.39

91

COVER-BEARING,CNTR DR. [CENTER DRIVE]

3235241

$43.99

92

BRACKET, WIRE HARNESS

3235350

$8.79

93

BRACKET, MOUNT, REAR

3235398

$67.99

94

WASHER, THRUST, 40.83 X 56.25 X 0.38

3236294

$11.19

94

WASHER, THRUST, 40.83 X 56.25 X 0.38

3236294

$11.19

95

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

96

SOLENOID

3235478

$275.99

97

SENSOR-SPEED,TRANS

4013908

Unavailable

98

SWITCH, ROTARY , 2 PIN RESISTIVE

7662299

$111.99

99

PLUG, M18 X 1.5

3234755

$27.99

100

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$31.99

100

SEAL, TRIPLE LIP, VITON HELIX 40X70X7

3235052

$31.99

101

SEAL, TRIPLE LIP, VITON HELIX 30 X 47

3235495

$39.99

102

O-RING

3234302

$7.19

103

O-RING, -012 VITON

3233836

$6.87

104

O-RING, -014 VITON

3233828

$6.79

105

SEAL, TRIPLE LIP, VITON, 25 X 80 X 10

3235658

$55.99

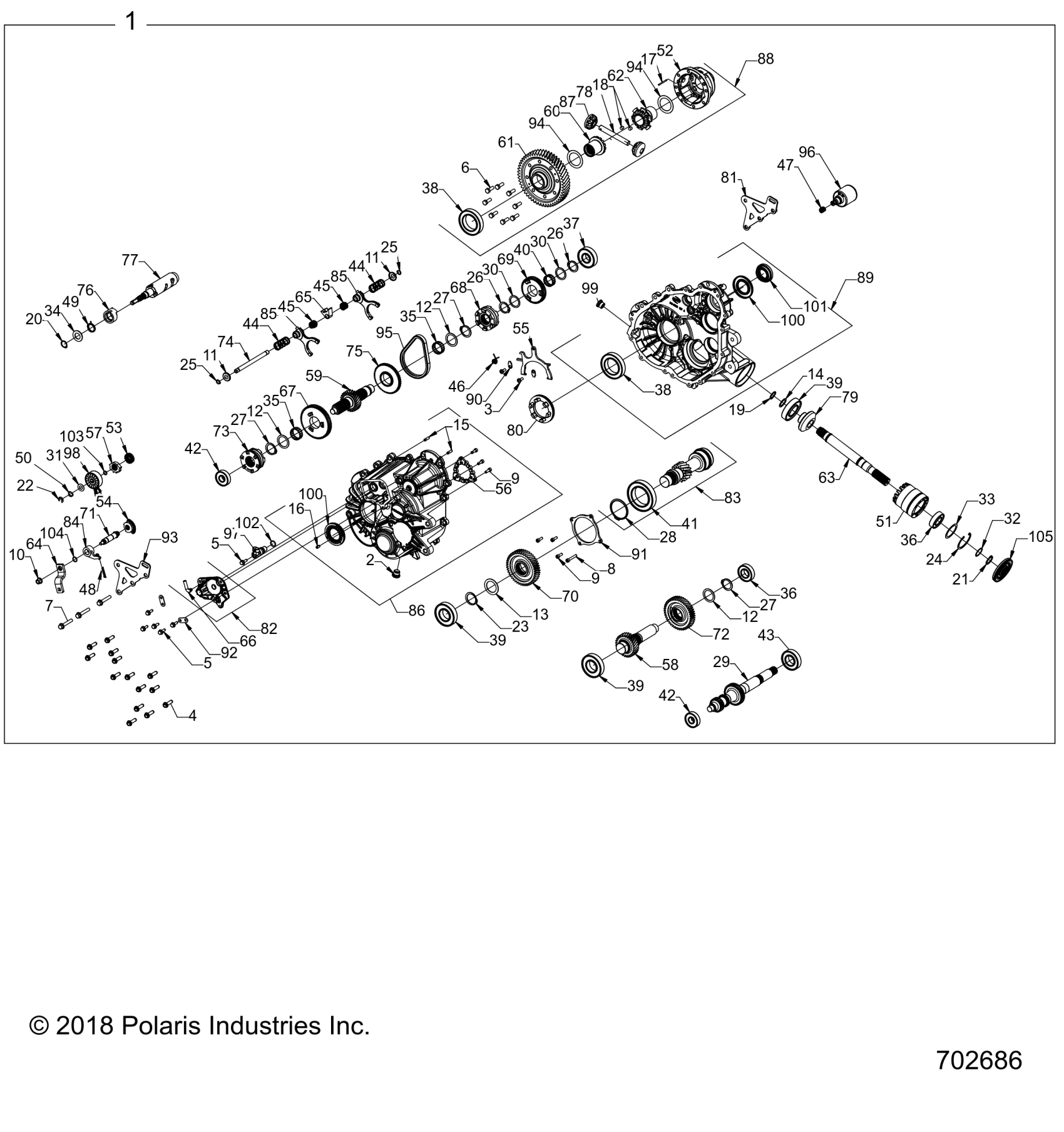

Polaris GENERAL XP 1000 TRAILHEAD LE (R02) - G22GXK99AP/BP DRIVE TRAIN, MAIN GEARCASE INTERNALS - G22GXK99AP/BP (702686) Diagram

ASM-GEARCASE

PLUG, M18 X 1.5 MAGNETIC

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

SCREW, CAP HH M8 X 1.25 X 25

SCREW, HEX FLANGE M8 X 50

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

WASHER-CUP

WASHER-CUP

WASHER-32.3X42X1.5(115288)

WASHER-32.3X42X1.5(115288)

WASHER-32.3X42X1.5(115288)

WASHER-35.6X57X1.5(115289)

WASHER, 22.5 X 30 X 1.5

PIN, DOWEL 6 X 20

PIN, SPRING, SLOTTED 6 X 12

PIN, DOWEL 3 X 40

PIN, DOWEL 8 X 10

RING, RETAINING BASIC EXTERNAL

RING,RETAINING BASIC,EXTERNAL 0.75

RING,RETAINING BASIC,EXTERNAL 0.984

RING, RETAINING BASIC EXTERNAL

RING, RETAINING, SHAFT, DIA. 1.375

RING,RETAINING BASIC,INTERNAL 2.047

RING,RETAINING BASIC,EXTERNAL 0.428

RING,RETAINING BASIC,EXTERNAL 0.428

RING, RETAINING,

RING, RETAINING,

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,VSH-237(130298)

SHAFT, INPUT 42T/20T/25T

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,0.446 X 0.88 X 0.025

SHIM, 1.180 OD X 0.995 ID

SHIM, 2.040 OD X 1.63 ID

SPACER, 19.4 X 34.0 X 2.0

BEARING, NEEDLE

BEARING, NEEDLE

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING-NEEDLE,30X35X13-CAGED

BEARING, BALL, 6012 C3 60 X 95 X 18

BEARING, BALL 6303, 17 X 47 X 14

BEARING, BALL 6303, 17 X 47 X 14

BEARING, BALL 6206RSH2 STD 30 X 62 X 16

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING, COMPRESSION, 0.46 I.D. X 0.73

SPRING, COMPRESSION, 0.46 I.D. X 0.73

SPRING, TORSION, RETURN

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

SPRING, COMPRESSION 0.36 O.D. X 1.125

SPRING, TORSION

WASHER-SPRING,210393

TUBE, SNORKEL MACHINED

CARRIER, DIFFERENTIAL MACH

GEAR, SECTOR, 16T

GEAR-SECTOR,31T

FORK, PIVOT SHIFT, REAR DIFF

PLATE, PARK, 12 FACE

STAR, DETENT,

SHAFT-IDLER,29T(285803)

SHAFT-REVERSE,27T(285878)

GEAR, 14T OUTPUT, MACH

GEAR, 53T OUTPUT
