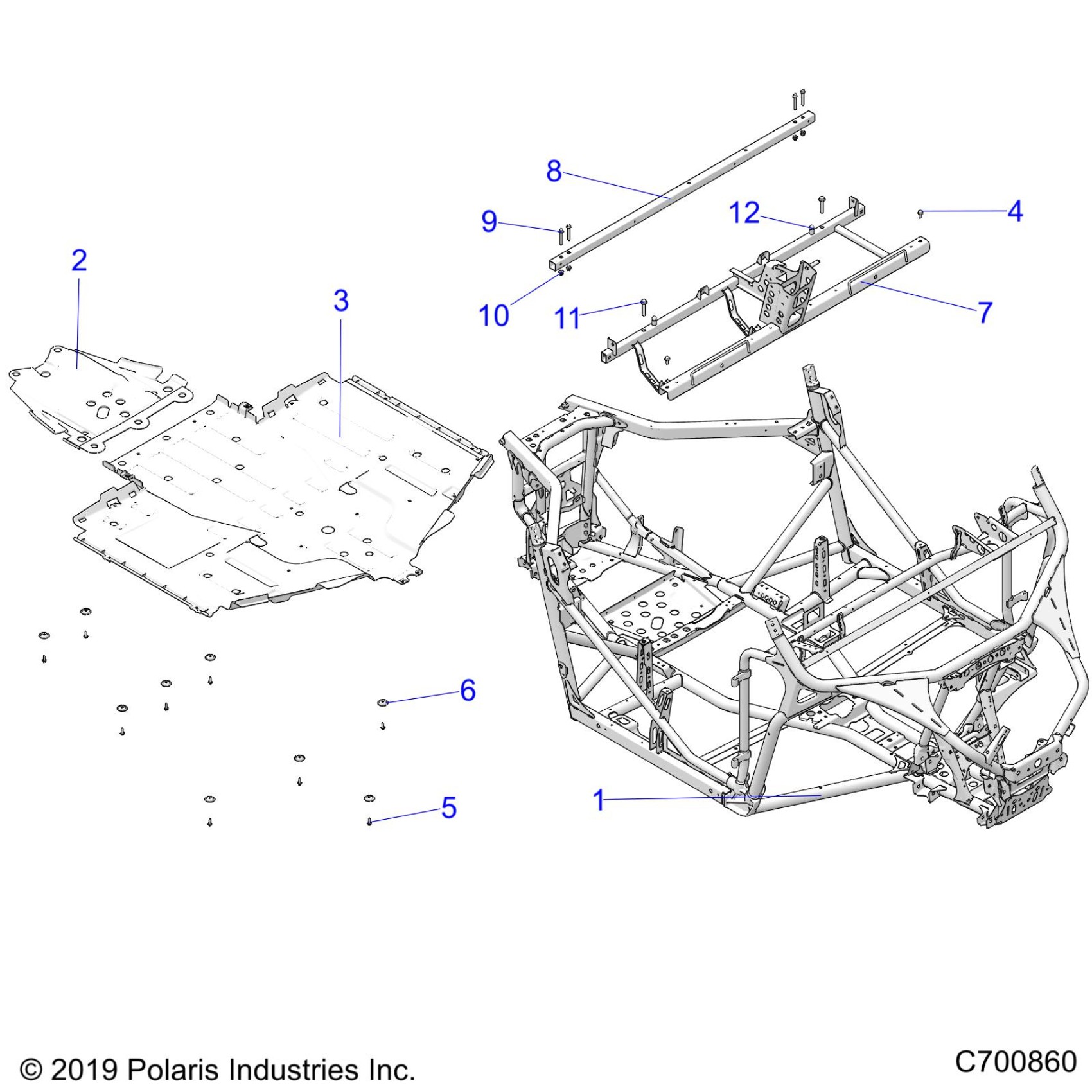

Polaris GENERAL XP 1000 TRAILHEAD LE (R02) - G22GXK99AP/BP CHASSIS, MAIN FRAME AND SKID PLATES - G22GXK99AP/BP (C700860) Diagram

#

Description
Price

1

K-FRAME,CHASSIS,GENERAL,BLK

2212067

$3,568.39

2

PLATE-SKID,REAR,BLK

5456433-070

$175.99

3

PLATE-SKID,BLK

5452060-070

$131.99

4

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

6

WASHER-SKID PLATE

7556065

$4.79

7

WELD-SEAT BASE,E-COAT

1021254-329

$319.99

8

ASM-TUBE,TOP FRAME

1029761

$87.99

9

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

12

LATCH, PLUNGER, SEAT

5632848

$13.59
