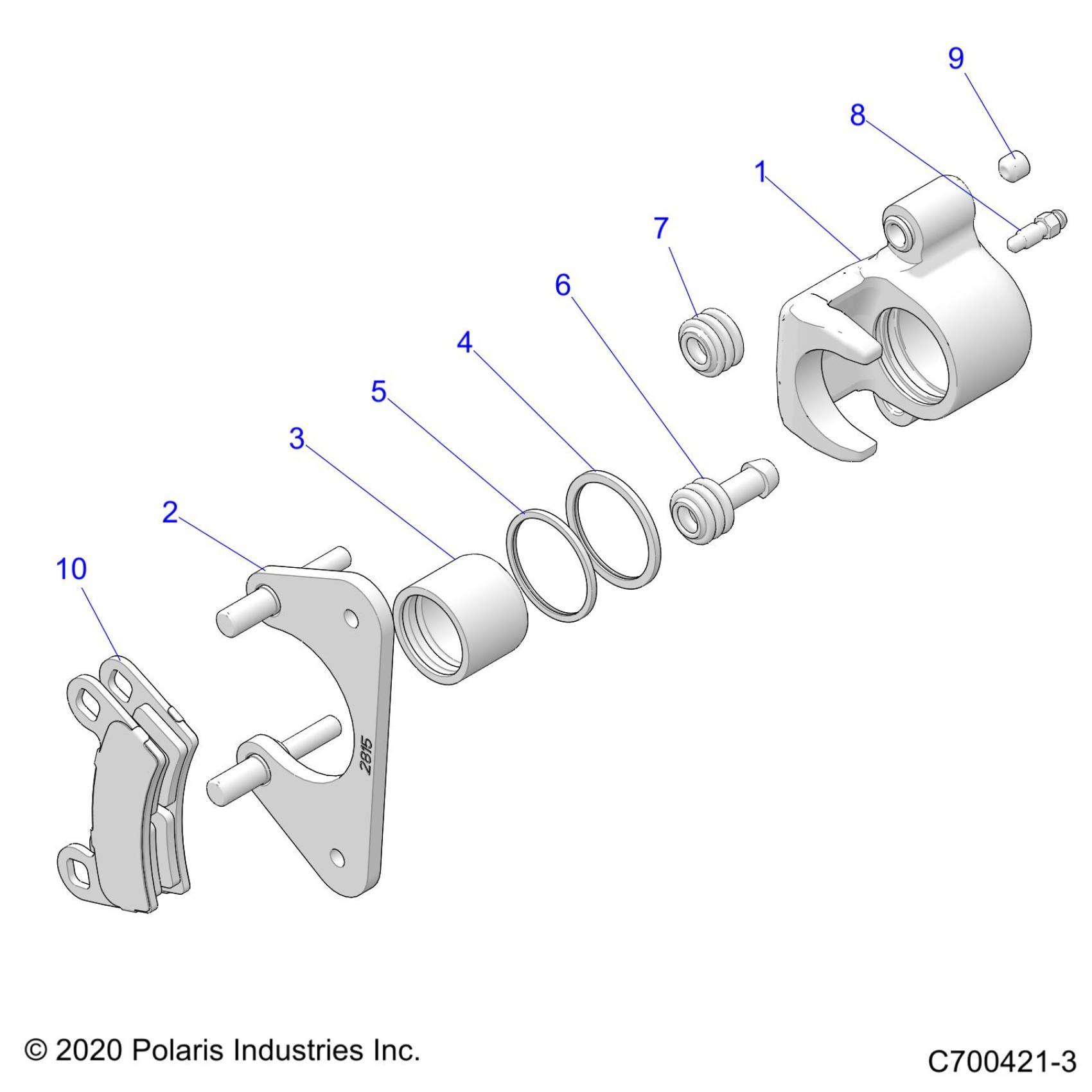

Polaris GENERAL XP 1000 TRAILHEAD LE (R02) - G22GXK99AP/BP BRAKES, REAR CALIPER - G22GXK99AP/BP (C700421-3) Diagram

#

Description

Price

1

ASM-BRK-CAL-RL-SB1.5-GROOVED [INCL. ALL]

1912816

$163.99

1

ASM-BRK-CAL-RR-SB1.5-GROOVED [INCL. ALL]

1912817

$163.99

2

ASM-CALIPER MNT,SGL BORE

1912815

$35.99

3

PISTON-BRAKE,1.5,AL,GROOVED

5138775

$39.99

4

SEAL-CALIPER INNER,1.50"

5412010

$8.40

5

SEAL-CALIPER,OUTER,1.50"

5412011

$7.19

6

BOOT-PIN BUSHING

5412505

$3.19

7

BOOT-PIN SEAL

5412506

$3.19

8

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.59

9

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.59

10

KIT-BRAKE PAD,DUAL BORE [INCL. 2 PADS]

2203318

$55.99

10

K-BRAKE,HD,PAD,DB1" [OPTION][2 PADS PER KIT]

2208936

$63.99
