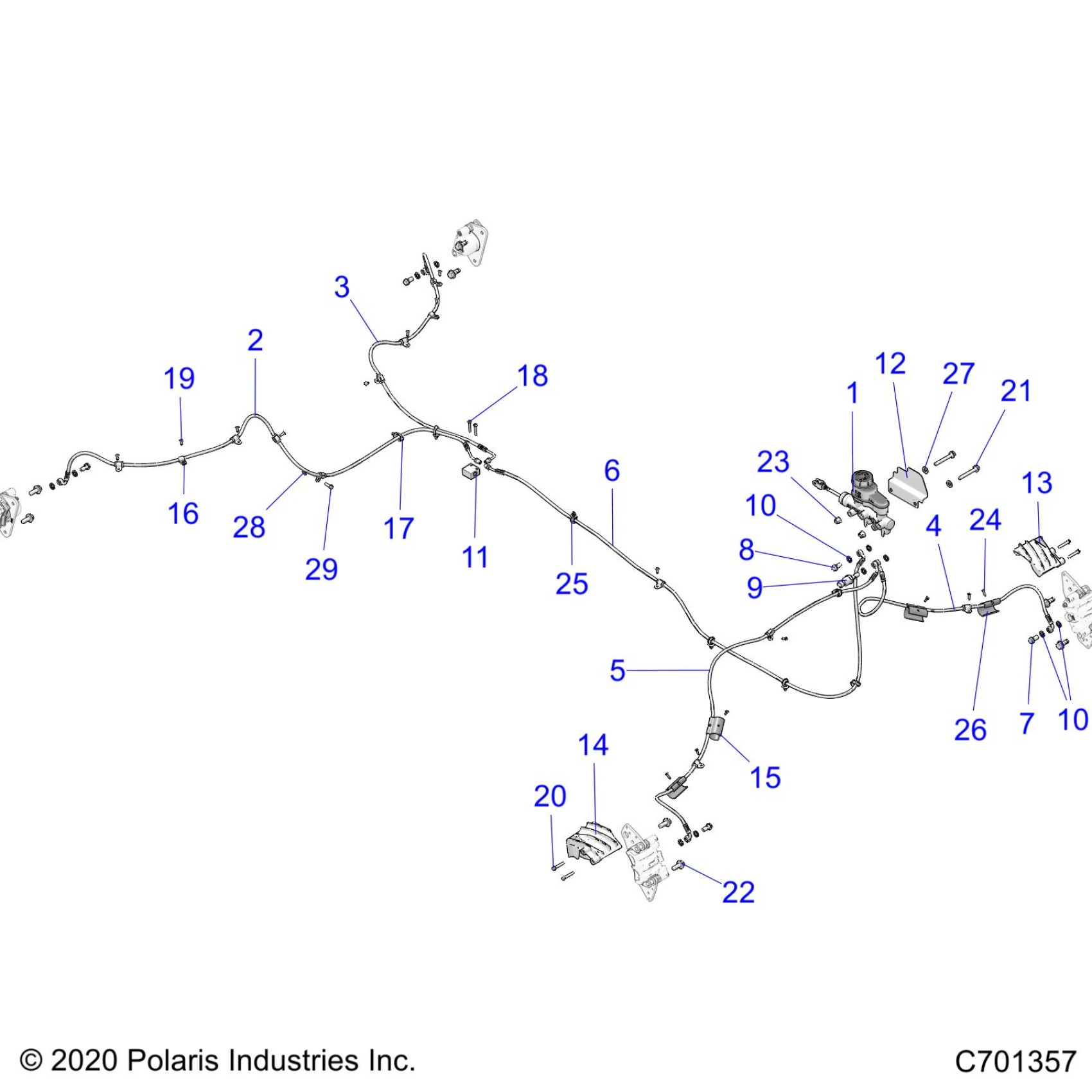

Polaris GENERAL XP 1000 TRAILHEAD LE (R02) - G22GXK99AP/BP BRAKES, BRAKE LINES AND MASTER CYLINDER - G22GXK99AP/BP (C701357) Diagram

ASM., MASTER CYLINDER, TANDEM

1911982

$131.99

LINE-BRK,RR,59,30F,90D75G,55�J

1913525

$79.99

LINE-BRK,RL,45,90F,90D165G,16�

1913524

$67.99

LINE-BRK,FL,36,20B,90SB,160�J

1913522

$63.99

LINE-BRK,FR,49,70B,90SB,236�J

1913523

$75.99

LINE-BRK,MCT,74,70B,20F,290�J

1913594

$83.99

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

SWITCH-BRK, M10X1.25, DBL, SEALED [TO 5/23/2022]

4014262

Unavailable

SWITCH-BRK,M10X1.25,DBL [FROM 5/23/2022]

4081117

$92.39

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

SEAL-STAT-0-3/8, 70EP

5413212

$4.79

FITTING-TEE,BRAKE

7052293

$59.99

SHIELD, MASTER CYLINDER

5259049

$43.99

SCRAPER,RZR,1K,FRONT,LH

5633827

$35.99

SCRAPER,RZR,1K,FRONT,RH

5633828

$35.99

CLIP, BRAKE LINE, INNER

5451487

$3.19

CLAMP, WIRE/TUBE .25 DIA

7081246

$1.49

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.49

SCR-HXFL-M6X1.0X35, W/PATCHLOK

7519280

$4.79

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.99

SCR-HXFL-M10X1.25X25 8.8 Z NY

7518760

$9.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

RIVET-POP 5/32(.251-.375)-ST-B

7621323

$1.49

CLIP-NYLON, C, FIR-TREE

7662310

$4.79

CLIP, BRAKE LINE, OUTER

5451488

$5.59

WSHR-.344X.750X.062-Y

7555954

$4.79

NUT-M6 FLANGE,NYLOC

7547274

$1.49

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19
