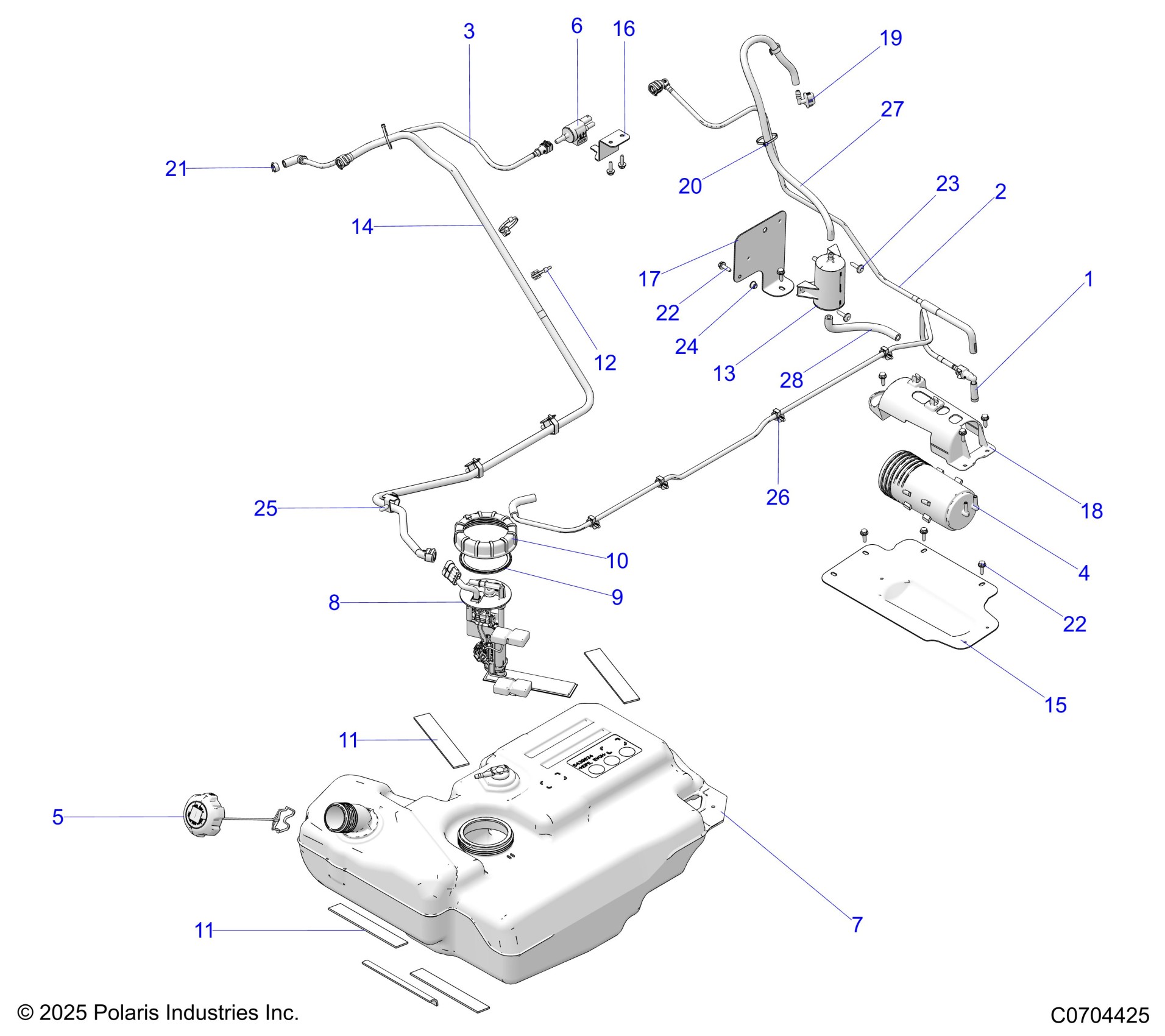

Polaris GENERAL XP 1000 PREMIUM (R01) - G26GXP99AN/AJ FUEL, FUEL SYSTEM EVAP Diagram

#

Description
Price

1

ASM-LINE,TANK TO CANISTER

2521864

$79.99

2

ASM-LINE,CANISTER TO PURGE

2521865

$79.99

3

ASM-LINE,PURGE TO TB

2521866

$59.99

4

CANISTER-ACTIVATED CARBON,BFL

2521893

$114.99

5

CAP-GAS TANK,TETHER,8.5

2521942

$36.41

6

VALVE-PURGE

2521964

$77.44

7

ASM-FUEL TANK [INCLUDES 7-11]

2635760

$1,149.99

7

ASM-FUEL TANK,1000S [TO 04/22/2025] [INCLUDES 8-10]

2522064

Unavailable

7

ASM-FUEL TANK,1000S [FROM 04/22/2025] [INCLUDES 8-10]

2522759

$1,149.99

8

K-FUEL PUMP,RZR-GEN1000 [INCLUDES 9 & 10]

2208121

Unavailable

9

GASKET-PFA,RIBBED

5413451

$12.13

10

NUT-MASON JAR

5437138

$35.71

11

PAD-BATTERY

5810290

$7.27

11

PAD-BATTERY

5810290

$7.27

12

CLIP-EDGE,1-3MM THICKNESS

7082401

$8.99

13

FILTER-CANISTER VENT

2521750

$61.10

14

ASM-FUEL LINE

2521801

$87.13

15

BRKT-MNT,CANISTER,ECOAT

5264597-329

$44.99

16

BRKT-MNT, PURGE, ECOAT

5264621-329

$39.99

17

BRKT-MNT,FILTER,ECOAT

5264647-329

$34.99

18

BRKT-MNT CANISTER,BLK

5453458-070

$14.56

19

FITTING-VENT LINE,90

5453464

$5.56

20

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

21

CLAMP-HOSE, 17/32, GREEN

7081432

$3.97

22

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

22

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

23

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

24

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.19

25

CLIP, ROUTING

7670109

$2.38

26

CLIP, ROUTING, .472 B.D., HINGED

7670116

$5.56

27

FUEL LINE-62 CENTIMETERS

8450040-62

$12.94

28

HOSE-5/16 SAE J30R7,18CM

8450131-18

$5.56
