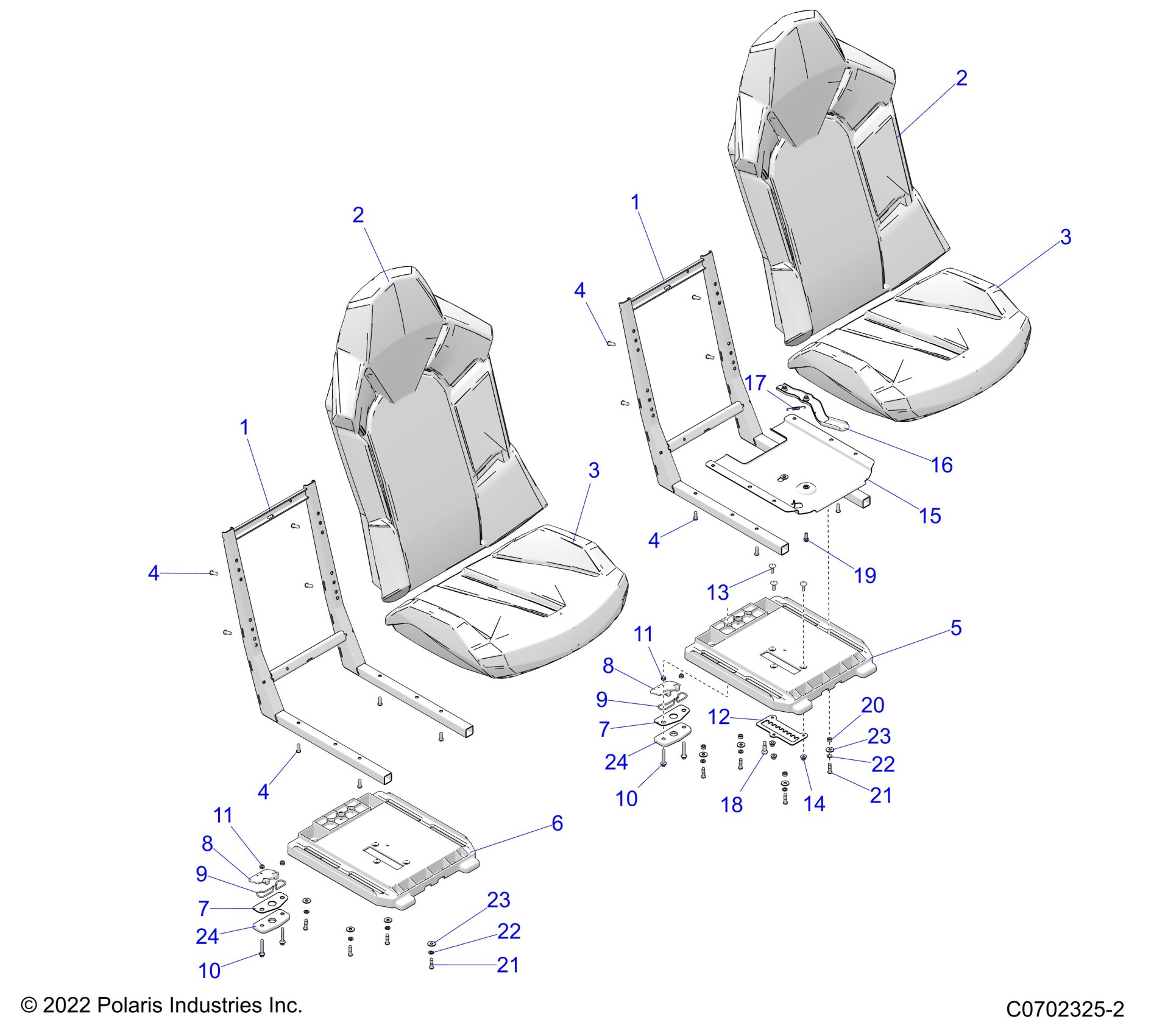

Polaris GENERAL XP 1000 PREMIUM (R01) - G26GXP99AN/AJ BODY, SEAT ASM. AND SLIDER Diagram

#

Description
Price

1

WELD-SEAT FRAME

1022256

$183.99

1

WELD-SEAT FRAME

1022256

$183.99

2

ASM-SEAT BACK,BLK/TTM,BLK ST

2693407

$287.99

2

ASM-SEAT BACK,BLK/TTM,BLK ST

2693407

$287.99

3

ASM-SEAT BTM,BLK/TTM,BLK ST

2693409

$206.79

3

ASM-SEAT BTM,BLK/TTM,BLK ST

2693409

$206.79

4

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

4

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

4

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

4

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

5

ASM., BASE, SEAT SLIDER [INCLUDES 7-13, & 24, QTY 3 OF 14]

2685704

$195.99

6

ASM., BASE, SEAT [INCLUDES 7-10, & 24]

2634889

$123.99

7

PLATE-LATCH,SEAT

5258647

$6.39

7

PLATE-LATCH,SEAT

5258647

$6.39

8

HANDLE-SEAT BASE LATCH

5437121

$4.84

8

HANDLE-SEAT BASE LATCH

5437121

$4.84

9

SPRING-LATCH,SEAT

7082653

$33.43

9

SPRING-LATCH,SEAT

7082653

$33.43

10

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

10

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

11

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

11

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

12

BRACKET, SEAT, SLIDER, ADJUSTABLE PLATE

5270634

$14.39

13

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

14

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

15

BRACKET, SEAT SLIDER MOUNTING PLATE

5257974

$63.99

16

BRACKET, SEAT SLIDER LEVER

5260733

$27.99

17

SPRING

7044099

$5.59

18

SCR-SH-M6X1.0X9.5 12.9 ZY3

7518786

$2.39

19

BOLT, SHOULDER

7518897

$1.59

20

TUBE, SPACER

5340145

$4.79

21

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$1.59

21

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$1.59

22

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

22

WASHER-1/4 SPRING LOCK-Y

7552801

$1.59

23

WASHER-FL .281X.750X.062-Y

7555859

$1.49

23

WASHER-FL .281X.750X.062-Y

7555859

$1.49

24

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

24

LATCH, COVER PLATE, BLACK

5450510-070

$4.79
