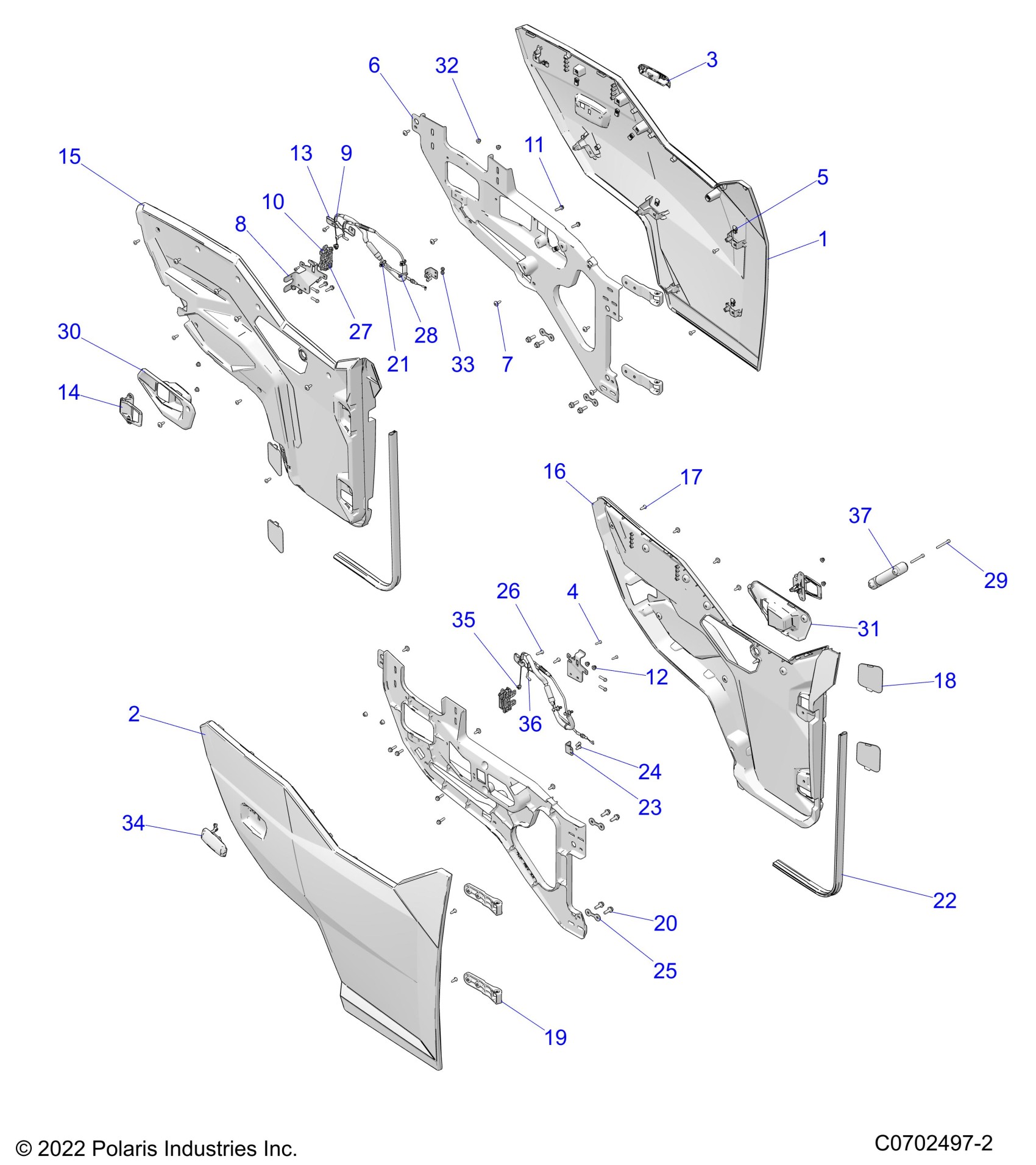

Polaris GENERAL XP 1000 PREMIUM (R01) - G26GXP99AN/AJ BODY, DOORS Diagram

#

Description
Price

1

PANEL-DOOR,OUT,FRT,LH,EARTHBLU [AN] [BN] [EARTH BLUE]

5454342-A33

$829.99

1

PANEL-DOOR,OUT,FRT,LH,M.S.GR [AJ] [BJ] [GRAPHITE SMOKE]

5454342-894

$829.99

2

PANEL-DOOR,OUT,FRT,RH,EARTHBLU [AN] [BN] [EARTH BLUE]

5454343-A33

$829.99

2

PANEL-DOOR,OUT,FRT,RH,M.S.GR [AJ] [BJ] [GRAPHITE SMOKE]

5454343-894

Unavailable

3

ASM-HANDLE,DOOR,ALUM,LH,OUT

7082353

$32.37

4

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

5

CLIP-U SPEED NUT

7081305

$1.98

6

FRAME-DOOR,CAST,LH

5639586

$180.49

6

FRAME-DOOR,CAST,RH

5639587

$180.94

7

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.17

8

BRKT-DOOR HDL,LATCH,MNT,LH,E-C

5264583-329

$14.99

8

BRKT-DOOR HDL,LATCH,MNT,RH,E-C

5264584-329

$14.99

9

CABLE-DOOR,FRONT

7083079

$109.27

10

ASM-LATCH,RTRY,2 STAGE,LH

7082459

$52.60

10

ASM-LATCH,RTRY,2 STAGE,RH

7082460

$52.60

11

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.19

12

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

13

ASM-WELD,DUAL CBL RET,LH,ECOAT

1026644-329

$32.37

13

ASM-WELD,DUAL CBL RET,RH,ECOAT

1026645-329

$32.37

14

ASM-HANDLE,DOOR INNER

7082216

$52.24

15

PANEL-DOOR,INNER,FRONT,LH,BLK

5454346-070

$141.65

16

PANEL-DOOR,INNER,FRONT,RH,BLK

5454347-070

$141.65

17

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

18

COVER-DOOR HINGE MOUNT

5452517-070

$6.46

19

HINGE-DOOR CAST,BLK

5633642-329

$40.46

20

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

21

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

22

SEAL-DOOR

5455610

$67.76

23

BRKT-CBL RET,90 DEG,ECOAT

5265518-329

$32.37

24

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.97

25

BRKT-DOOR CLAMP ECOAT

5262743-329

$13.99

26

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.17

27

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.97

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

SCR-SH-M6X1.0X50 8.8 RIE

7520482

$3.97

30

TRIM-DOOR,INNER,LH,BLK

5452290-070

$32.37

31

TRIM-DOOR,INNER,RH,BLK

5452291-070

$32.37

32

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

33

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

34

ASM-HANDLE,DOOR,ALUM,RH,OUT

7082354

$32.37

35

CLIP-DOOR LATCH

5454637

$4.99

36

RETAINER-CABLE, STEEL

7710921

$3.17

37

DOOR-GRAB HANDLE,RH,BLK

5452904-070

$36.41
