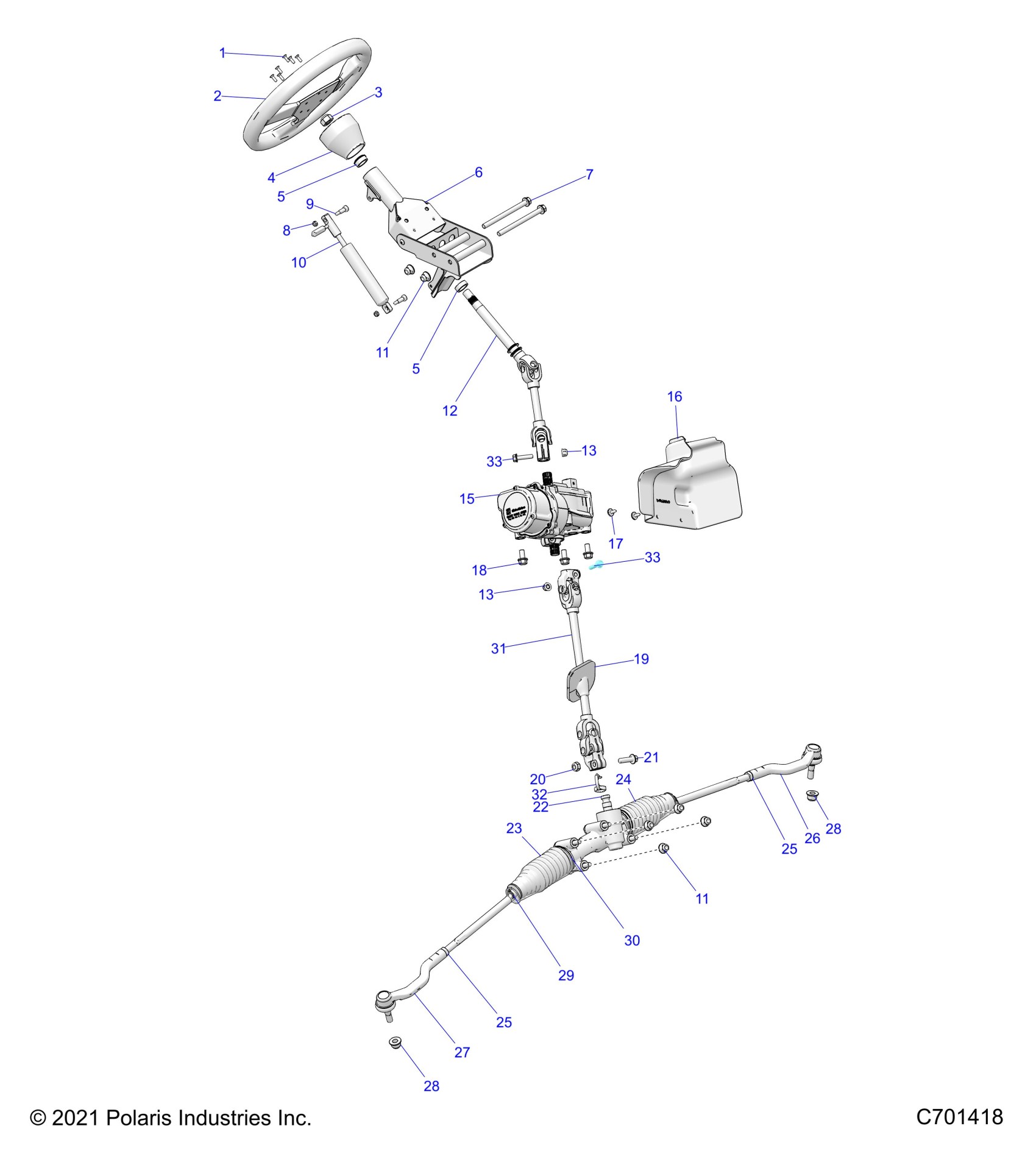

Polaris GENERAL XP 1000 LE TROY LEE (R01) - G22GXK99AR/BR STEERING, STEERING ASM. - G22GXK99AR/BR (C0705670) Diagram

#

Description
Price

1

SCR-FLHD-1032X5/8-ZB,TRX,GR8

7520731

$3.19

2

WHEEL-STEERING

1830040

$263.99

3

NUT-HEX-M16X2, 8 ZC NYL

7547506

$4.39

4

ADAPTOR-HUB,STR WHEEL,RZR,BLK

5141906-067

$75.99

5

BUSHING-STEERING

7556675

$14.95

5

BUSHING-STEERING

7556675

$14.95

6

ASM-TILT,STEERING,RVTD,M10,BLK

1824420-458

$143.99

7

BOLT-M10X1.25X130,HXFLG-OLIVED

7518665

$13.59

8

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

9

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.19

10

ASM-SHOCK,OIL LOCKING,MACH

7044098

$95.99

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

SHAFT-STEERING,UPPER,EPS

1824438

$163.99

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

15

ASM-POWER STEERING,RZR,1.5T

2414874

$1,790.79

16

COVER-EPS

5452850

$27.99

17

SCR-M6X1X16 TR/TX-M

7518936

$3.99

18

BOLT-M10X1.25X20,HXFLG-OLV D

7518558

$3.99

19

GROMMET-STEERING

5415579

$8.79

20

NUT-NY INS,M10X1.5,HEX,ZINC,YW

7547385

$1.49

21

SCR-HXFL-M10X1.5X35 8.8 ZPC

7518644

$4.79

22

ASM-GEAR BOX,STEERING,2.0T

1824924

$519.19

23

BELLOWS KIT [INCL. 29 & 30]

5417106

$27.99

24

BELLOWS KIT [INCL. 29 & 30]

5417106

$27.99

25

LOCK NUT KIT

2208131

$23.99

25

LOCK NUT KIT

2208131

$23.99

26

ROD-END,TAPERED,PROFILED,LH

7061228

$39.99

27

ROD-END,TAPERED,PROFILED,RH

7061229

$39.99

28

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

28

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

29

BELLOWS CLAMP, SMALL

7082150

$6.39

30

CLAMP, LARGE, BELLOWS

7080979

$5.59

31

SHAFT-STEERING LWR,EPS

1824931

$131.99

32

EPS SHAFT ASSEMBLY SLEEVE

5454206

$6.39

33

SCR-M8X1.25X40 10.9 HX/FL ZOD

7518954

$5.59

33

SCR-M8X1.25X40 10.9 HX/FL ZOD

7518954

$5.59
