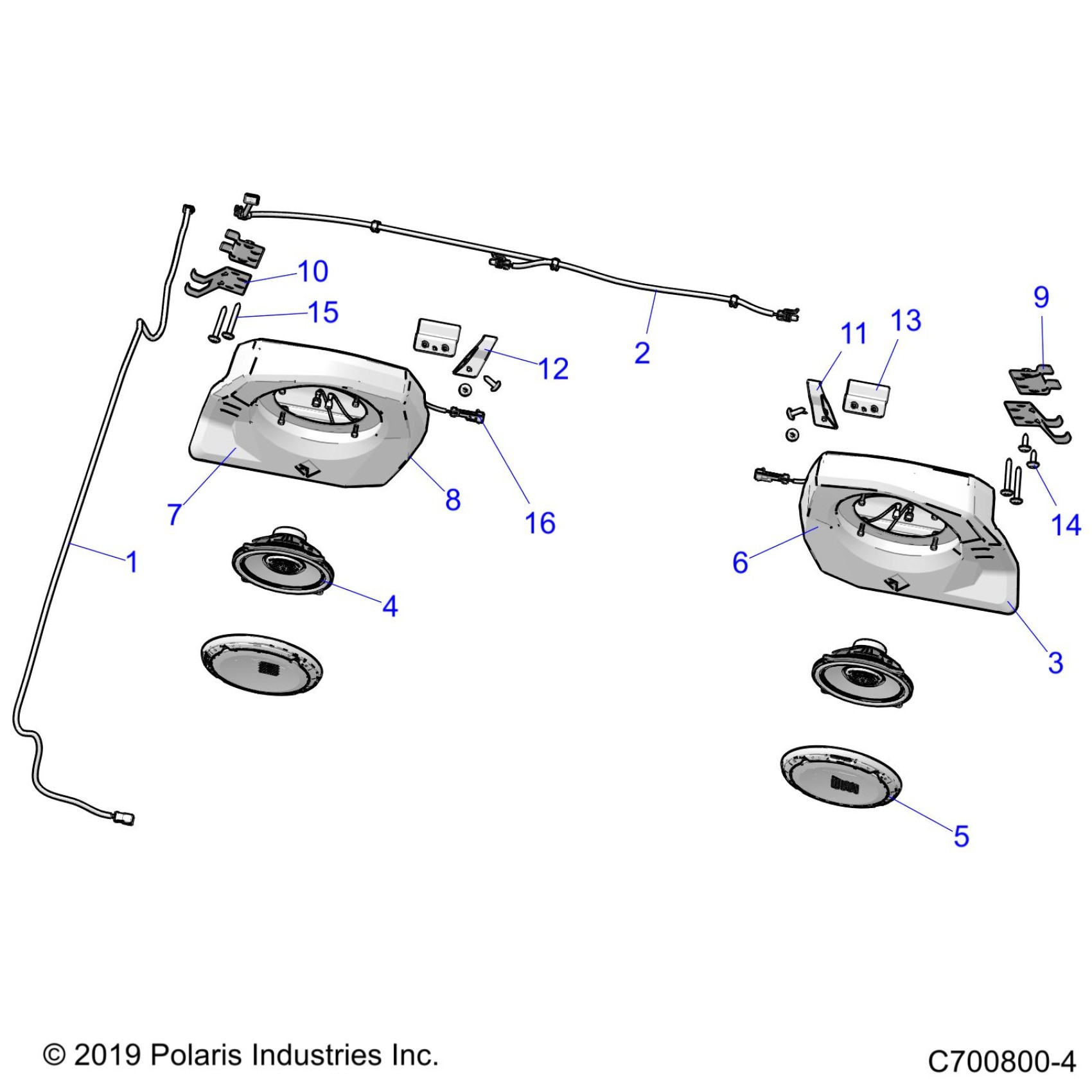

Polaris GENERAL XP 1000 DELUXE RC (R01) - G22GXJ99AC/AJ/BC/BJ ELECTRICAL, AUDIO, REAR SPEAKER - G22GXJ99AC/AJ/BC/BJ (C700800-4) Diagram

HARNESS-AUDIO,REAR

2414910

$51.99

HARNESS-AUDIO,REAR,Y

2415216

$59.99

ASM-SPEAKER,REAR,LH [INCL. 4-6]

2637784

$343.99

ASM-COAXIAL

2414537

$147.99

ASM-GRILL,RR SPKR

2414938

$27.99

ENCLOSURE-SPEAKER,REAR,LH

5456660

$127.99

ASM-SPEAKER,REAR,RH [INCL. 4-5,8]

2637785

$343.99

ENCLOSURE-SPEAKER,REAR,RH

5456661

$127.99

BRKT-AUDIO MNT UPPER,BLK

5268204-458

$30.79

BRKT-AUDIO MNT LOWER,BLK

5268205-458

$35.19

BRKT-AUDIO MNT RR LH UPPER,BLK

5268696-458

$31.99

BRKT-AUDIO MNT RR RH UPPER,BLK

5268697-458

$31.99

BRKT-AUDIO MNT RR LOWER,BLK

5268698-458

$31.99

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

SCR-TXTH-M6X1.0X50 RIE

7519841

$2.39

HARNESS-ENCLOSURE,REAR

2415210

$39.59
