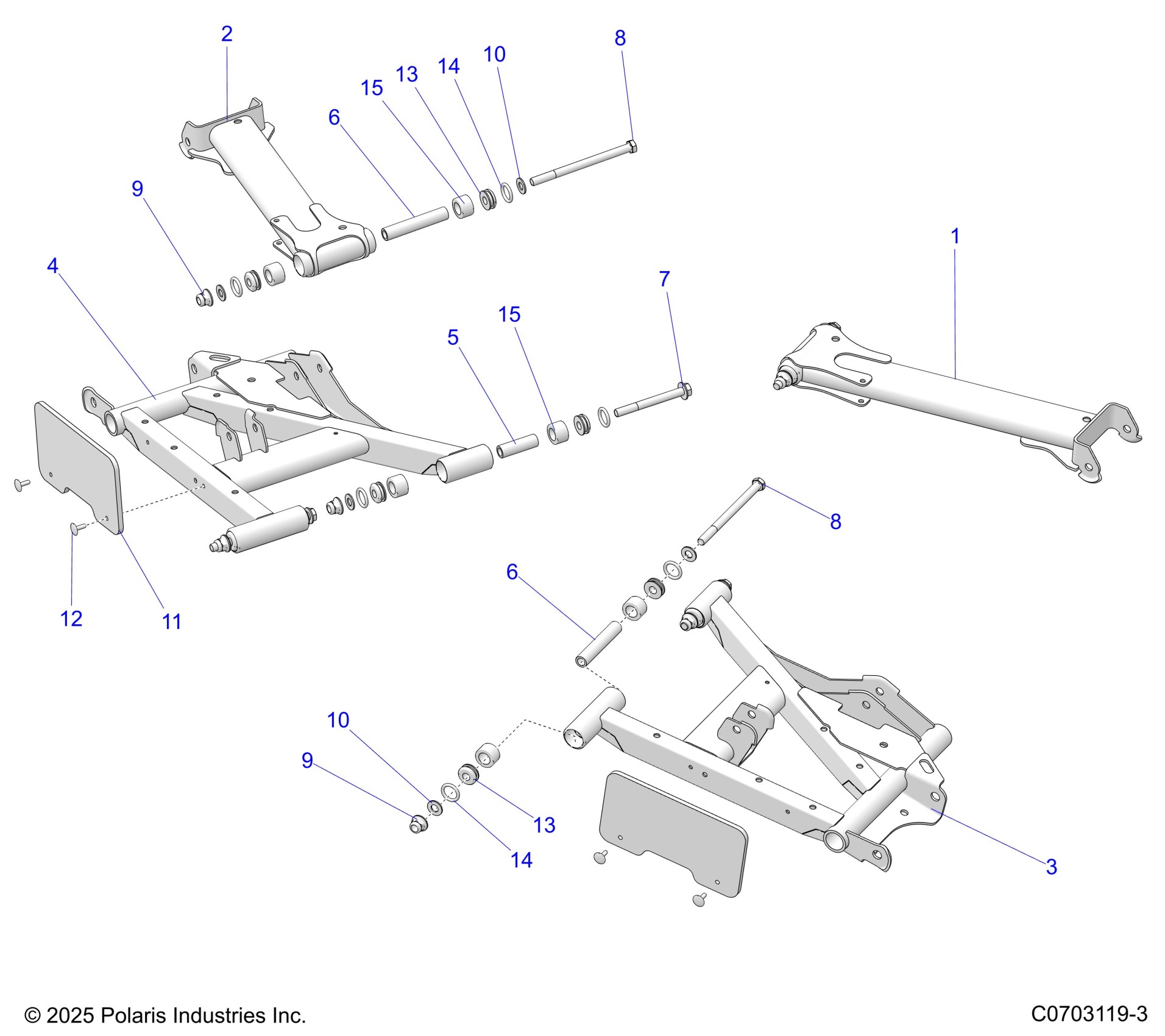

Polaris GENERAL 4 1000 SPORT (R01) - G25G4E99A4/B4 SUSPENSION, REAR CONTROL ARMS Diagram

#

Description
Price

1

WELD-A-ARM,REAR,UPR,LH,60,BLK

1021412-458

$121.02

2

WELD-A-ARM,REAR,UPR,RH,60,BLK

1021413-458

$121.02

3

WELD-A-ARM,REAR,LWR,LH,60,BLK

1021414-458

$188.79

4

WELD-A-ARM,REAR,LWR,RH,60,BLK

1021415-458

$188.79

5

SHAFT-PIVOT,SHORT,M10

5144658

$5.65

6

SHAFT-PIVOT,LONG,M10

5139967

$8.89

6

SHAFT-PIVOT,LONG,M10

5139967

$8.89

7

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.52

8

SCR-HH-M10X1.25X140,10.9 ZOD

7519897

$13.49

8

SCR-HH-M10X1.25X140,10.9 ZOD

7519897

$13.49

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

11

SHIELD, CV, REAR, BLACK

5451336-070

$32.37

12

RVT-3/16(.251-.375)ST-ST-LF-B

7621467

$1.19

13

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.65

13

CAP-PIVOT SEAL,M10

5139968

$4.84

13

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.65

13

CAP-PIVOT SEAL,M10

5139968

$4.84

14

O-RING,2-210

5415653

$1.21

14

O-RING,2-210

5415653

$1.21

15

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

15

BUSHING-STANDARD, SUSP, M10

5452233

$2.38
