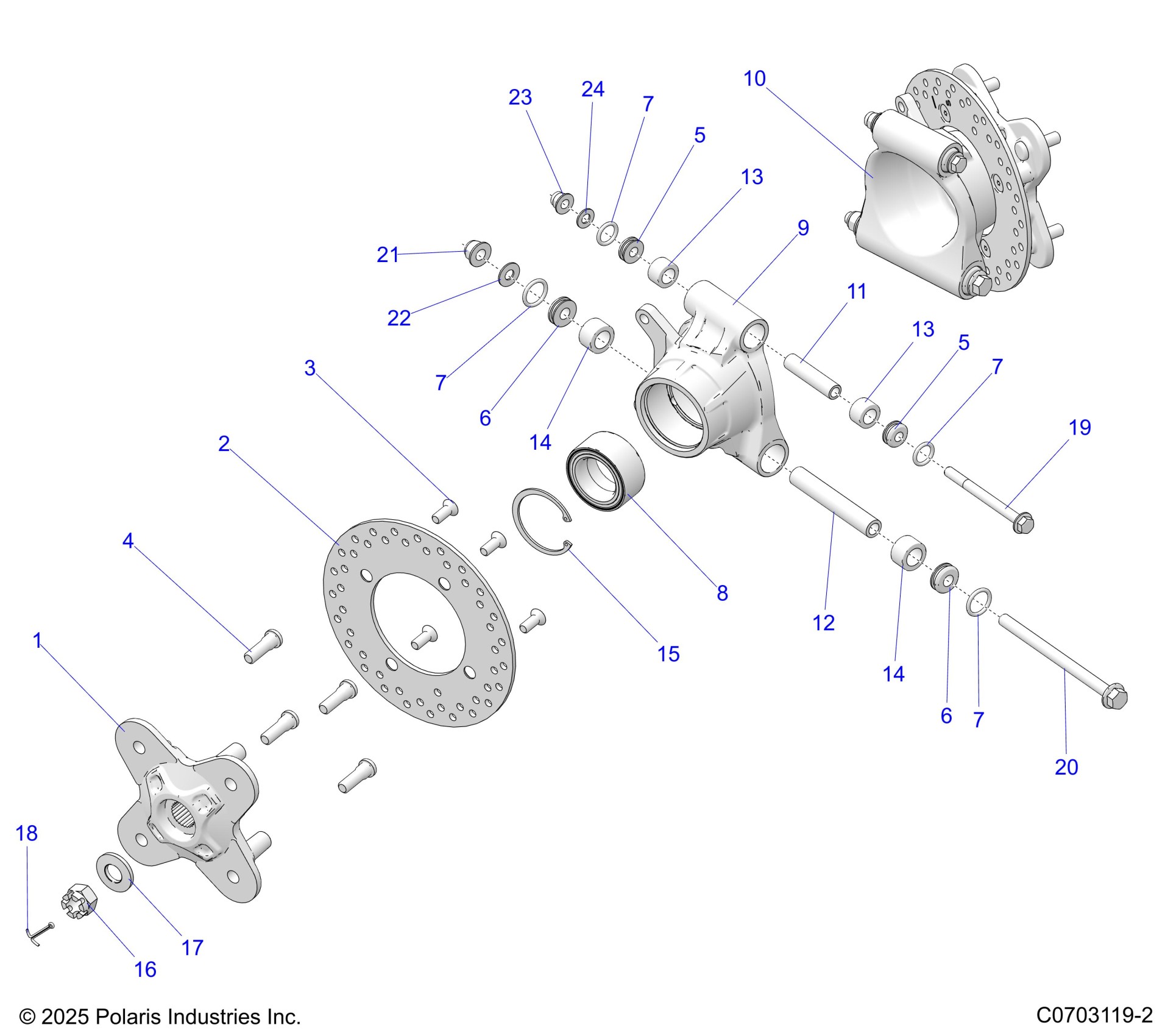

Polaris GENERAL 4 1000 SPORT (R01) - G25G4E99A4/B4 SUSPENSION, REAR CARRIER Diagram

#

Description
Price

1

HUB-WHEEL,MACH,BLK

5142019-458

Unavailable

2

ROTOR,BRAKE

5263266

$67.99

3

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.99

4

STUD-WHEEL,M12-1.5

7519753

$4.79

5

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.59

5

O-RING,2-210

5415653

$1.49

5

CAP-PIVOT SEAL,M10

5139968

$4.79

5

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.59

5

O-RING,2-210

5415653

$1.49

5

CAP-PIVOT SEAL,M10

5139968

$4.79

6

ASM-PIVOT CAP, SEALED, M12 [INCLUDES CAP & O-RING]

1543612

$5.59

6

CAP-PIVOT SEAL,M12

5139992

$3.99

6

ASM-PIVOT CAP, SEALED, M12 [INCLUDES CAP & O-RING]

1543612

$5.59

6

CAP-PIVOT SEAL,M12

5139992

$3.99

7

O-RING,2-213

5415654

$1.49

7

O-RING,2-213

5415654

$1.49

7

O-RING,2-213

5415654

$1.49

7

O-RING,2-213

5415654

$1.49

8

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

8

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

9

CARRIER, BEARING, WHEEL, LH

5139979

$99.99

10

CARRIER, BEARING, WHEEL, RH

5139980

$99.99

11

SHAFT-PIVOT, SHORT, M10

5139990

$5.59

12

SHAFT-PIVOT, LONG, M12

5139991

$8.79

13

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

13

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

14

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

14

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

15

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

16

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

17

WSHR-AXLE,M18,42X4.5

7557134

$7.99

18

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

19

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$13.59

20

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$11.19

21

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

22

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.79

23

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

24

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
