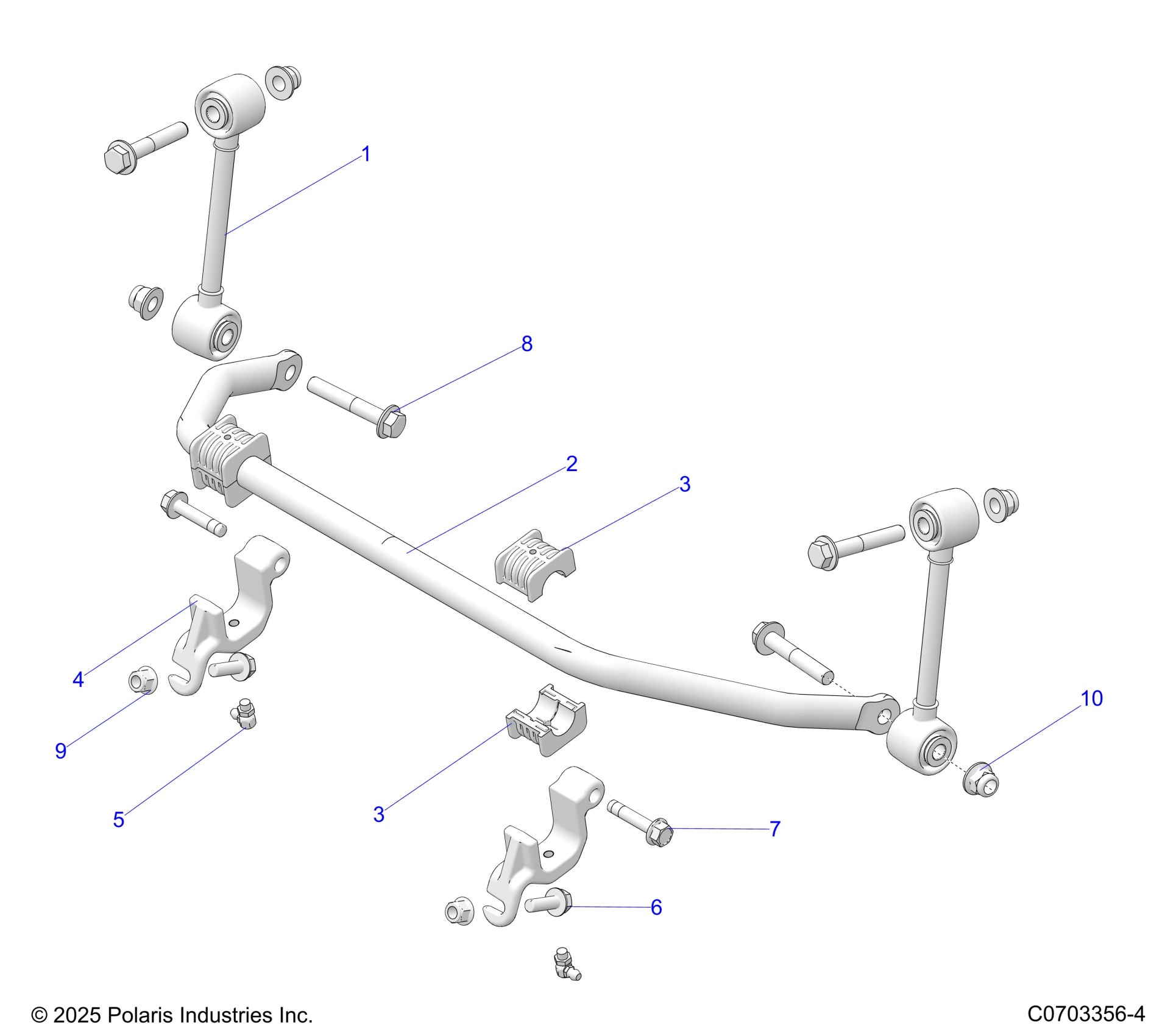

Polaris GENERAL 4 1000 SPORT (R01) - G25G4E99A4/B4 SUSPENSION, FRONT STABILIZER BAR Diagram

#

Description

Price

1

ASM-LINK STABILIZER BAR,157MM

1543852

$119.99

2

BAR, STABILIZER

5338117

$135.99

3

BUSHING, SWAY BAR

5452274

$3.99

3

BUSHING, SWAY BAR

5452274

$3.99

4

BRACKET, CAST, SWAY BAR

5634604

$39.99

5

FITTING-ZERK.25 S/TAP90D-3054B

7080510

$5.59

6

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

7

SCR-HXFL-M8X1.25X40 8.8 ZODP30

7519267

$3.99

8

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
