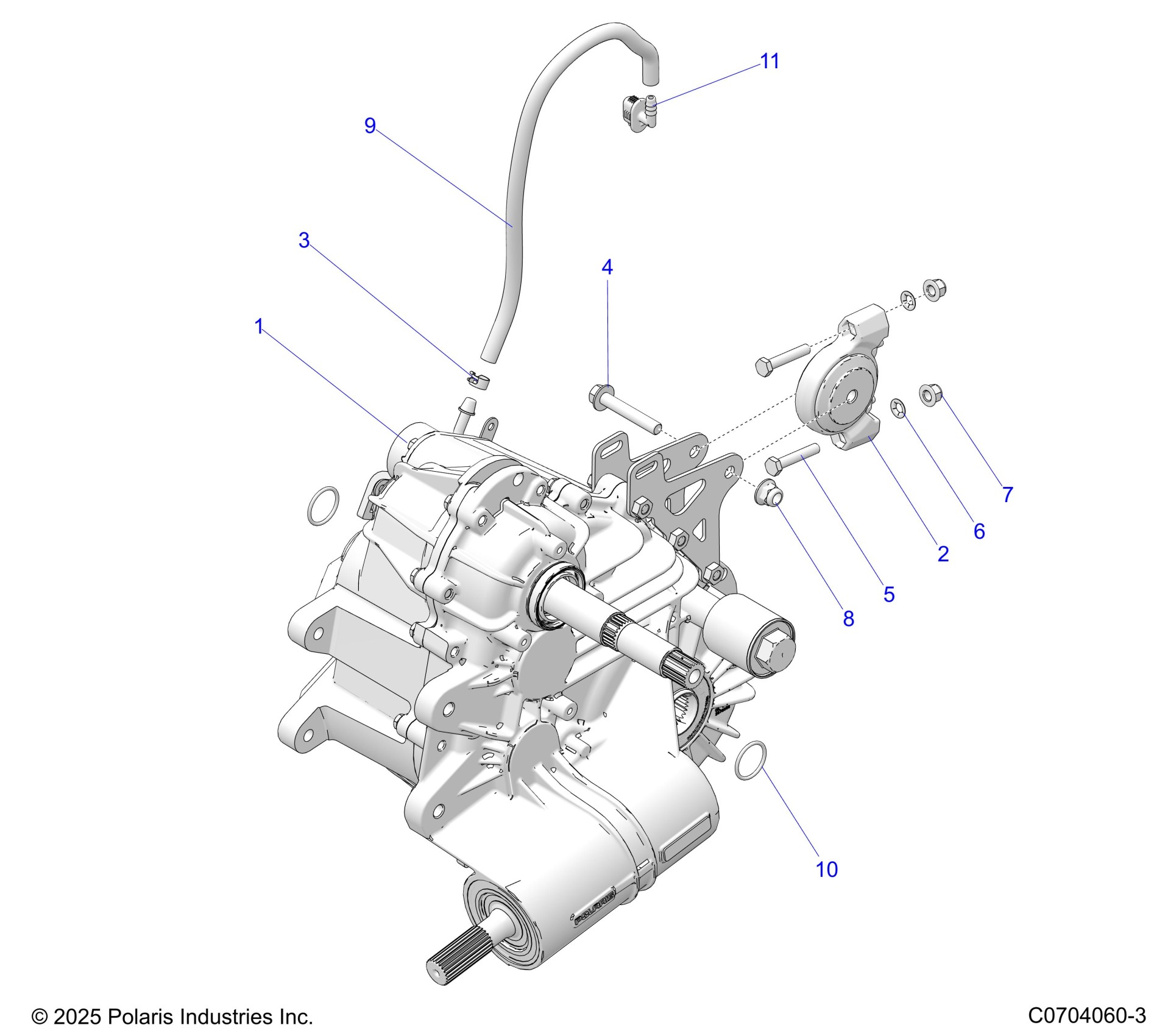

Polaris GENERAL 4 1000 SPORT (R01) - G25G4E99A4/B4 DRIVE TRAIN, MAIN GEARCASE MOUNTING Diagram

#

Description

Price

1

ASM-GEARCASE [FOR INTERNALS SEE DRIVE TRAIN, MAIN GEARCASE INTERNALS]

1334263

Unavailable

2

MOUNT-ISOLATOR,70 DURO

1333242

$83.99

3

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

4

SCR-HXFL-M10X1.25X60 8.8 ZOD

7518563

$3.19

5

SCREW-HH M8X1.25X45 8.8 ZOD

7519097

$1.59

6

NUT-5/16-PAL-Y

7547030

$4.79

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

FUEL LINE-43 CENTIMETERS

8450040-43

$8.79

10

O-RING,28.24X2.62,VITON,60A

5143247

$5.60

11

FITTING-VENT LINE,90

5453464

$5.59
