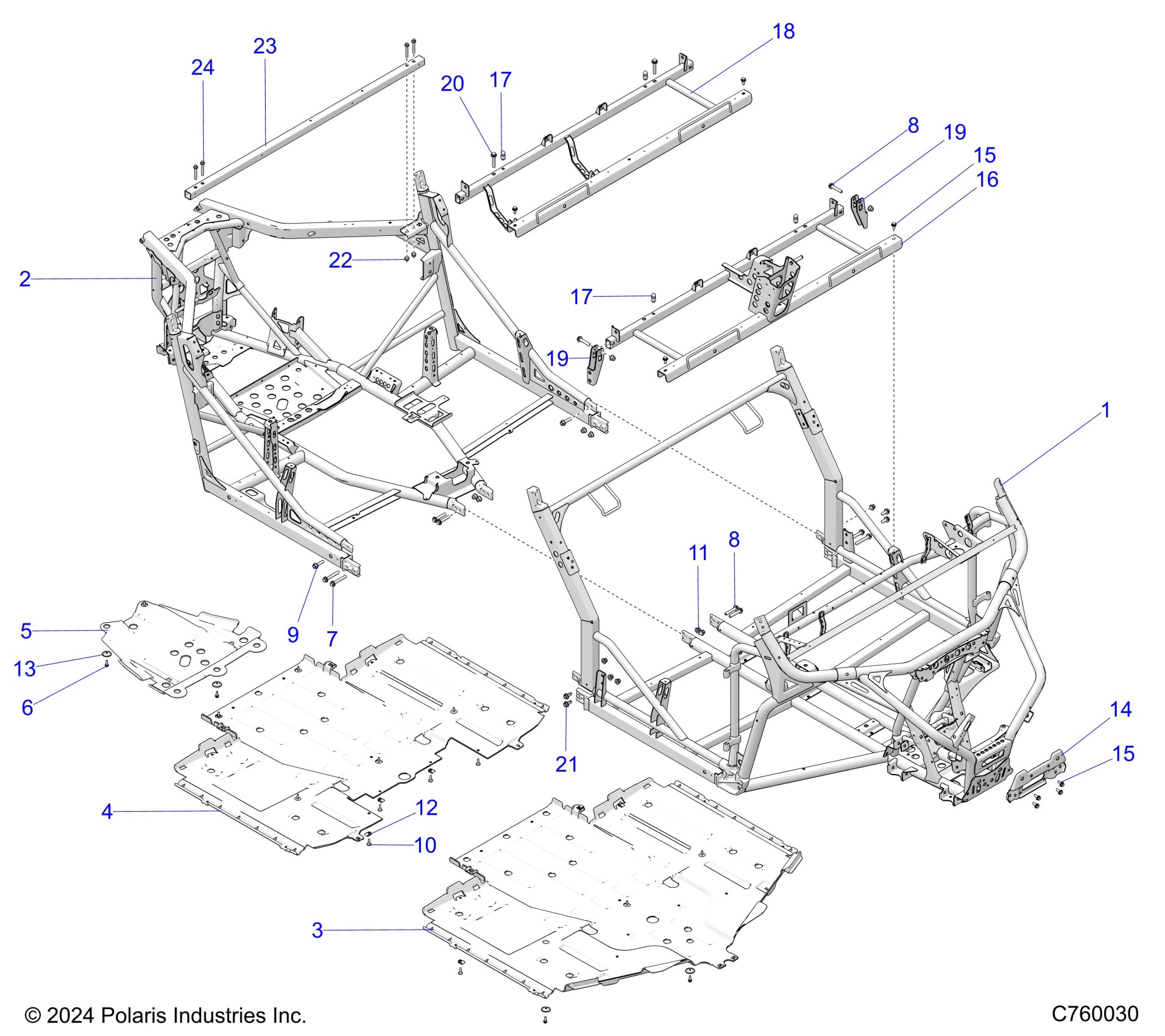

Polaris GENERAL 4 1000 SPORT (R01) - G25G4E99A4/B4 CHASSIS, MAIN FRAME - G25G4E99 (C760030) Diagram

#

Description
Price

1

WELD-MAIN FRAME,FRONT,BLK

1024256-458

$2,999.99

2

WELD-MAIN FRAME,CREW,BLK

1024120-458

$2,594.99

3

PLATE-SKID,BLK

5452060-070

$174.99

4

PLATE-SKID,CREW,BLK

5452851-070

$169.99

5

PLATE-SKID,REAR,BLK

5456433-070

$182.54

6

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

7

BOLT-M10X1.25X70,HXFLG-OLIVE D

7518561

$7.14

8

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.38

8

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.38

9

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.56

10

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.19

13

WASHER-SKID PLATE

7556065

$4.76

14

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$52.60

15

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.38

15

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.38

16

WELD-SEAT BASE,FRONT,E-COAT

1022146-329

$396.97

17

LATCH, PLUNGER, SEAT

5632848

$13.49

17

LATCH, PLUNGER, SEAT

5632848

$13.49

18

WELD-SEAT BASE,REAR.E-COAT

1022147-329

$280.78

19

BRKT-SEAT SUPPORT,CREW,E-COAT

1026646-329

$44.51

19

BRKT-SEAT SUPPORT,CREW,E-COAT

1026646-329

$44.51

20

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.76

21

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.97

22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

23

ASM-TUBE,TOP FRAME

1029761

$109.51

24

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99
