- GENERAL 4 1000 DELUXE RC (R02) - G22G4J99AP/BP
SUSPENSION, FRONT SHOCK INTERNALS - G22G4J99AP/BP (702007)

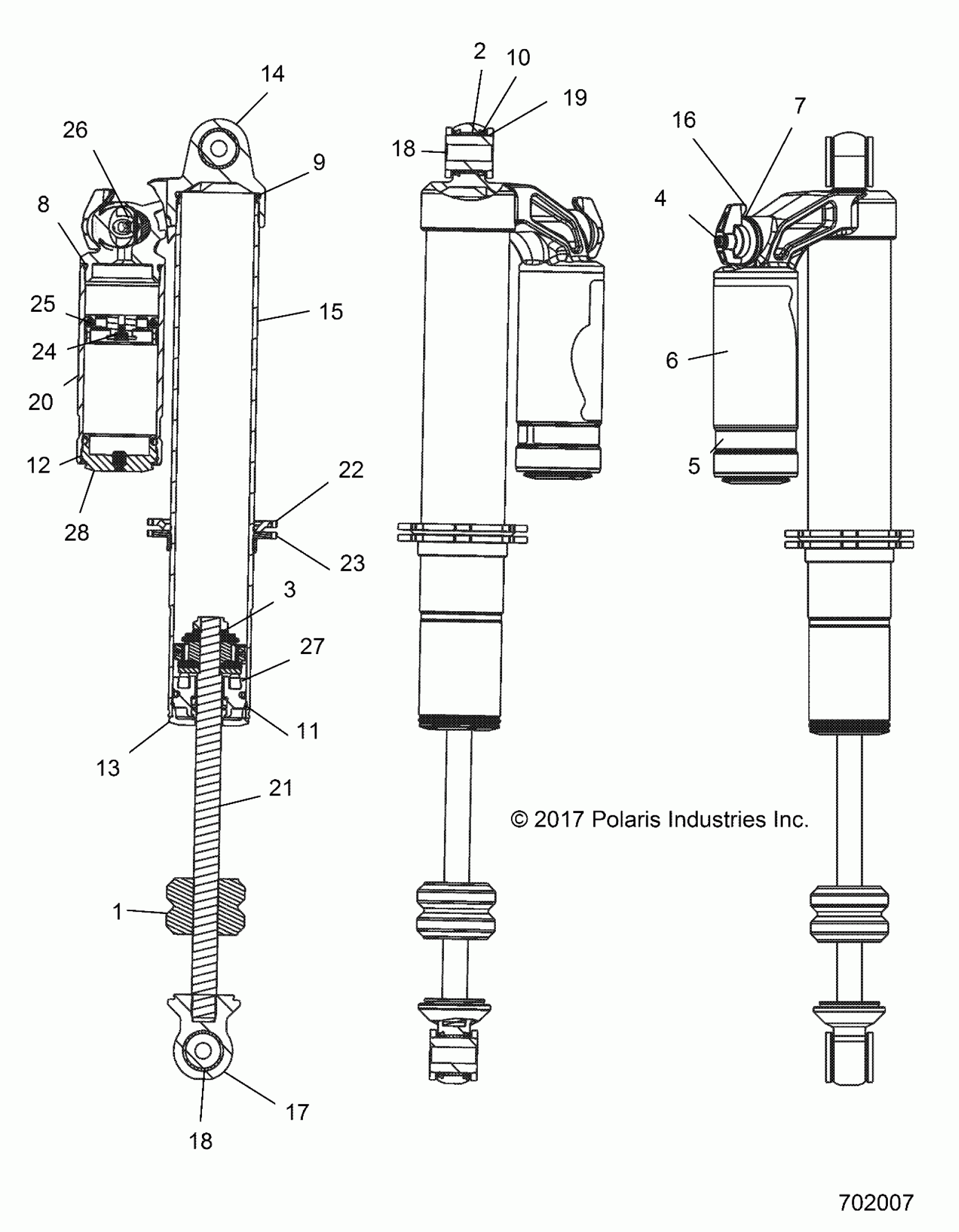

Polaris GENERAL 4 1000 DELUXE RC (R02) - G22G4J99AP/BP SUSPENSION, FRONT SHOCK INTERNALS - G22G4J99AP/BP (702007) Diagram
#
Description
Price
-
SHOCK-FRONT,PIGGYBK,LH [INCL. ALL]
7045834
$589.37
-
SHOCK-FRONT,PIGGYBK,RH [INCL. ALL]
7045835
$589.37
1
BUMPER, B/O SHAFT
1501028
$26.39
2
BUSHING, EYELET
1501010
$19.99
3
Fastener, Standard: Nut, Lock [1/2-20 X 0.313 TLG]
-------
Unavailable
4
SCREW, #4, SS PAN
1501011
$13.59
5
DECAL, PERFORMANCE SERIES
1501012
$14.39
6
DECAL, RESERVOIR
1501013
$10.39
7
DECAL, BASE VALVE, 3 POSITION
1501105
$36.41
8
O-RING,.103W-1.737ID
1500623
$6.39
9
SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC
-------
Unavailable
10
SEAL - CANNED WEATHER
1501274
$12.79
11
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS
-------
Unavailable
12
RING-RETAINING, WIRE 2.050
1501015
$9.59
13
CAP, BEARING
1501100
$39.99
14
BODY, CAP, PIGGY BACK
-------
Unavailable
14
BODY, CAP, PIGGY BACK
-------
Unavailable
15
BODY, 1.83X13.1TLG
1501031
$96.79
16
KNOB, DAMP. ADJ, BLK
1501108
$20.22
17
EYELET, SHAFT
1501032
$74.79
18
EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG
1501087
$23.99
18
EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG
1501087
$23.99
19
EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG
1501088
$6.39
20
RESERVOIR:0 1.834 BORE,5.000TLG ALUMINUM THREADED ID SHORT OD STEP
-------
Unavailable
21
SHAFT, .62X10.1TLG
1501033
$99.99
22
SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED
-------
Unavailable
23
SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED
-------
Unavailable
24
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE
-------
Unavailable
25
ASM., PISTON, FLOAT
-------
Unavailable
26
DAMPING ADJUSTMENT ASSEMBLY
1501186
$280.78
27
ASM., BEARING, .62SHAFT
1501185
Unavailable
28
ASM., END CAP, RESERVOIR
-------
Unavailable
