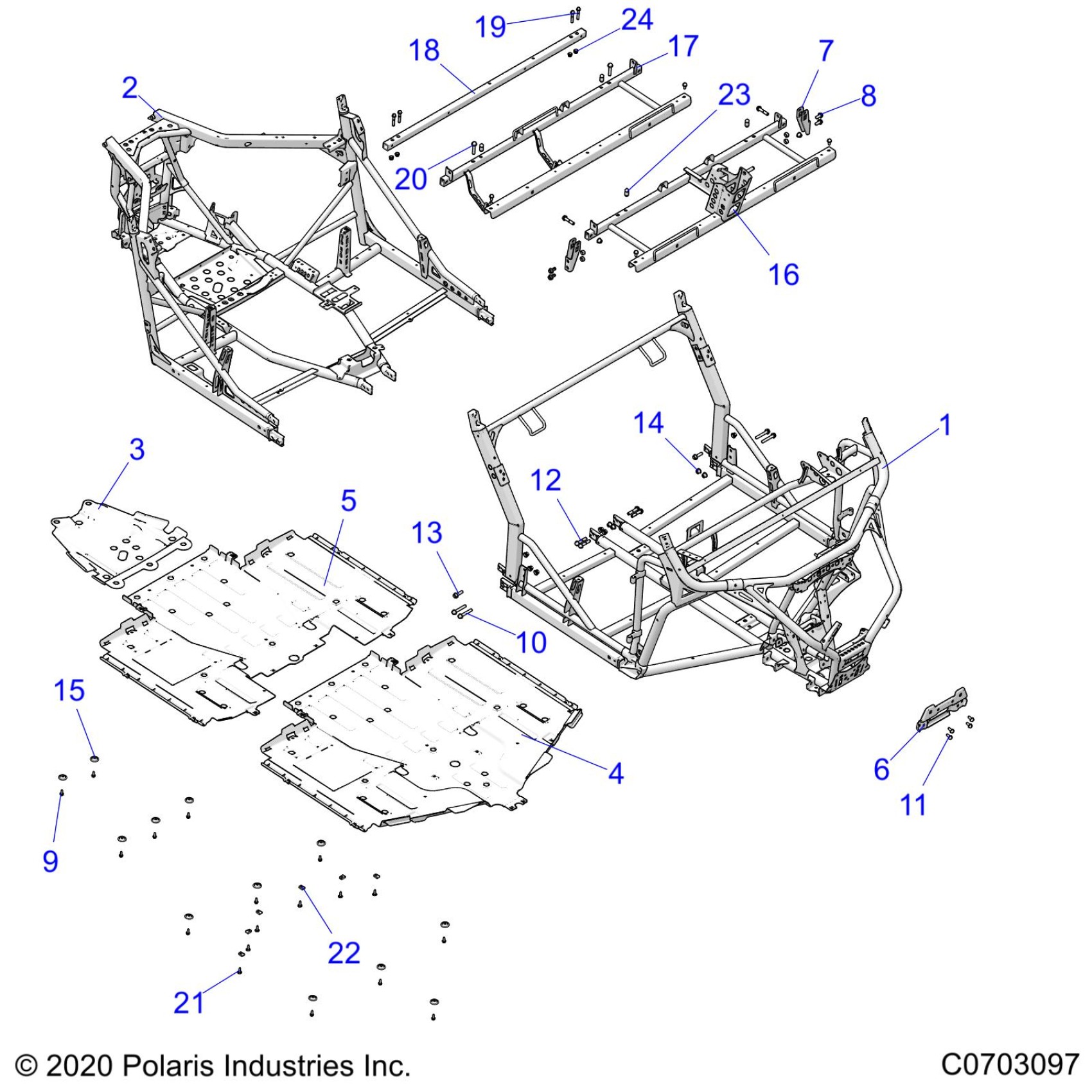

Polaris GENERAL 4 1000 DELUXE RC (R02) - G22G4J99AP/BP CHASSIS, MAIN FRAME AND SKID PLATES - G22G4J99AP/BP (C0703097) Diagram

WELD-MAIN FRAME,FRONT,BLK

1024256-458

$2,437.59

WELD-MAIN FRAME,CREW,BLK

1024120-458

$2,173.59

PLATE-SKID,REAR,BLK

5456433-070

$175.99

PLATE-SKID,BLK

5452060-070

$131.99

PLATE-SKID,CREW,BLK

5452851-070

$127.99

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

BRKT-SEAT SUPPORT,CREW,E-COAT

1026646-329

$43.99

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$3.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

BOLT-M10X1.25X70,HXFLG-OLIVE D

7518561

$7.19

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-SKID PLATE

7556065

$4.79

WELD-SEAT BASE,FRONT,E-COAT

1022146-329

$311.99

WELD-SEAT BASE,REAR.E-COAT

1022147-329

$219.99

ASM-TUBE,TOP FRAME

1029761

$87.99

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

LATCH, PLUNGER, SEAT

5632848

$13.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
