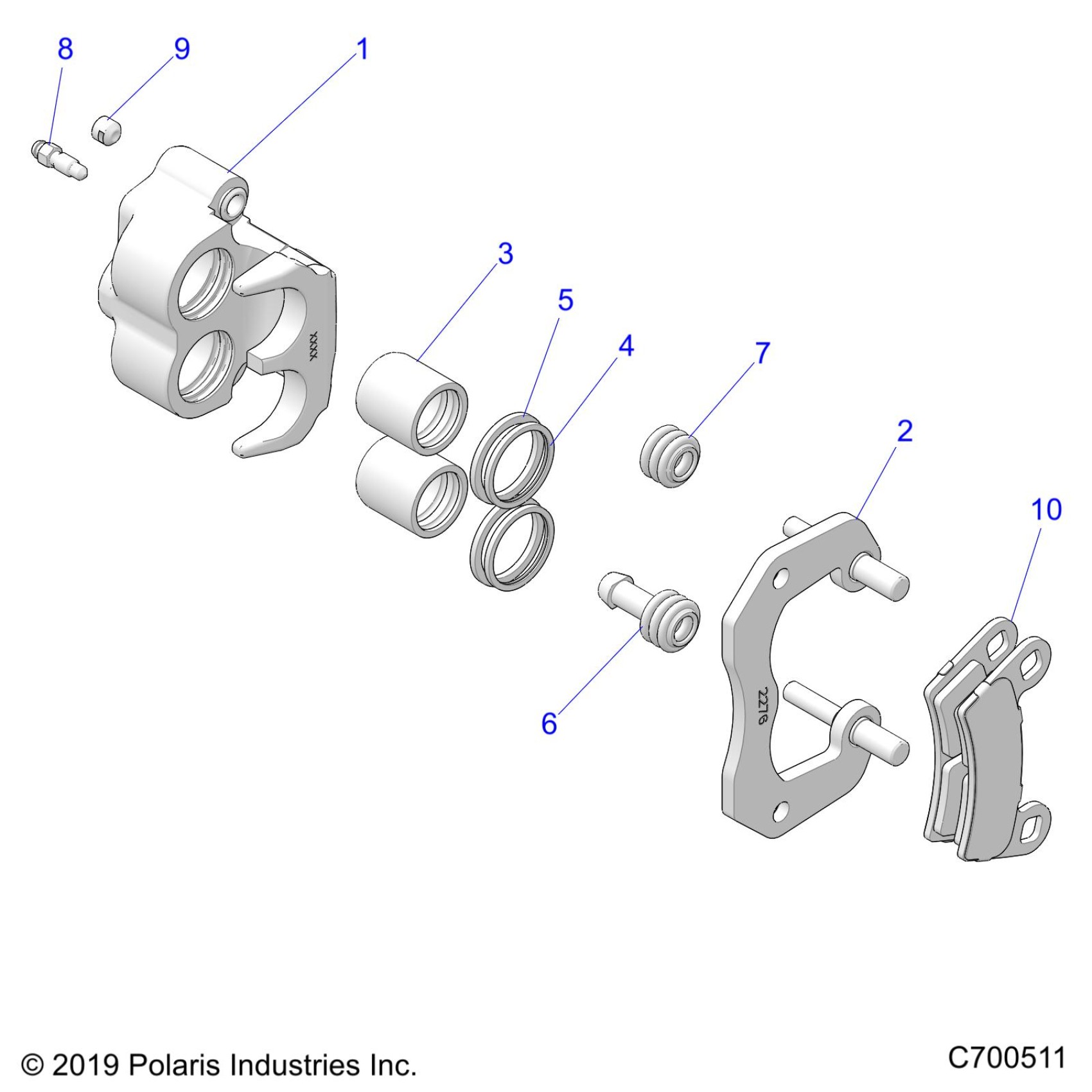

Polaris GENERAL 4 1000 DELUXE RC (R02) - G22G4J99AP/BP BRAKES, REAR CALIPER - G22G4J99AP/BP (C700511) Diagram

#

Description

Price

1

ASM-CLPR,DB1.18,LH,GROOVED [INCL. ALL]

1912277

$271.99

1

ASM-CLPR,DB1.18,RH,GROOVED [INCL. ALL]

1912278

$271.99

2

ASM-CALIPER MNT,DB,3.0",APX

1912276

$35.99

3

PISTON-BRAKE,1.188",AL,GROOVED

5138832

$27.99

4

SQUARE RING-MOLDED (.094)

5410779

$10.51

5

SQUARE RING, MOLDED (.103 X .134)

5410780

$10.51

6

BOOT-PIN BUSHING

5412505

$3.19

7

BOOT-PIN SEAL

5412506

$3.19

8

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.59

9

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.59

10

KIT-BRAKE PAD,DUAL BORE [INCL. 2 PADS]

2203318

$55.99

10

K-BRAKE,HD,PAD,DB1" �[OPTION][2 PADS PER KIT]

2208936

$63.99
