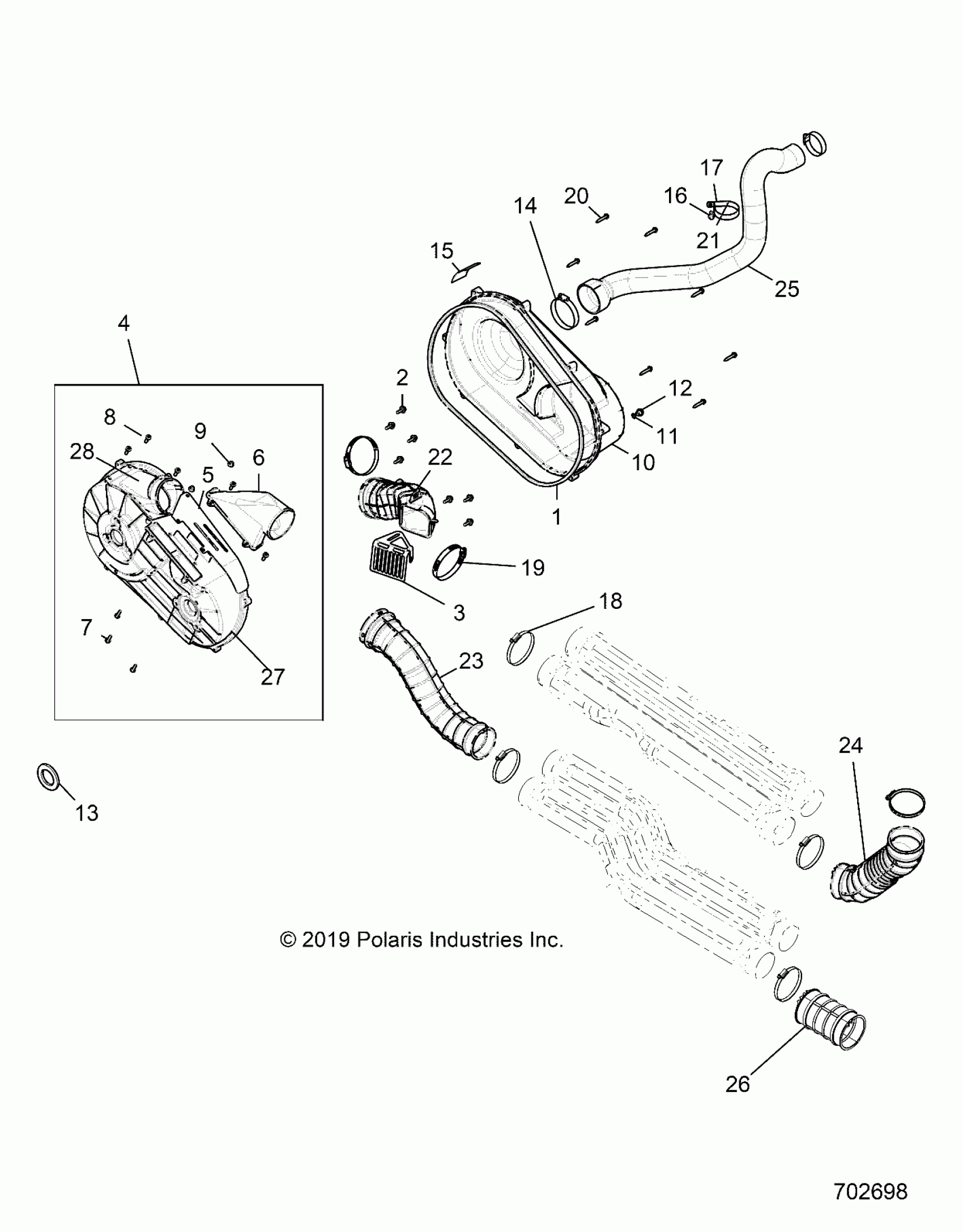

Polaris GENERAL 4 1000 DELUX OPT1 (R05) - G20G4J99AS/BS DRIVE TRAIN, CLUTCH COVER AND DUCTING - G20G4J99AS/BS (702698) Diagram

#

Description
Price

1

SEAL, OUTER CLUTCH COVER

5521831

Unavailable

2

ASM-BOLT/WASHER,20 MM

7519278

$4.79

3

BRKT-BELT SCREEN

5256732

$11.19

4

ASM., COVER, CLUTCH, INNER [INCL. 5-9, 27,28]

2637760

$159.99

5

SHIELD,CLUTCH COVER

5268504

$91.99

6

DUCT-CLUTCH,AIR INLET

5439086

$39.99

7

SCREW

7518546

$3.19

8

SCREW

7519205

$1.59

9

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

10

K-CVR,CLUTCH,OTR,GENERAL [INCL. 11-12 & DECAL]

2207414

$179.99

11

O RING-.364X.504X.07

5410542

Unavailable

12

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

13

SEAL-COVER,PTO

5813708

$23.99

14

CLAMP, HOSE

7080907

$11.19

15

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

16

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

17

CLAMP-FUEL FILTER

7081129

$4.23

18

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

19

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

20

SCREW

7519330

$3.99

21

CLAMP-HOSE,2.50,SS

7080451

$7.19

22

HOSE-CLUTCH,AIR OUTLET

5451061

$107.99

23

HOSE-CLUTCH,INLET

5415467

$55.99

24

HOSE-INTAKE,DUCT

5415468

$43.99

25

HOSE-CLUTCH,SCNDRY INTK, RBR

5416058

$91.99

26

HOSE-INTAKE,DUCT

5415811

$27.99

27

COVER-CLUTCH,INNER,BLK

5454487-070

$143.99

28

DUCT-CLUTCH,AIR OUTLET

5450846

$39.99
