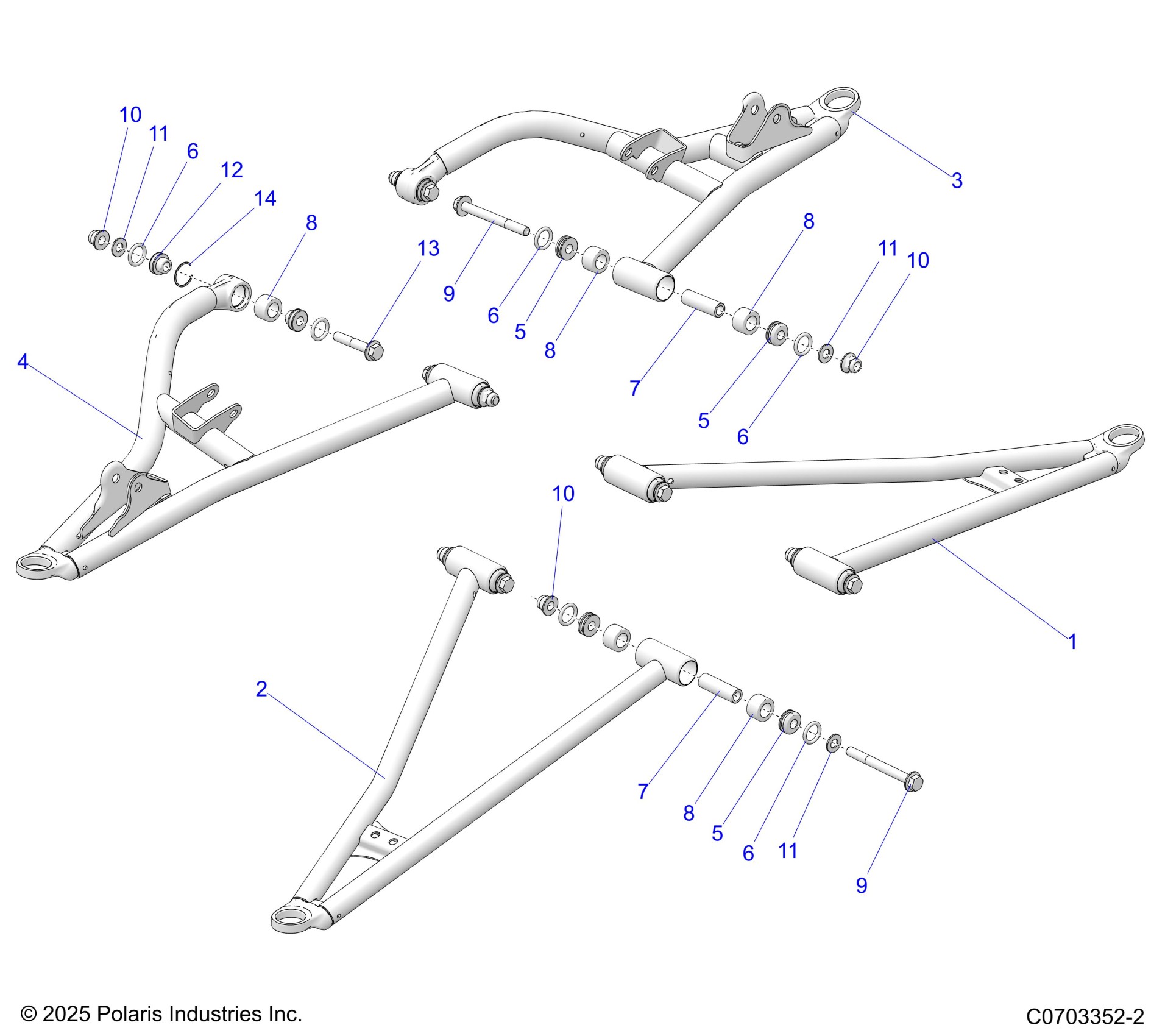

Polaris GENERAL 1000 SPORT (R01) - G26GAE99A4 SUSPENSION, FRONT CONTROL ARMS Diagram

#

Description
Price

1

WELD-CTRL ARM,LWR,FRT,LH,60,BL

1021416-458

$127.99

2

WELD-CTRL ARM,LWR,FRT,RH,60,BL

1021417-458

$127.99

3

WELD-CTRL ARM,UPR,FRT,LH,60,BK

1023223-458

$195.99

4

WELD-CTRL ARM,UPR,FRT,RH,60,BK

1023224-458

$195.99

5

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.59

5

CAP-PIVOT SEAL,M10

5139968

$4.79

5

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.59

5

CAP-PIVOT SEAL,M10

5139968

$4.79

5

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.59

5

CAP-PIVOT SEAL,M10

5139968

$4.79

6

O-RING,2-210

5415653

$1.49

6

O-RING,2-210

5415653

$1.49

6

O-RING,2-210

5415653

$1.49

6

O-RING,2-210

5415653

$1.49

7

SHAFT-PIVOT,SHORT,M10

5144658

$5.59

7

SHAFT-PIVOT,SHORT,M10

5144658

$5.59

8

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

8

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

8

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

8

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

9

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

9

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

12

ASM-PIVOT CAP,SEALED,SLIM,M10 [INCLUDES CAP & O-RING]

1543735

$13.59

12

CAP-PIVOT SEAL,M10,SLIM

5140343

Unavailable

13

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

14

28MM SPIRAL RING,STEEL

7710845

$3.59
