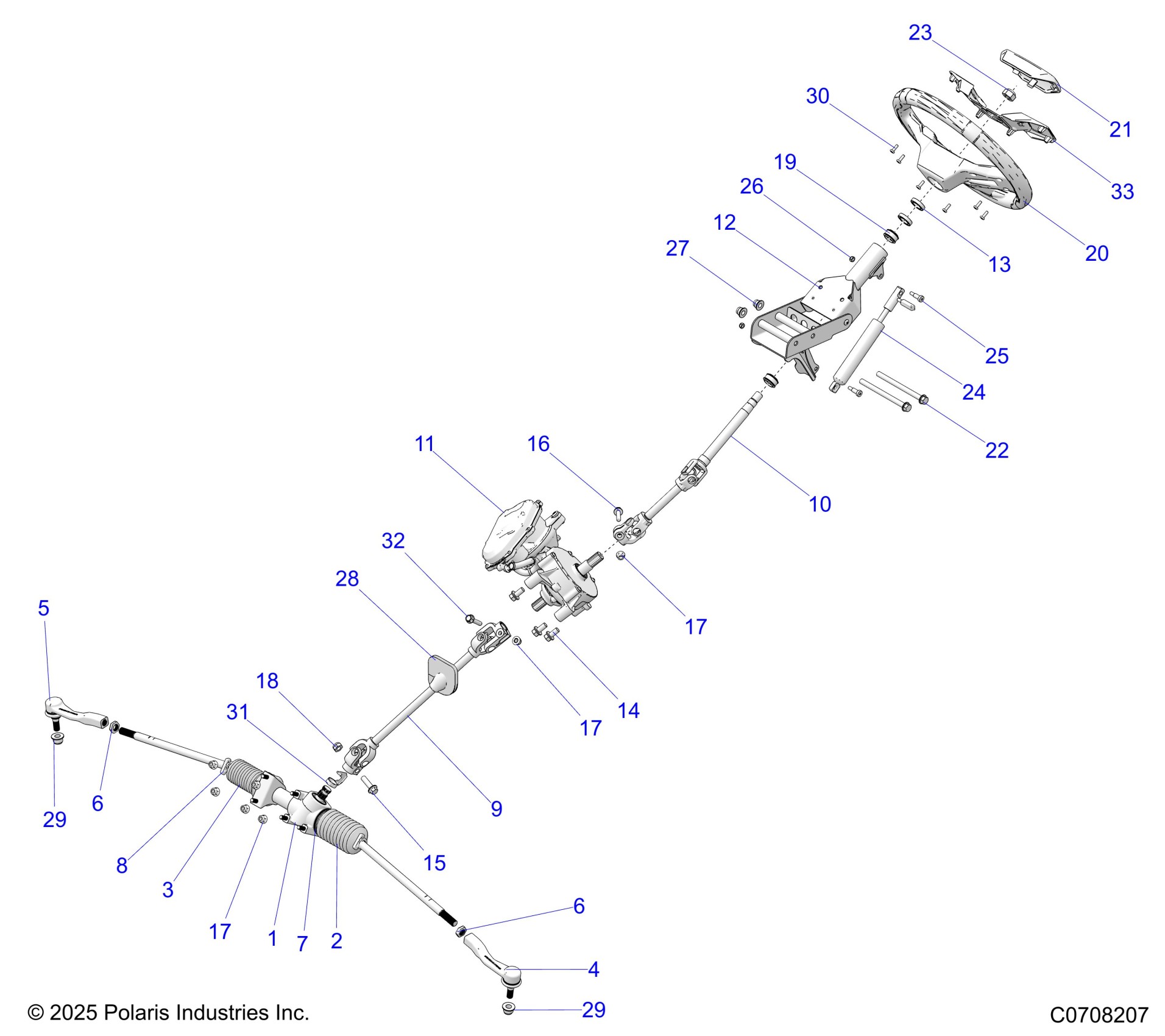

Polaris GENERAL 1000 SPORT (R01) - G26GAE99A4 STEERING, STEERING ASM. Diagram

#

Description
Price

1

ASM-GEAR BOX, STEERING [INCLUDES 2-8]

1824769

$497.19

2

BOOT, DRIVERS SIDE, RACK

5412012

$59.99

3

BOOT, PASSENGER, SIDE RACK

5412013

$55.99

4

ROD-END,TAPERED,RH

7061216

$79.99

5

ROD-END,TAPERED,LH

7061215

$79.99

6

NUT, JAM, LH THREAD

2205058

$23.99

6

NUT, JAM, LH THREAD

2205058

$23.99

7

CLAMP, LARGE, BELLOWS

7080979

$5.59

8

BELLOWS CLAMP, SMALL

7082150

$6.39

9

SHAFT-STEERING LWR,EPS

1824912

$135.99

10

SHAFT-STEERING,UPPER

1824752

$147.99

11

EPAS-PGM,RZR,1.5T,PROXP

2417056

$1,825.99

12

ASM-TILT,STEERING,RVTD,M10,BLK [INCLUDES 13]

1824420-458

$143.99

13

BEARING-STEERING

3514686

$9.59

14

BOLT-M10X1.25X20,HXFLG-OLV D

7518558

$3.99

15

SCR-HXFL-M10X1.5X35 8.8 ZPC

7518644

$4.79

16

SCR-HXFL-M8X1.25X35 8.8 ZODv

7519052

$1.59

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT-NY INS,M10X1.5,HEX,ZINC,YW

7547385

$1.49

19

BUSHING-STEERING

7556675

$14.95

20

WHEEL-STEERING

1824996

$87.99

21

CAP-STEERING WHEEL,BASE,BLK

5456866-070

$13.59

22

BOLT-M10X1.25X130,HXFLG-OLIVED

7518665

$13.59

23

NUT-HEX-M16X2, 8 ZC NYL

7547506

$4.39

24

ASM-SHOCK,OIL LOCKING,MACH

7044098

$95.99

25

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.19

26

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

27

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

28

GROMMET-STEERING

5415579

$8.79

29

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

29

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

30

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

31

EPS SHAFT ASSEMBLY SLEEVE

5454206

$6.39

32

SCR-M8X1.25X40 10.9 HX/FL ZOD �

7518954

$5.59

33

TRIM-STEERING WHEEL,BLK

5458914-070

$19.99
