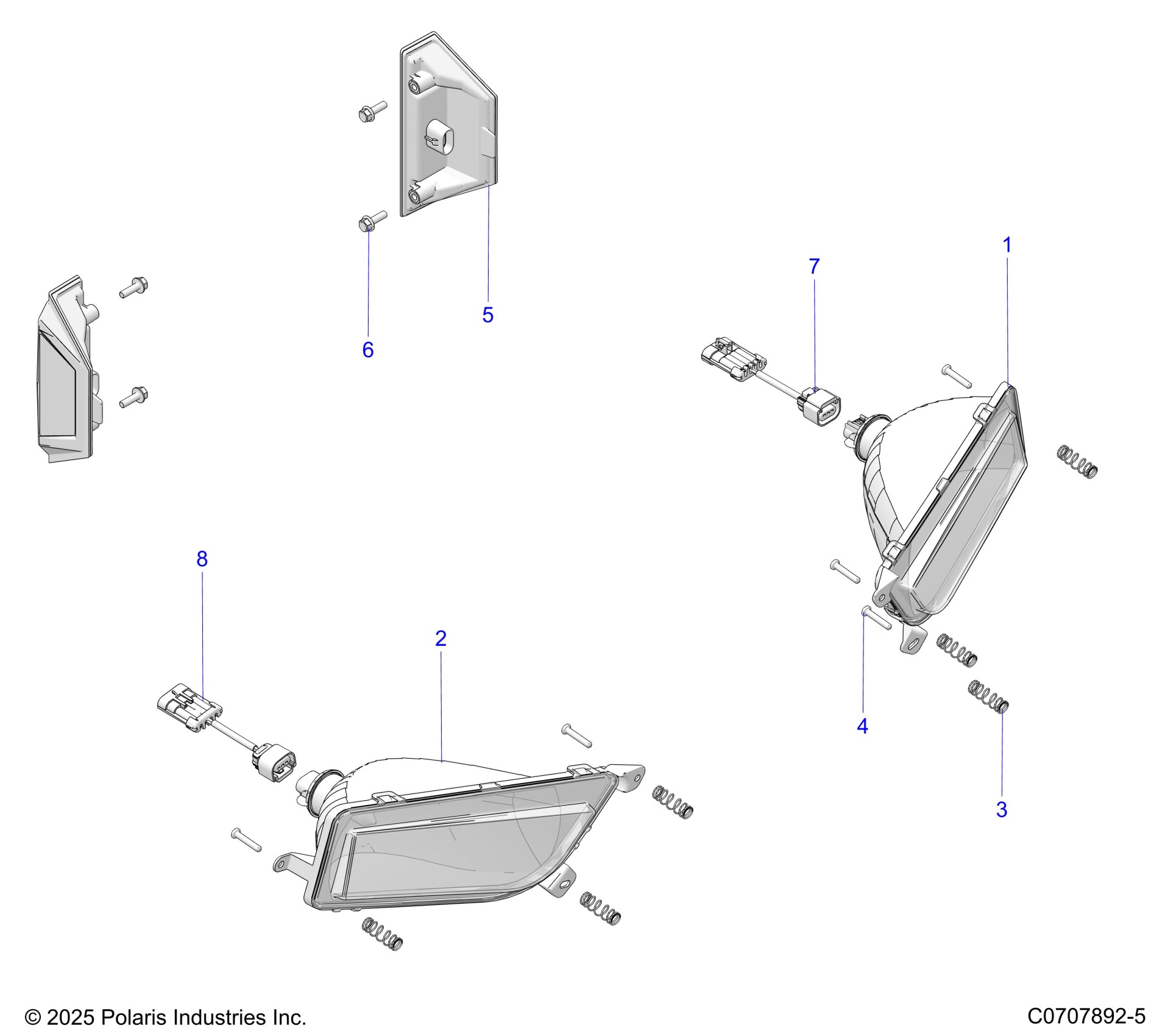

Polaris GENERAL 1000 SPORT (R01) - G26GAE99A4 ELECTRICAL, HEADLIGHTS AND TAILLIGHTS Diagram

#

Description

Price

-

BULB-H13-12V,50W,HI/LO HAL [SERVICE BULB FOR 2412333/334]

4012279

$54.99

1

ASM., HEADLIGHT, BUMPER, LH

2412333

$166.24

2

ASM., HEADLIGHT, BUMPER, RH

2412334

$166.24

3

SPRING,HEADLIGHT

7043816

$6.64

4

SCR-10X1.12 TX PN PLS-Y

7512078

$1.19

5

ASM-TAILLIGHT,W/DECAL

2412774

$80.94

5

DECAL, REFLECTOR, RED [REFLECTOR ONLY]

7179088

$36.41

6

SCR-HXFL-M6X1.0X20 8.8 RIE

7519121

$3.97

7

HARNESS-HEADLIGHT,LH

2414914

$36.41

8

HARNESS-HEADLIGHT,RH

2414915

$36.41
