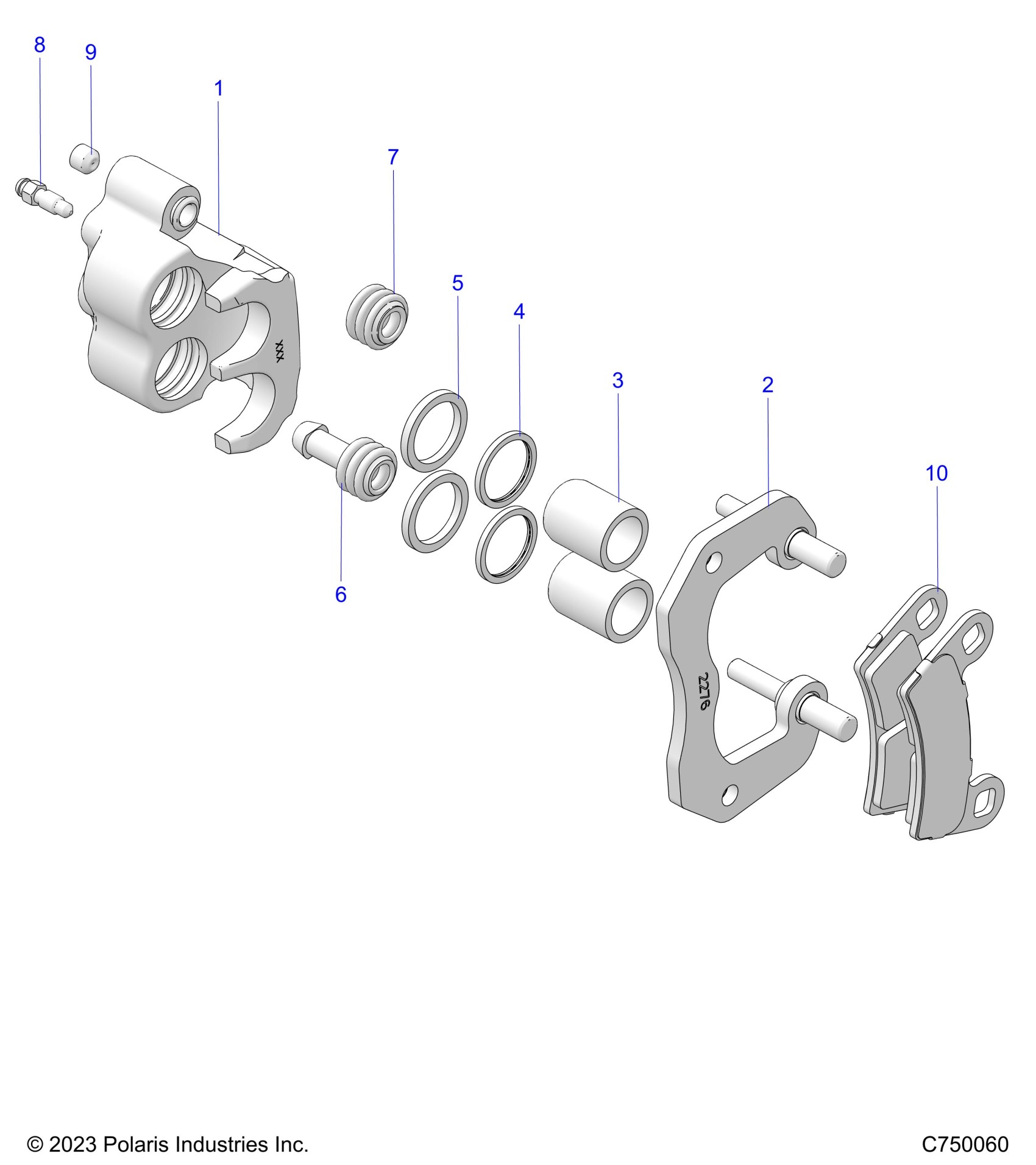

Polaris GENERAL 1000 SPORT (R01) - G25GAE99A4 BRAKES, REAR CALIPER - G25GAE99 (C1912787) Diagram

#

Description

Price

1

ASM-CLPR,DB1.0,LH [INCLUDES ALL]

1912786

$308.74

1

ASM-CLPR,DB1.0,RH [INCLUDES ALL]

1912787

$329.19

2

ASM-CALIPER MNT,DB,3.0",APX

1912276

$42.74

3

PISTON, BRAKE, LONG

5134941

$36.41

4

SQUARE RING-MOLDED (.134)

5410766

$12.13

5

RING, SQUARE,(1''DIAM.) Substituted by 2200463

5410767

$97.76

6

BOOT-PIN BUSHING

5412505

$3.22

7

BOOT-PIN SEAL

5412506

$3.22

8

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.56

9

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.52

10

KIT-BRAKE PAD,DUAL BORE [INCLUDES 2 PADS]

2203318

$57.13

10

K-BRAKE,HD,PAD,DB1" [OPTION] [2 PADS PER KIT]

2208936

$28.56
