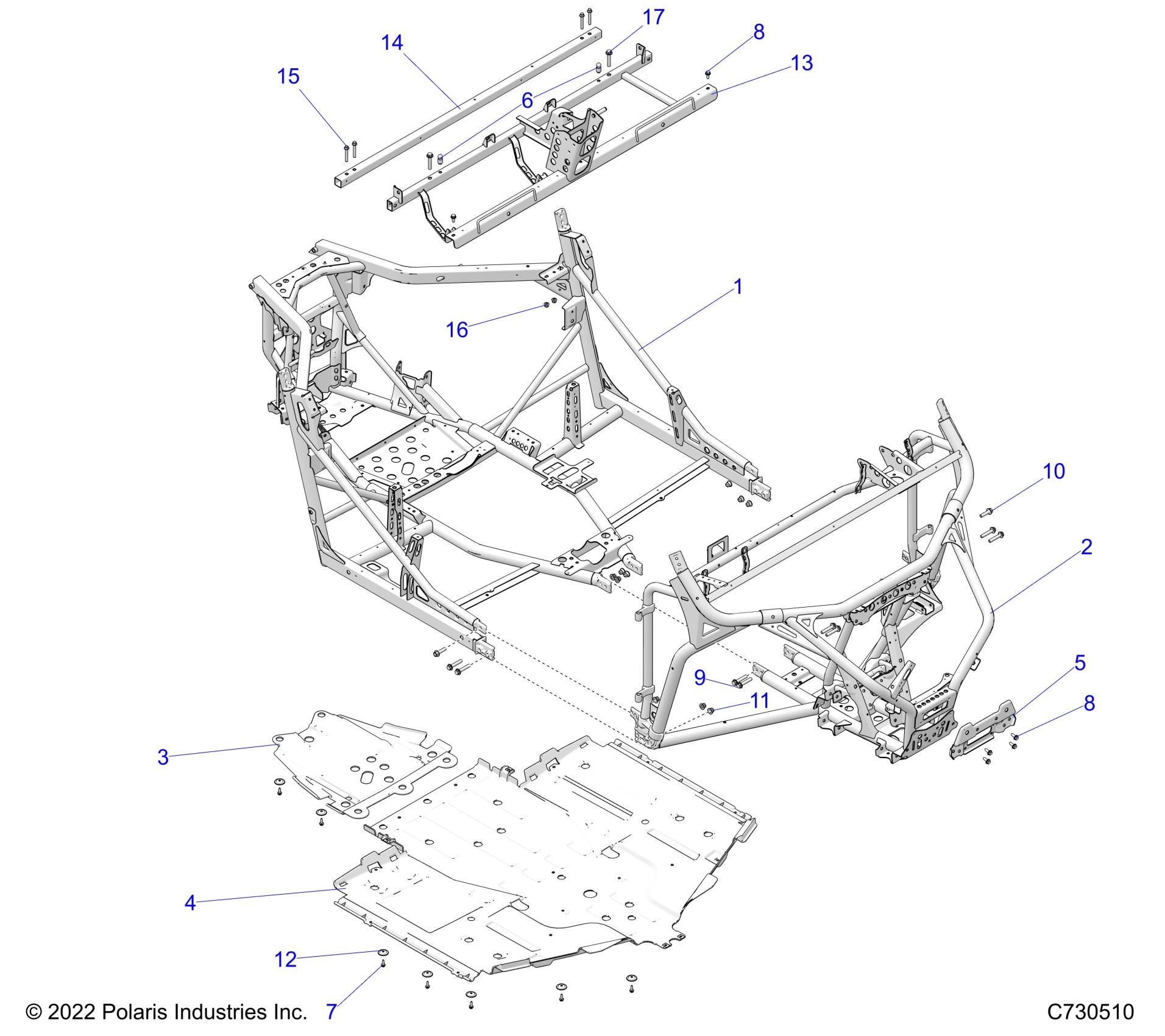

Polaris GENERAL 1000 SPORT (R01) - G23GAE99A2 CHASSIS, MAIN FRAME AND SKID PLATES - G23GAE99A2 (C730510) Diagram

WELD-MAIN FRAME,BLK

1024119-458

$1,971.19

WELD-FRAME,FRONT,2 PC,BLK

1024255-458

$1,781.99

PLATE-SKID,REAR,BLK

5456433-070

$175.99

PLATE-SKID,BLK

5452060-070

$131.99

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

LATCH, PLUNGER, SEAT

5632848

$13.59

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-SKID PLATE

7556065

$4.79

WELD-SEAT BASE,E-COAT

1021254-329

$319.99

ASM-TUBE,TOP FRAME

1029761

$87.99

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79
