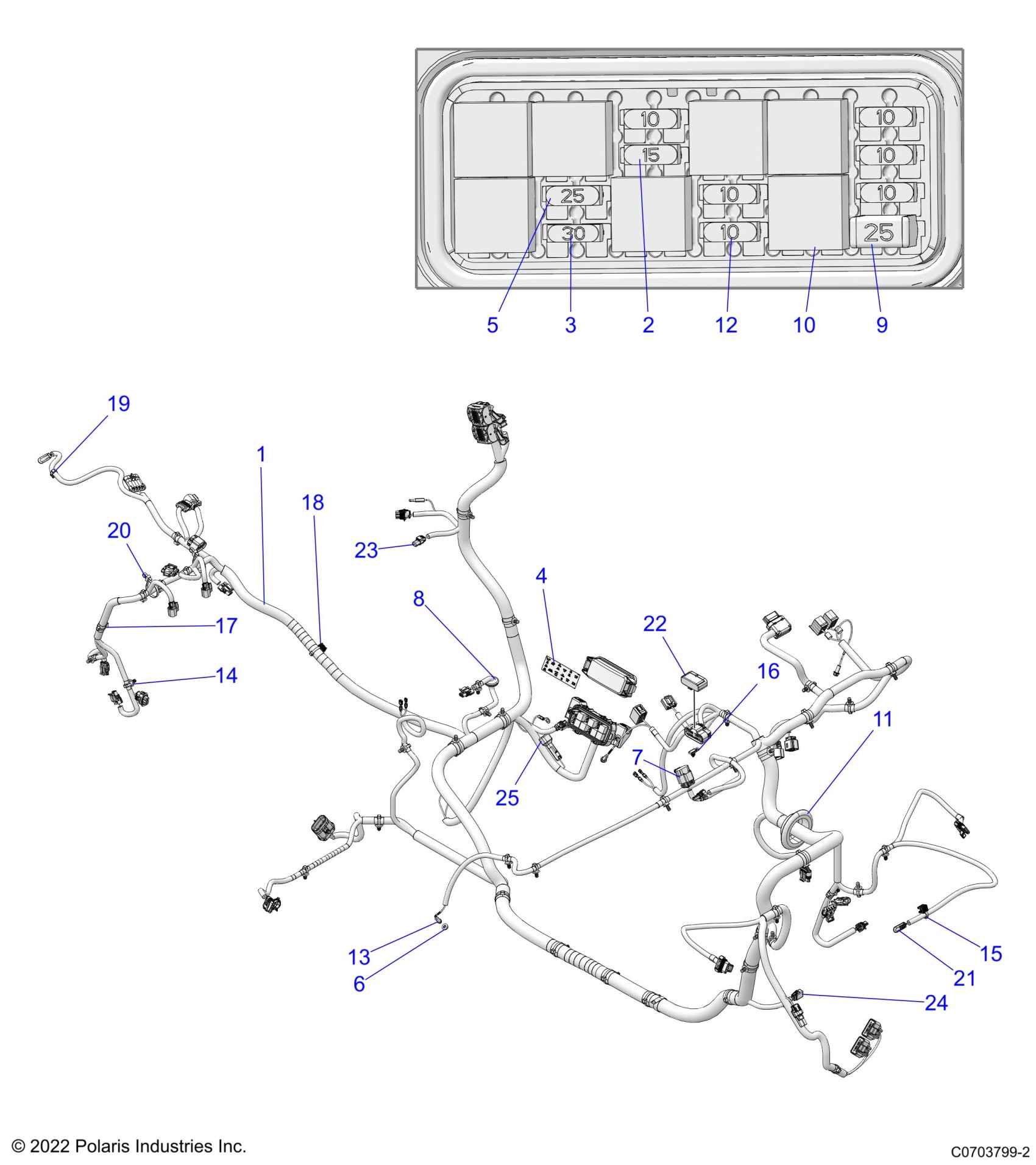

Polaris GENERAL 1000 SPORT EPS (R02) - G22GAE99A4 ELECTRICAL, WIRE HARNESSES, CHASSIS - G22GAE99A4 (C0703799-2) Diagram

HARNESS-CHASSIS [INCL. ALL]

2414814

$1,599.99

FUSE-15AMP,MINI BLADE �

4010859

$8.08

FUSE- 30 MINI BLADE 58V (GREEN) �

4013561

$7.98

LABEL, FUSE BOX �

7190832

Unavailable

FUSE-25A,MINI BLADE �

4011653

$8.89

CLIP - ROUTING, DIN BOX �

7082020

$5.56

COVER-DIAGNOSTIC,W/CLIP �

4012170

$8.89

GROMMET - USB, 3 MM, 22 MM DIA �

5415308

$3.97

BRAEAKER, CIRCUIT, 25 AMP �

4015771

$68.79

RELAY-SPST,12V,20A,EPXY,HFA �

4016819

$36.41

GROMMET - 65 MM, BLK �

5813954

$8.99

FUSE-IGNITION,10 AMP �

2434016

$5.65

LED - PANEL MNT, 12V, BLUE �

2413217

$52.60

CLIP FIR-TREE,DIA6-33MM �

7081496

Unavailable

CLIP-EDGE, 3-6MM THICKNESS �

7082404

$9.52

CLIP-FIR,HOLE6.35MM �

7082134

$3.97

CABLE-TIE,DIA2.5-34MM,FIR-TREE �

7082003

$3.22

CLIP, EDGE, SIDE, W/STRAP �

7081876

$7.94

CLIP-EDGE,1-3MM,6-45MM,SERT. �

7081808

$5.65

CABLE-TIE,7-46MM,DUAL-LOOP �

7081033

$4.03

CAP - VINYL, 125X375, BLACK �

5438230

$5.65

CAP-EVAP CONNECTOR �

4018655

$4.03

CAP EVAP CONNECTOR �

4018066

$4.03

CONNECTOR-CAP, WINCH SWITCH �

4014890

$10.65

DIODE - 6 AMP, 1/4, 3/16 TERM �

2410000

$40.46
