Description

Price

1

PANEL-DOOR,OUT,FRT,LH, G.GREY

5458683-728

Unavailable

2

PANEL-DOOR,OUT,FRT,RH,G.GREY

5458684-728

Unavailable

3

ASM-HANDLE,DOOR,ALUM,LH,OUT

7082353

$27.99

4

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

5

CLIP-U SPEED NUT

7081305

$1.99

6

FRAME-DOOR,CAST,LH

5639586

$151.99

6

FRAME-DOOR,CAST,RH

5639587

$151.99

7

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

8

BRKT-DOOR HDL,LATCH,MNT,LH,BLK

5264583-458

$27.99

8

BRKT-DOOR HDL,LATCH,MNT,RH,BLK

5264584-458

$27.99

9

CABLE-DOOR,FRONT

7082357

Unavailable

10

ASM-LATCH,RTRY,2 STAGE,LH

7082459

$47.99

10

ASM-LATCH,RTRY,2 STAGE,RH

7082460

$47.99

11

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

12

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

13

ASM-WELD,DUAL CBL RET,LH,ECOAT

1023916-329

Unavailable

13

ASM-WELD,DUAL CBL RET,RH,ECOAT

1023917-329

Unavailable

14

ASM-HANDLE,DOOR INNER

7082216

$39.99

15

PANEL-DOOR,INNER,FRONT,LH,BLK

5454346-070

$131.99

16

PANEL-DOOR,INNER,FRONT,RH,BLK

5454347-070

$131.99

17

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

18

COVER-DOOR HINGE MOUNT

5452517-070

$5.59

19

HINGE-DOOR CAST,BLK

5633642-329

$39.99

20

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

21

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

22

SEAL-DOOR

5455610

$55.99

23

BRKT-CBL RET,90 DEG,ECOAT

5265518-329

$31.99

24

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

25

BRKT-DOOR CLAMP ECOAT

5262743-329

$11.19

26

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

27

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.99

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

SCR-SH-M6X1.0X50 8.8 RIE

7520482

$3.99

30

TRIM-DOOR,INNER,LH,BLK

5452290-070

$27.99

31

TRIM-DOOR,INNER,RH,BLK

5452291-070

$27.99

32

NUT-M6 FLANGE,NYLOC

7547274

$1.49

33

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

34

ASM-HANDLE,DOOR,ALUM,RH,OUT

7082354

$27.99

35

CLIP-DOOR LATCH

5454637

$4.99

36

RETAINER-CABLE, STEEL

7710921

$3.19

37

DOOR-GRAB HANDLE,RH,BLK

5452904-070

$31.99

37

DOOR-GRAB HANDLE,RH,BLK

5452904-070

$31.99

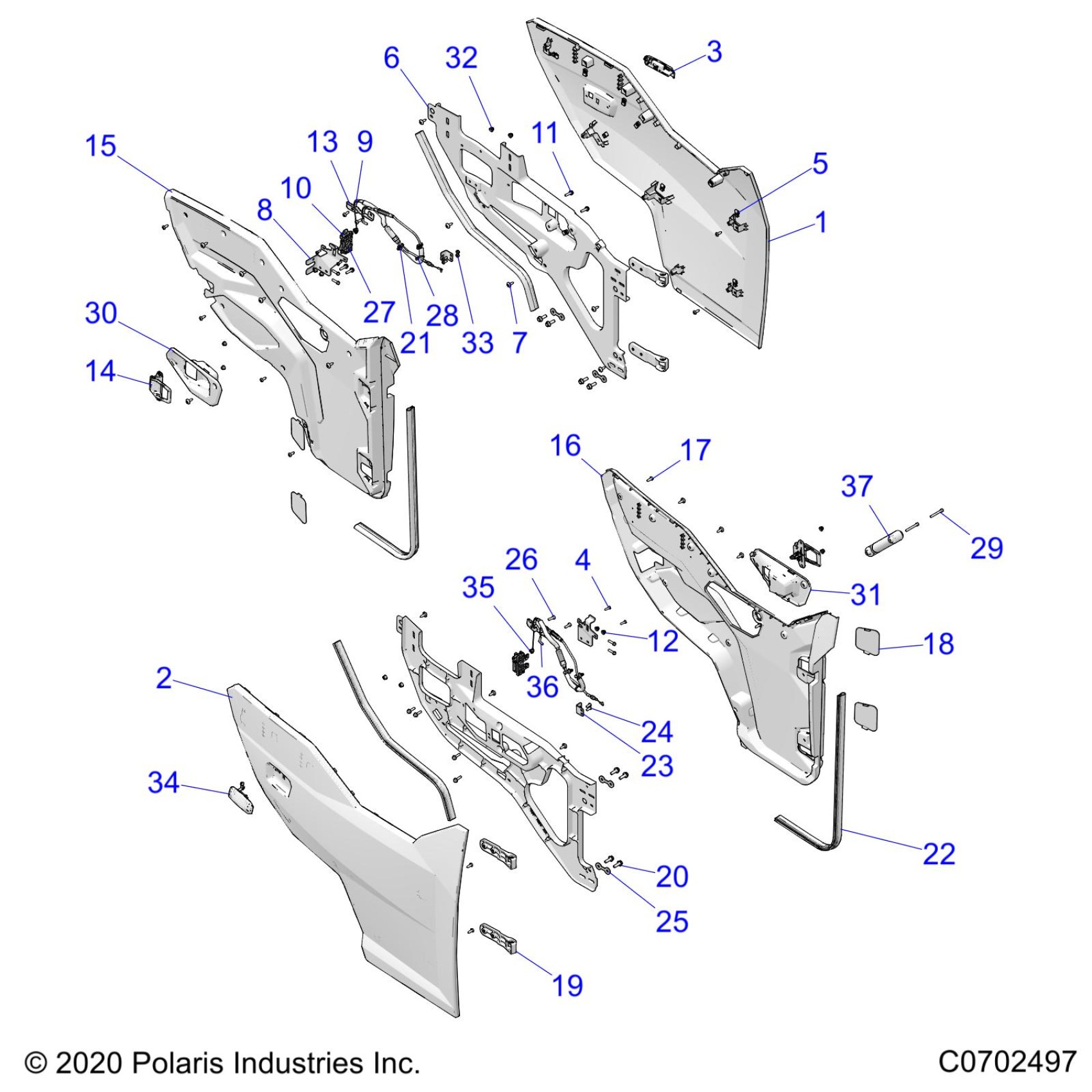

Polaris GENERAL 1000 SPORT EPS (R02) - G22GAE99A4 BODY, DOORS - G22GAE99A4 (C0702497) Diagram

PANEL-DOOR,OUT,FRT,LH, G.GREY

PANEL-DOOR,OUT,FRT,RH,G.GREY

ASM-HANDLE,DOOR,ALUM,LH,OUT

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

CLIP-U SPEED NUT

FRAME-DOOR,CAST,LH

FRAME-DOOR,CAST,RH

SCREW-TXTH-M6X1.0X20 T40 ZPB

BRKT-DOOR HDL,LATCH,MNT,LH,BLK

BRKT-DOOR HDL,LATCH,MNT,RH,BLK

CABLE-DOOR,FRONT

ASM-LATCH,RTRY,2 STAGE,LH

ASM-LATCH,RTRY,2 STAGE,RH

SCREW-HXFL-M6X1.0X20 8.8 ZY3

NUT-HXFL-M6X1.0 8 ZB3 NYL

ASM-WELD,DUAL CBL RET,LH,ECOAT

ASM-WELD,DUAL CBL RET,RH,ECOAT

ASM-HANDLE,DOOR INNER

PANEL-DOOR,INNER,FRONT,LH,BLK

PANEL-DOOR,INNER,FRONT,RH,BLK

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

COVER-DOOR HINGE MOUNT

HINGE-DOOR CAST,BLK

BOLT-M8X1.25X25,HXFLG-OLIVE D

CLIP FIR-TREE,DIA6-33MM

SEAL-DOOR

BRKT-CBL RET,90 DEG,ECOAT

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

BRKT-DOOR CLAMP ECOAT

SCR-M6X1.0X20MM,TX,PH,8.8-B

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

CABLE-TIE,DIA12-50MM,WTHR-RES.

SCR-SH-M6X1.0X50 8.8 RIE

TRIM-DOOR,INNER,LH,BLK

TRIM-DOOR,INNER,RH,BLK

NUT-M6 FLANGE,NYLOC

NUT-6MM X 1 NYLOK-Z

ASM-HANDLE,DOOR,ALUM,RH,OUT

CLIP-DOOR LATCH

RETAINER-CABLE, STEEL

DOOR-GRAB HANDLE,RH,BLK

DOOR-GRAB HANDLE,RH,BLK
