- GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN
SUSPENSION, REAR CARRIER

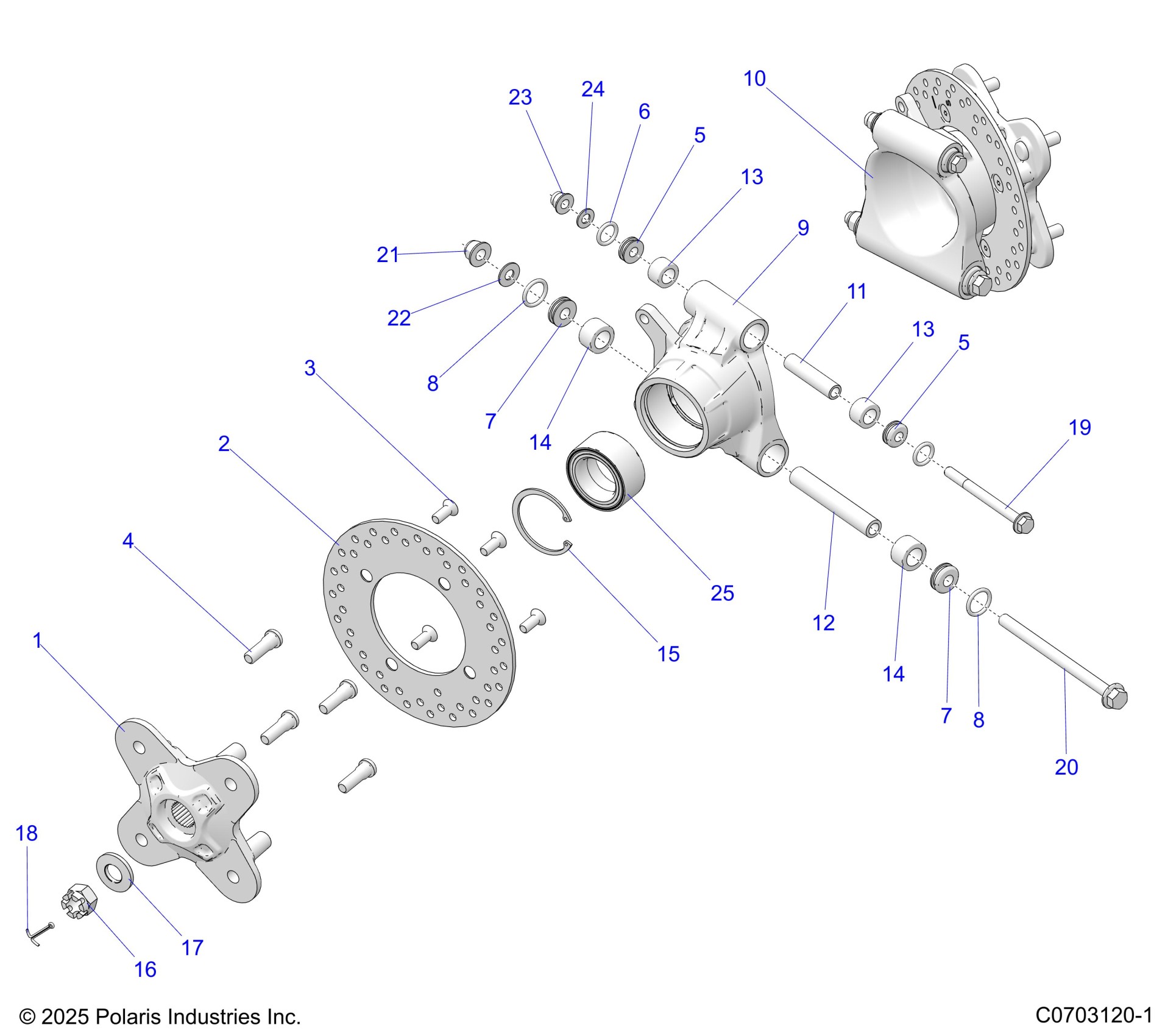

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN SUSPENSION, REAR CARRIER Diagram
#
Description
Price
1
HUB-WHEEL,MACH,BLK
5142019-458
Unavailable
2
ROTOR,BRAKE
5263266
$67.99
3
SCR-M10X1.5X20 8.8 TXCS FL ZOD
7518978
$3.99
4
STUD-WHEEL,M12-1.5
7519753
$4.79
5
ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]
1543611
$5.59
5
CAP-PIVOT SEAL,M10
5139968
$4.79
5
ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]
1543611
$5.59
5
CAP-PIVOT SEAL,M10
5139968
$4.79
6
O-RING,2-210
5415653
$1.49
7
ASM-PIVOT CAP, SEALED, M12 [INCLUDES CAP & O-RING]
1543612
$5.59
7
CAP-PIVOT SEAL,M12
5139992
$3.99
7
ASM-PIVOT CAP, SEALED, M12 [INCLUDES CAP & O-RING]
1543612
$5.59
7
CAP-PIVOT SEAL,M12
5139992
$3.99
8
O-RING,2-213
5415654
$1.49
8
O-RING,2-213
5415654
$1.49
9
CARRIER, BEARING, WHEEL, LH
5139979
$99.99
10
CARRIER, BEARING, WHEEL, RH
5139980
$99.99
11
SHAFT-PIVOT, SHORT, M10
5139990
$5.59
12
SHAFT-PIVOT, LONG, M12
5139991
$8.79
13
BUSHING-STANDARD, SUSP, M10
5452233
$2.39
13
BUSHING-STANDARD, SUSP, M10
5452233
$2.39
14
BUSHING-STANDARD, SUSP, M12
5452271
$3.19
14
BUSHING-STANDARD, SUSP, M12
5452271
$3.19
15
RING-RETAINING,2.875,INTERNAL
7710440
$10.39
16
NUT-M18X1.5,CASTLE,ZINC/YELLOW
7547337
$1.99
17
WSHR-AXLE,M18,42X4.5
7557134
$7.99
18
PIN-COTTER 1/8X1 1/2-Y
7661404
$4.79
19
SCR-HXFL-M10X1.25X115 10.9 ZOD
7519365
$13.59
20
SCR-HXFL-M12X1.5X170 10.9 ZOD
7520294
$11.19
21
NUT-M12X1.5, FLG, NYLOC-OLIVE D
7547334
$4.79
22
WASHER-7/16 SAE,STF,THRU-HRD-Y
7556212
$8.79
23
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
24
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
25
BEARING-BALL,SEALED,44X72X33.1
3514924
$39.99
25
BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]
3515090
$63.99
