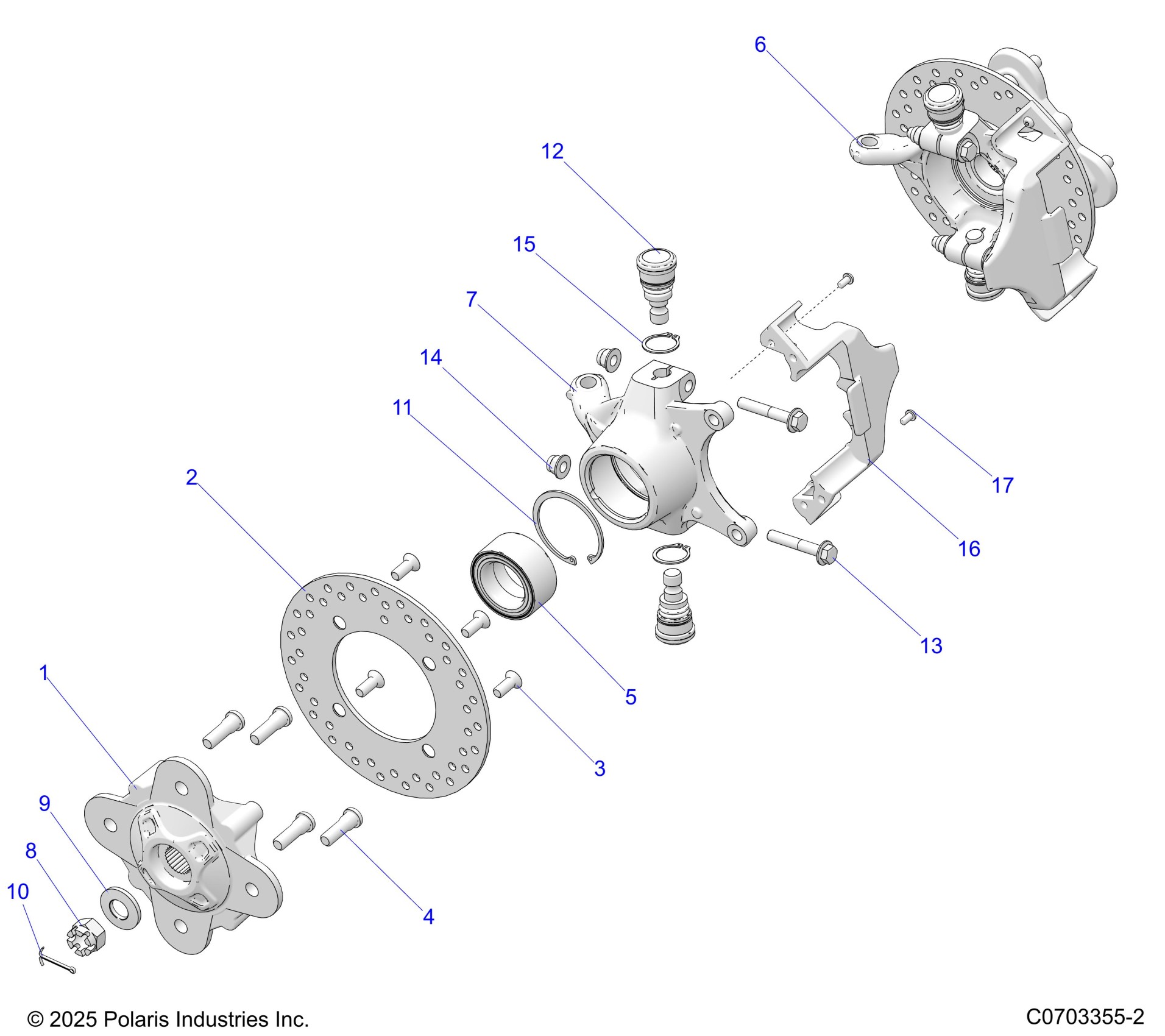

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN SUSPENSION, FRONT HUB Diagram

HUB-WHEEL,MACH,BLK

5142019-458

Unavailable

ROTOR,BRAKE

5263266

$67.99

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.99

STUD-WHEEL,M12-1.5

7519753

$4.79

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

CARRIER-BEARING,WHEEL,LH(MACH)

5143615

$87.99

CARRIER-BEARING,WHEEL,RH(MACH)

5143616

$87.99

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

WSHR-AXLE,M18,42X4.5

7557134

$7.99

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

RING-RETAINING,2.835,INTERNAL

7710780

$9.59

BALL-JOINT,10MM STUD

7082507

$47.99

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

SHIELD, CV, FRONT, BLACK

5452041-070

$12.79

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99
