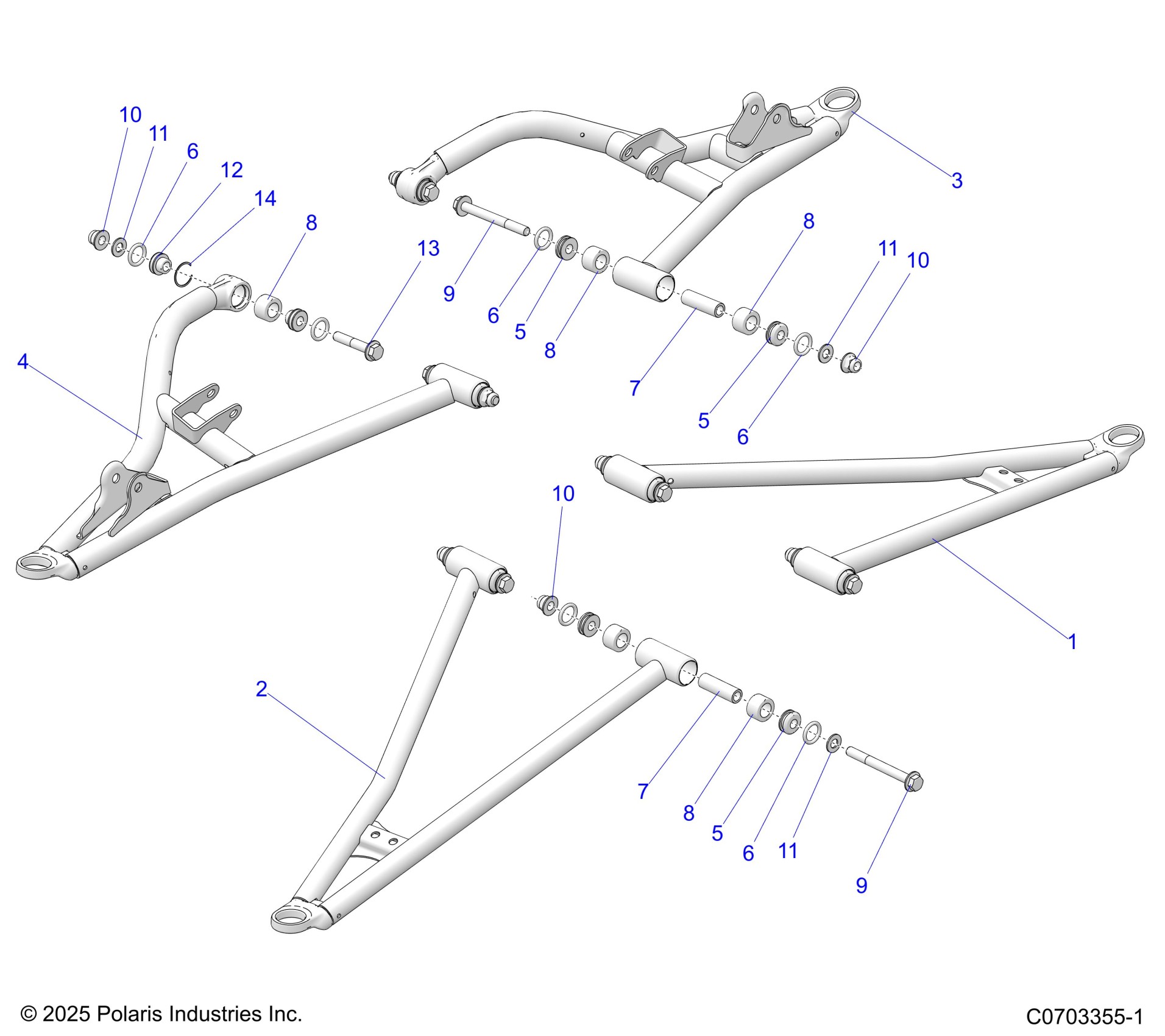

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN SUSPENSION, FRONT CONTROL ARMS Diagram

#

Description
Price

1

WELD-CTRL ARM,LWR,FRT,LH,60,BL

1021416-458

$154.90

2

WELD-CTRL ARM,LWR,FRT,RH,60,BL

1021417-458

$154.90

3

WELD-CTRL ARM,UPR,FRT,LH,60,BK

1023223-458

$237.21

4

WELD-CTRL ARM,UPR,FRT,RH,60,BK

1023224-458

$237.21

5

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.65

5

CAP-PIVOT SEAL,M10

5139968

$4.84

5

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.65

5

CAP-PIVOT SEAL,M10

5139968

$4.84

5

ASM-PIVOT CAP, SEALED, M10 [INCLUDES CAP & O-RING]

1543611

$5.65

5

CAP-PIVOT SEAL,M10

5139968

$4.84

6

O-RING,2-210

5415653

$1.21

6

O-RING,2-210

5415653

$1.21

6

O-RING,2-210

5415653

$1.21

6

O-RING,2-210

5415653

$1.21

7

SHAFT-PIVOT,SHORT,M10

5144658

$5.65

7

SHAFT-PIVOT,SHORT,M10

5144658

$5.65

8

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

8

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

8

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

8

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

9

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.52

9

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.52

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

11

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

12

ASM-PIVOT CAP,SEALED,SLIM,M10 [INCLUDES CAP & O-RING]

1543735

$13.75

12

CAP-PIVOT SEAL,M10,SLIM

5140343

$13.75

13

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.38

14

28MM SPIRAL RING,STEEL

7710845

$3.63
