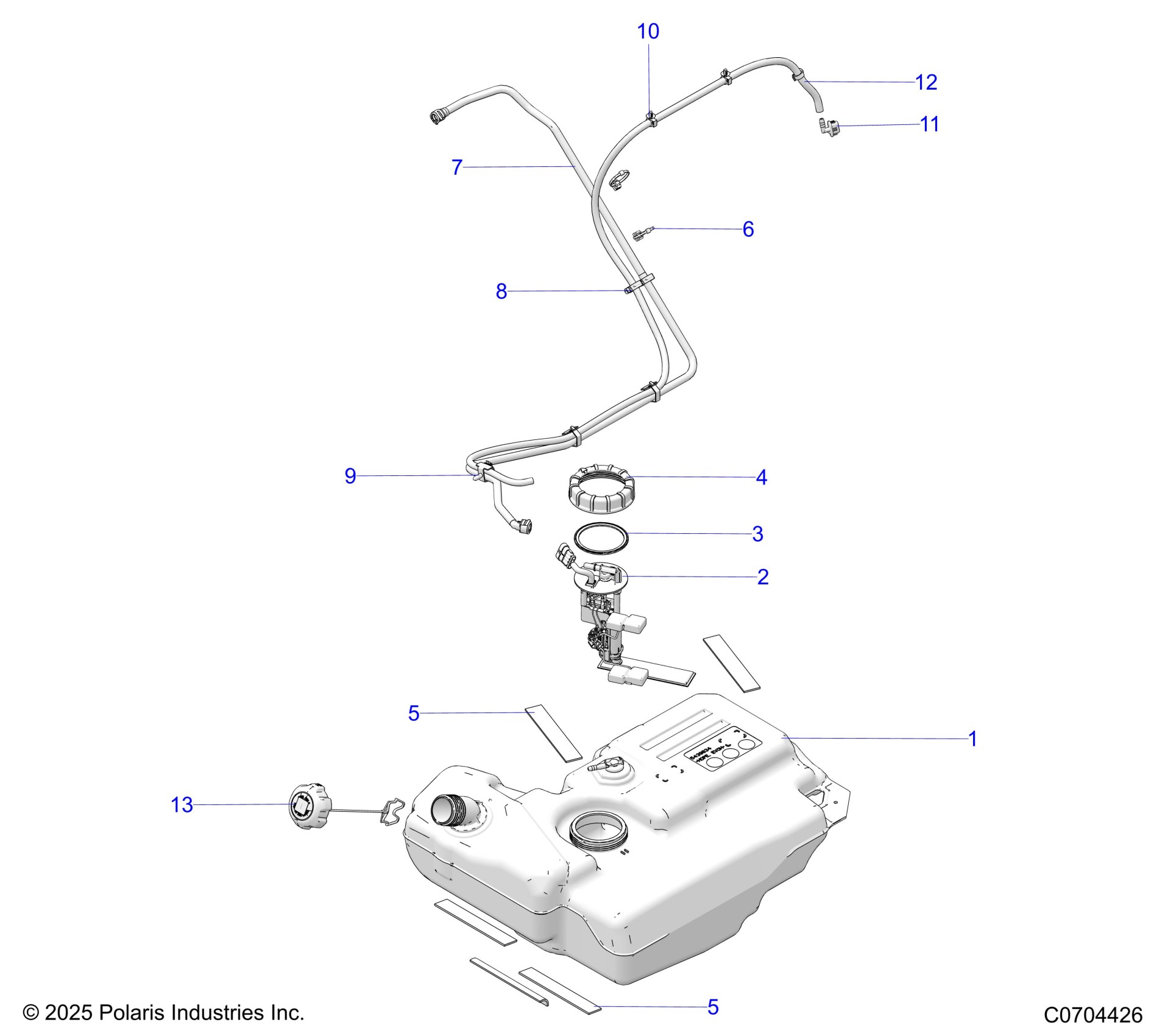

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN FUEL, FUEL SYSTEM Diagram

#

Description

Price

1

ASM-FUEL TANK [INCLUDES 1-5]

2635760

$1,149.99

1

ASM-FUEL TANK,1000S [INCLUDES 2-4]

2522759

$1,149.99

2

KIT, FUEL PUMP [INCLUDES 3 & 4]

2206278

$439.99

3

GASKET-PFA,RIBBED

5413451

$12.13

4

NUT-MASON JAR

5437138

$35.71

5

PAD-BATTERY

5810290

$7.27

5

PAD-BATTERY

5810290

$7.27

6

CLIP-EDGE,1-3MM THICKNESS

7082401

$8.99

7

ASM-FUEL LINE

2521801

$87.13

8

CLIP-HARNESS 3-13MM INTERLCK

7081871

$3.97

9

CLIP, ROUTING

7670109

$2.38

10

CLIP, ROUTING, .472 B.D., HINGED

7670116

$5.56

11

FITTING-VENT LINE,90

5453464

$5.56

12

FUEL LINE 1/4"SAE,185CM

8450040-185

$48.56

13

CAP-GAS TANK,TETHER,8.5

2521942

$36.41
