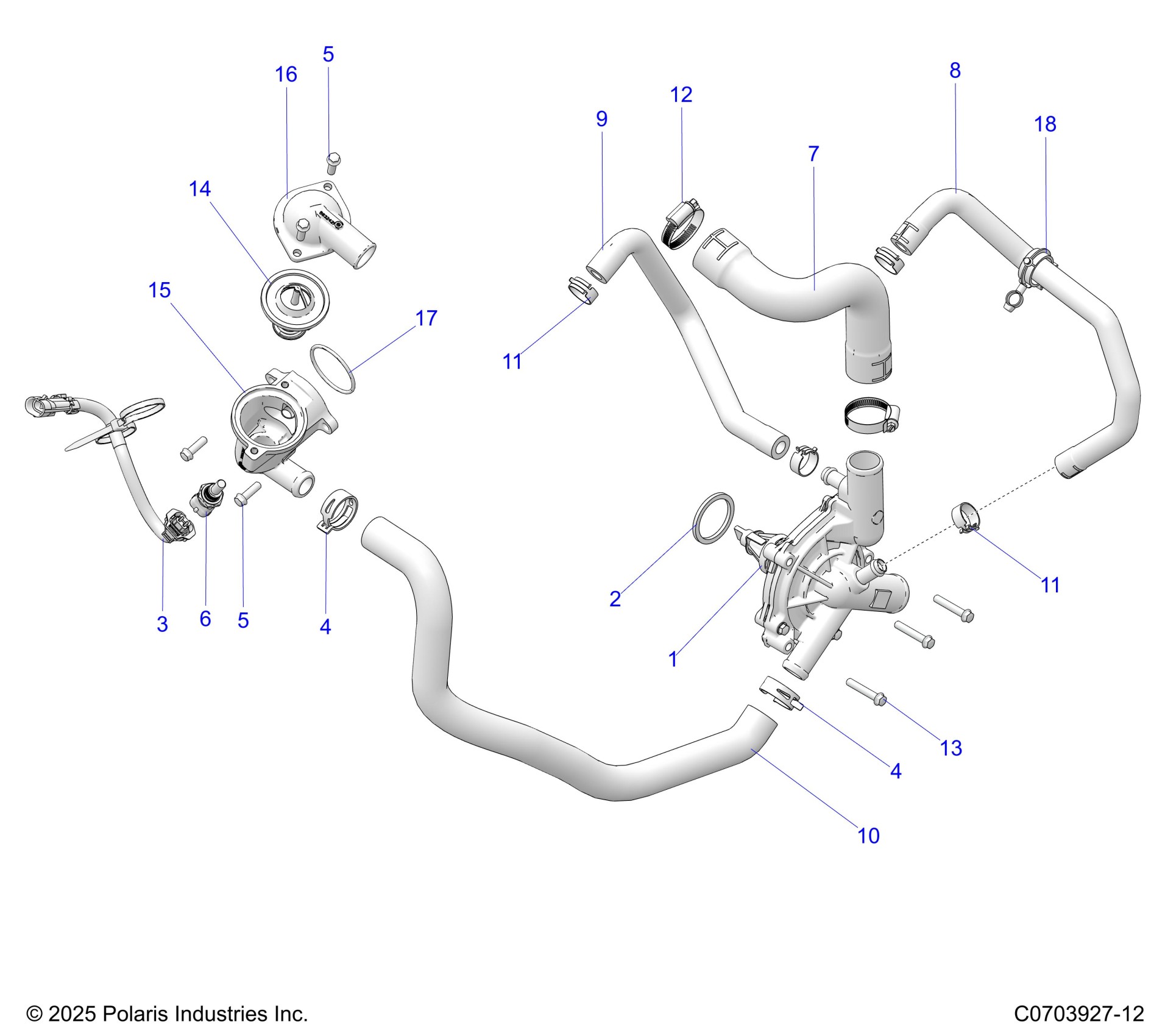

Polaris GENERAL 1000 PREMIUM (R01) - G26GAP99AN/BN ENGINE, WATERPUMP AND BYPASS Diagram

#

Description
Price

1

ASM, WATERPUMP [FOR INTERNAL PARTS SEE ENGINE, WATERPUMP ASSEMBLY]

1205014

$232.74

2

FILTER-WP

5814207

$2.38

3

WIRE, THERMISTER LEAD

4014319

$94.99

4

CLAMP, SPRINGBAND

7081970

$5.56

4

CLAMP, SPRINGBAND

7081970

$5.56

5

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

5

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

6

SENSOR-THERMISTER

4010644

$91.97

7

HOSE-WATERPUMP,OUT

5416305

$64.75

8

HOSE-OIL COOLER OUT

5416752

$32.37

9

HOSE, OIL COOLER IN

5416307

$15.37

10

HOSE, BYPASS

5416629

$40.46

11

CLAMP-HOSE,SPRING .81

7081026

$7.94

11

CLAMP-HOSE,SPRING .81

7081026

$7.94

12

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

13

SCR-HXFL-M6X1.0X35, W/PATCHLOK

7519280

$4.76

14

THERMOSTAT, DOUBLE, ACTING, 1MM

7052600

$52.24

15

HOUSING-THERMOSTAT,MACH

5139853

$19.84

16

COVER, THERMOSTAT, CAST

5632421

$40.46

17

O-RING

5414591

$3.22

18

CLIP-OMEGA,CABLE/19-24.5MM DIA

7082408

$12.13
